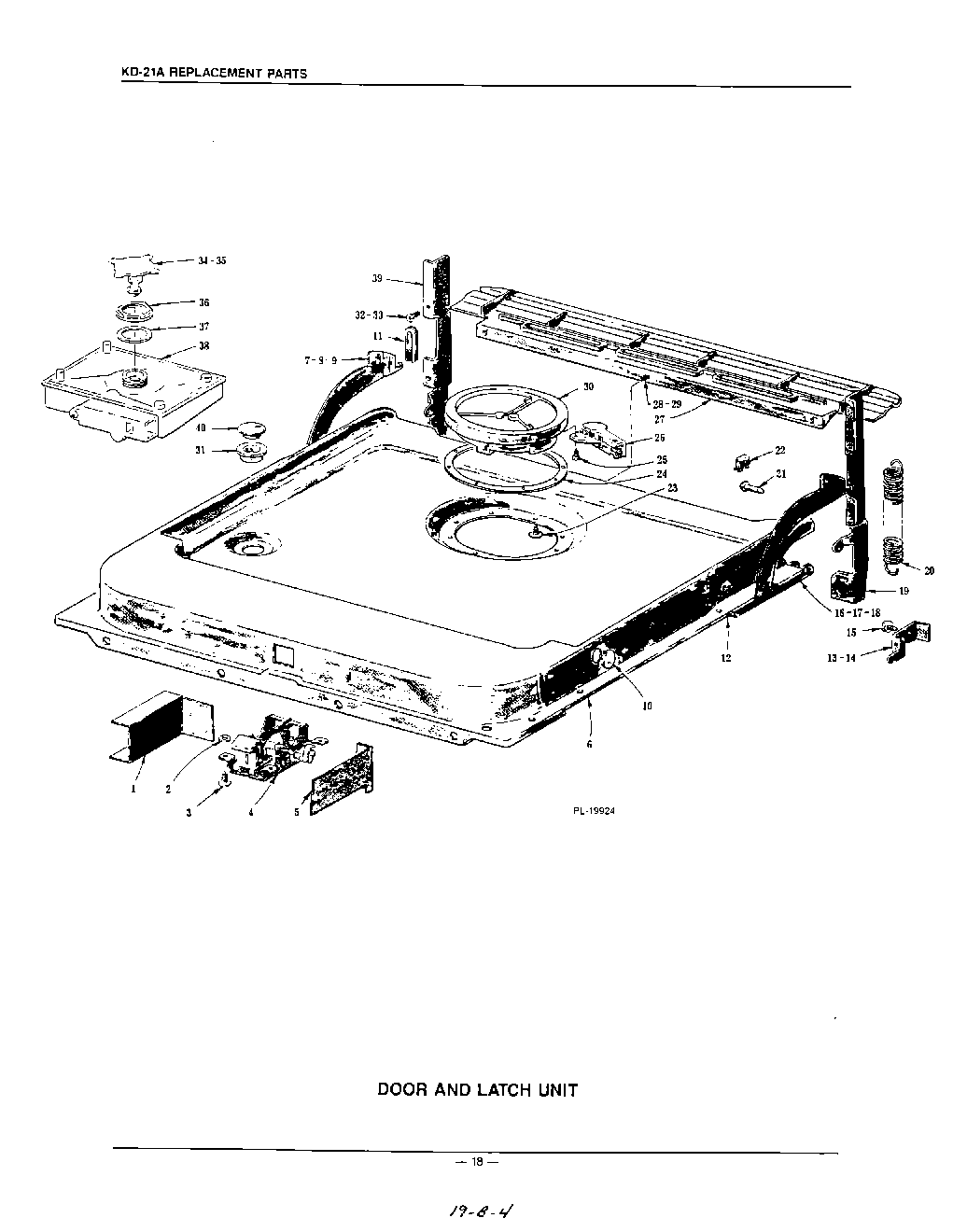

KUDB210S0 11 – DOOR AND LATCH

Products

Position	Product
1	Cover - Wiring Harness
2	Washer
3	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
4	Latch Mechanism Assy
5	Insulation - Switch
6	Inner Door Assy
9	Bracket - L.H. Door Stop
10	Plug Button
11	Bearing - Door Stop Insert
12	Vapor Shield Kit
13	Bracket - R.H. Spring Mounting
14	Bracket - L.H. Spring Mounting (Not Shown)
15	Screw & Washer Assy. 10-32 x 3/8 Phil. Hex Hd., Type AB
16	Bracket - R.H. Door Stop
17	Mach. Screw 10-32 x 5/16 Phil. Truss Hd
19	Bracket - R.H. Hinge
20	Spring - Door Co-Balance
21	Pin - Hinge
22	Clip - Hinge Pin Retaining
23	Screw & Washer Assy
24	Gasket - Detergent Dispenser
25	WPL SD1311
26	Bimetal Assy
27	Baffle - Lower
28	Self-Tapping Screw 8-18 x 1/2 Phil. Truss Hd., Type AB
29	Cap
30	Detergent Dispenser & Gasket Assy. (115 V., 60 Hz.) (Incls. item 24)
31	Gasket - Plug Button
32	Washer (Rubber)
33	Mach. Screw 10-32 x 1/2 Phil. Truss Hd., CA Pt. ``Taptite``
34	Fill Hole Plug Assy. (Incls. item 35)
35	Washer - Fill Hole Plug
36	Nut (Fill Air Gap)
37	Gasket - Rubber
38	WPL 241137
39	Divider, Complete
40	WPL 240162
40	WPL 242649
