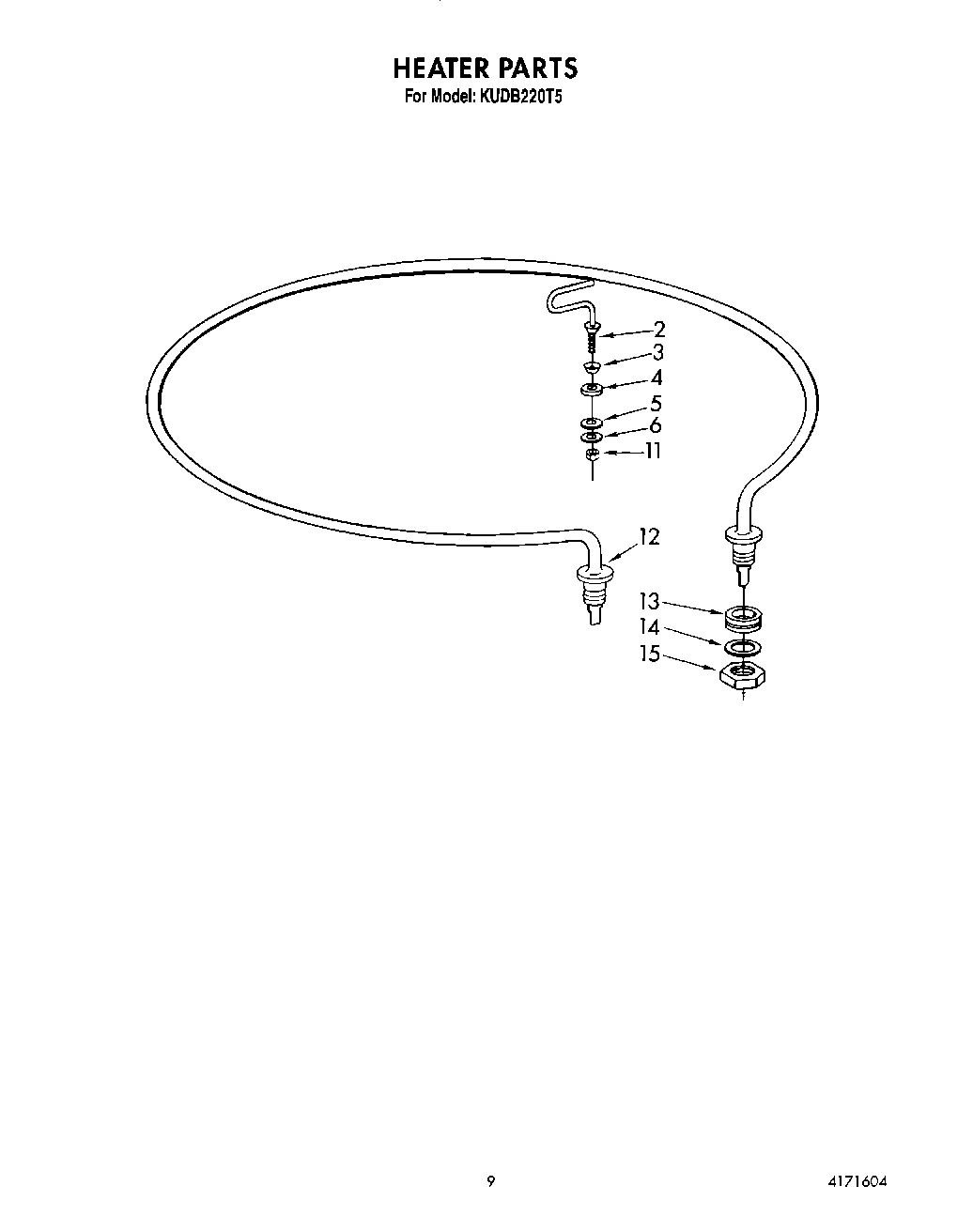

KUDB220T5 07 – HEATER
Products
| Position | Product |
|---|---|
| 2 | Hook, Heater Element |
| 3 | Washer |
| 4 | Washer, Sealing |
| 5 | Washer |
| 6 | Washer |
| 11 | Nut, Lock |
| 12 | Element, Heater |
| 13 | Grommet, Heater Element |
| 14 | Washer, Heater Element |
| 15 | Nut, Heater Element |
KUDB220T5 07 – HEATER
| Position | Product |
|---|---|
| 2 | Hook, Heater Element |
| 3 | Washer |
| 4 | Washer, Sealing |
| 5 | Washer |
| 6 | Washer |
| 11 | Nut, Lock |
| 12 | Element, Heater |
| 13 | Grommet, Heater Element |
| 14 | Washer, Heater Element |
| 15 | Nut, Heater Element |
