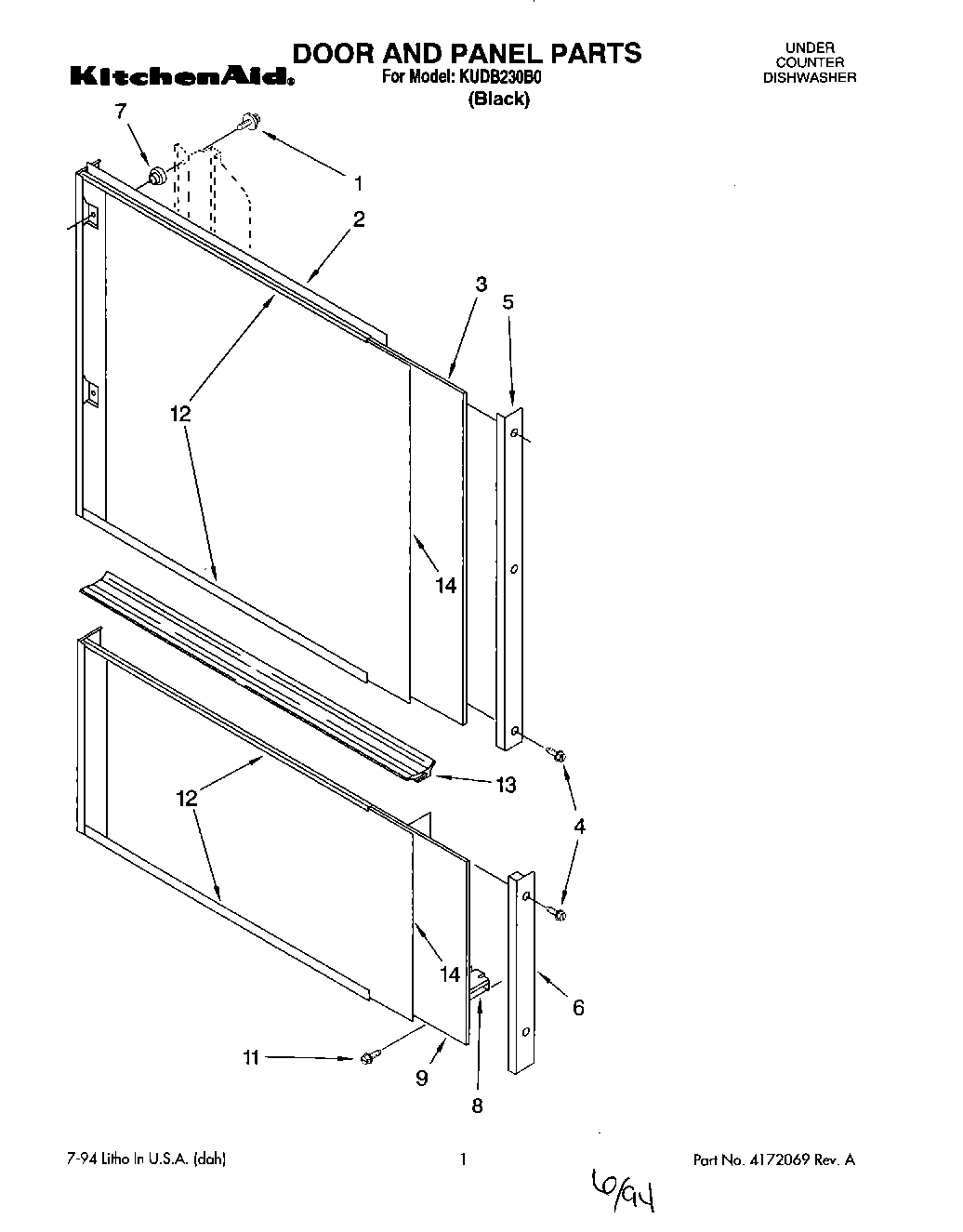

KUDB230B0 01 – DOOR AND PANELadmin2025-04-26T12:58:48+00:00KUDB230B0 01 – DOOR AND PANEL ProductsPositionProduct1Screw2Upper Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)3Filler (Upper Panel)4Screw (Black Model)5Side Trim (Upper Panel) (Black Model)6Side Trim (Lower Panel) (Black Model)7Grommet, Panel8Lower Mounting Panel Assembly (Includes Upper & Lower Trim) (Black Model)9Filler (Lower Panel)11Screw12Trim, Panel (Upper & Lower) (Black Model)13Channel, Evaporation14Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)14Panel Insert Kits (OPTIONAL KITS) (Almond/White)14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Almond)14Panel Insert Kits (White/Black)14Panel Insert Kits (OPTIONAL KITS) (Fresh Avocado/ Coffee)
