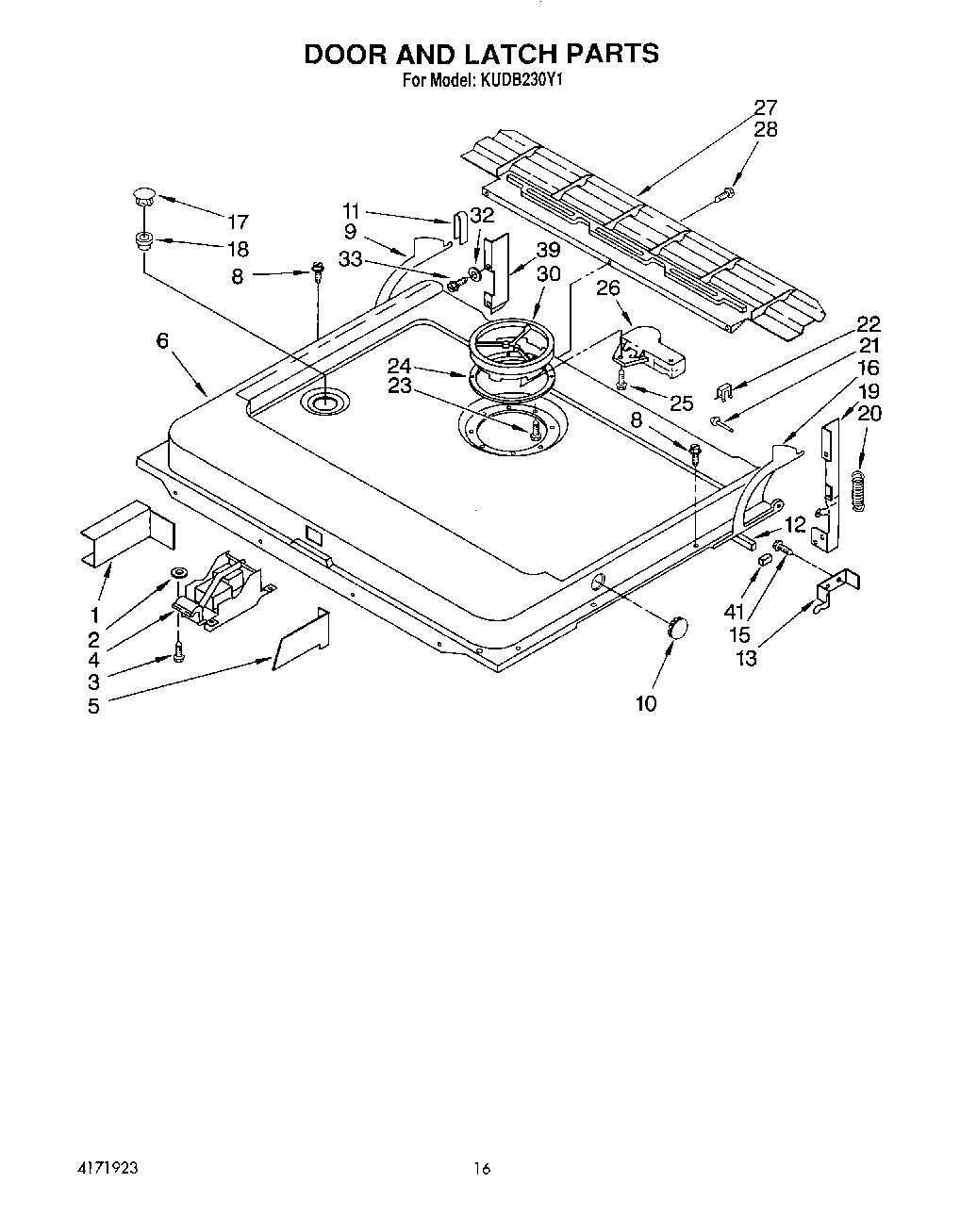

KUDB230Y1 12 – DOOR AND LATCH

Products

Position	Product
1	Cover, Wiring Harness
2	Washer
3	Screw, 10-16 X 3/8
4	Latch Mechanism Assembly
5	Insulation, Switch
6	Inner Door Assy
8	Screw & Washer Assembly
9	Bracket, L.H. Door Stop
10	Plug Button
11	Bearing, Door Stop Insert (2)
12	Vapor Barrier, Inner Door (Includes Item No. 41)
13	Bracket, Spring Mounting (R.H.)
13	Bracket, Spring Mounting (L.H.)
15	WP3390631 Whirlpool Screw
16	Bracket, R.H. Door Stop
17	Hole Plug
18	Gasket, Hole Plug
19	Bracket, R.H. Hinge
20	WP4171237 Whirlpool Dishwasher Spring
21	Pin, Hinge
22	Clip, Hinge Pin Retaining
23	Screw
24	WP4171447 Whirlpool Dishwasher Seal
25	Screw, 8-18 x 1/2
26	WP9741678 Whirlpool Dishwasher Bi-Metal
27	Baffle, Lower
28	SCREW
30	Detergent Dispenser & Gasket Assembly (115 V., 60 Hz.) (Includes Item 24)
32	Washer (Rubber)
33	Screw, 10-32 X 1/2
39	Bracket, L.H. Hinge
41	Vapor Barrier, Corner (2)
