KUDB23HB0 07 – FILL AND OVERFILL

KUDB23HB0 07 – FILL AND OVERFILL

Written by

in

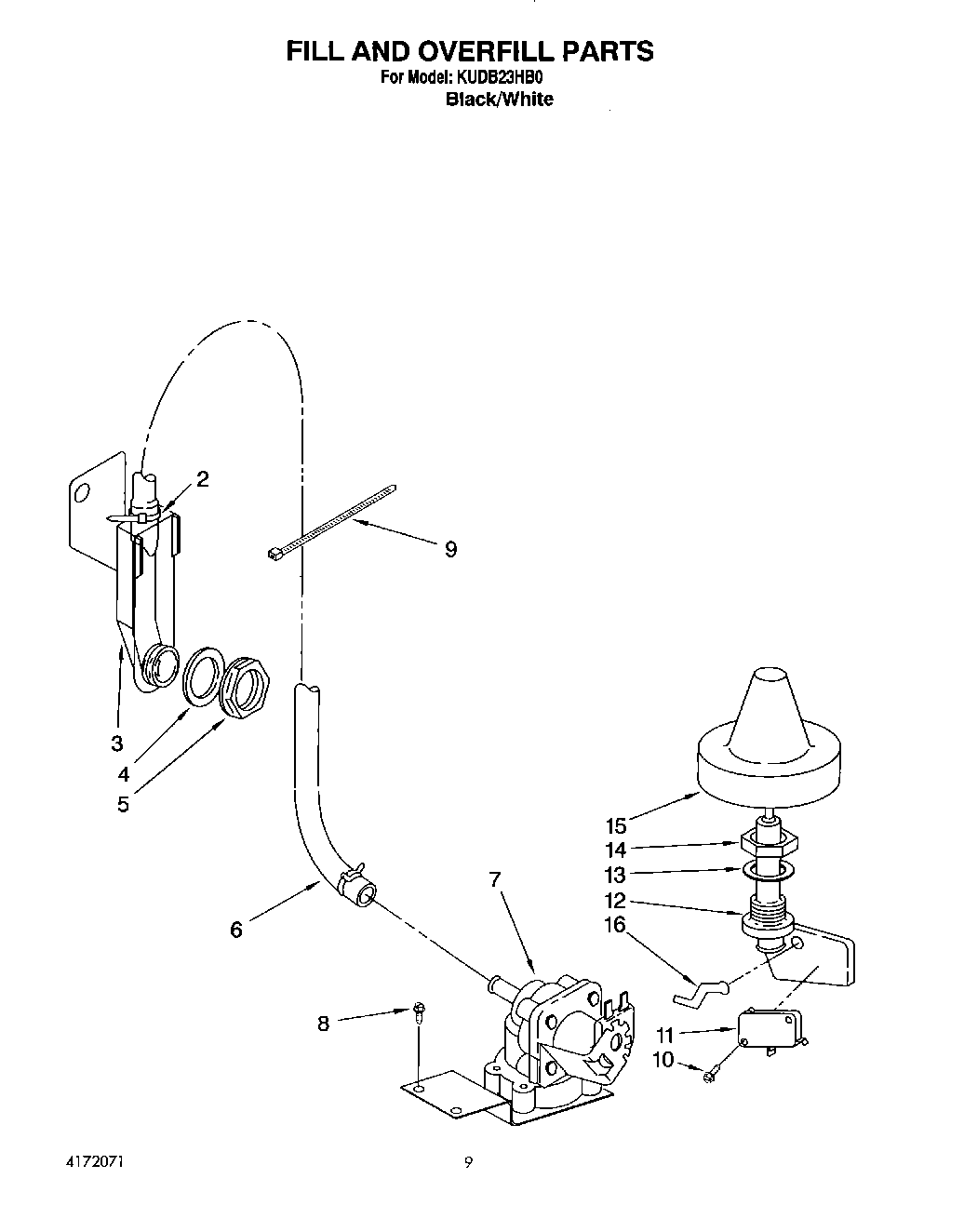

KUDB23HB0 07 – FILL AND OVERFILL

Products

PositionProduct
2Clamp, Hose
3Water Inlet and Hose Assembly
4Gasket, Rinse Agent Dispenser
5Nut, Rinse Agent Dispenser
6Clamp, Hose
7Fill Valve Assembly
8Screw, 10-16 X 3/8
9WPW10339879 Whirlpool Wire Tie
10Screw
11WP9743413 Whirlpool Dishwasher Switch
12W10207863 Whirlpool Dishwasher Switch
13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14Nut, Standpipe
15Float & Retainer Assembly
16Lever, Overflow Switch
