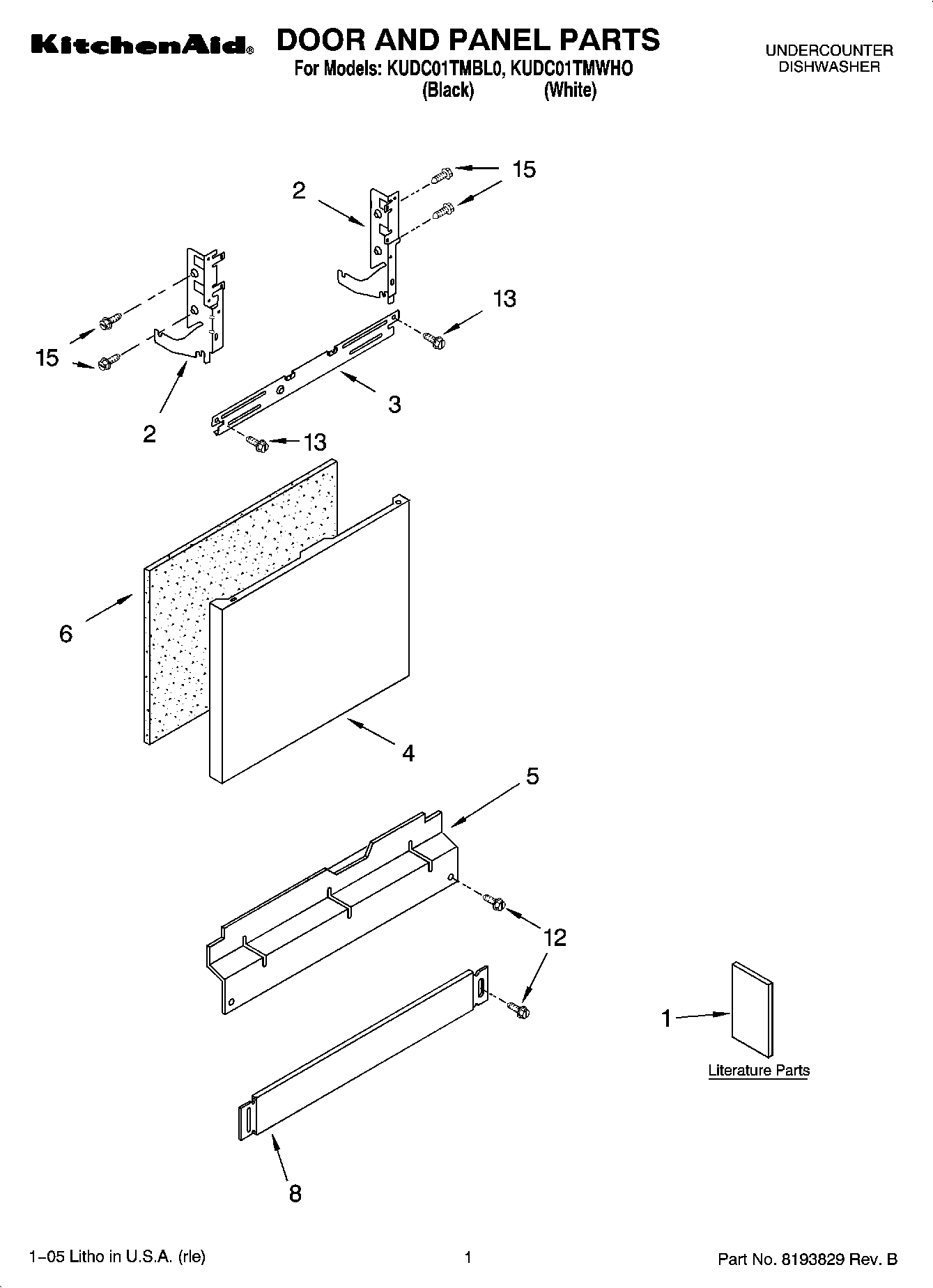

KUDC01TMBL0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Literature Parts (Guide, Use & Care Tech Sheet)
1Literature Parts (Instructions, Installation)
1Literature Parts (English/French)
1Literature Parts (Guide, Energy)
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (White)
4Panel Front (Black)
5W10909066 Whirlpool Dishwasher Panel
5W10909064 Whirlpool Dishwasher Black Access Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
8WPW10586591 Whirlpool Dishwasher Toe Panel
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
