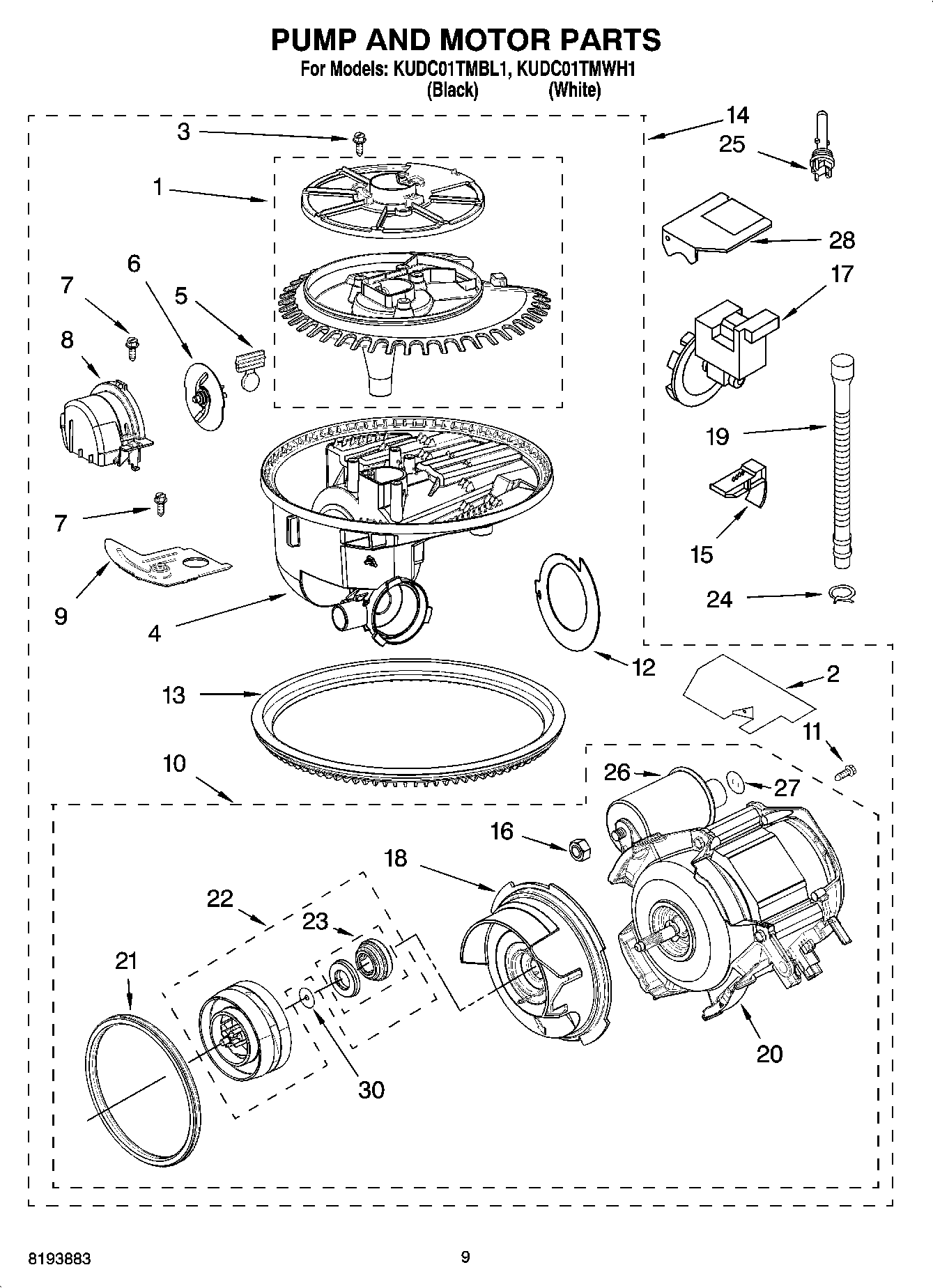

KUDC01TMBL1 08 – PUMP AND MOTOR PARTS

KUDC01TMBL1 08 – PUMP AND MOTOR PARTS

Written by

in

KUDC01TMBL1 08 – PUMP AND MOTOR PARTS

Products

PositionProduct
18193918 Whirlpool Accumulator
2WP8268522 Whirlpool Dishwasher Retainer
3Screw
4Sump
5WP8268375 Whirlpool Dishwasher Check Valve
6W10083957V Whirlpool Dishwasher Chopper
7WP9741232 Whirlpool Dishwasher Screw
8WP8531857 Whirlpool Dishwasher Protector
113400217 Whirlpool Dishwasher Screw
128268391 Whirlpool Dishwasher Screen
13Seal, Sump
14W10782773 Whirlpool Diswasher Pump & Motor Assembly
15WPW10300599 Whirlpool Dishwasher Sump Tab
16Nut
17Pump, Drain
198269144A Whirlpool Dishwasher Drain Hose
20WPW10757217 Whirlpool Circulation Pump and Motor
21W11622922 Whirlpool Dishwasher Volute
238193951A Whirlpool Impeller Assembly
24WP356138 Whirlpool Hose Clamp
25Thermister
26WPW10334457 Whirlpool Dishwasher Capacitor
278534946 Whirlpool Dishwasher Shield
28Shield, Drain Pump
30WP8531018 Whirlpool Dishwasher Washer
