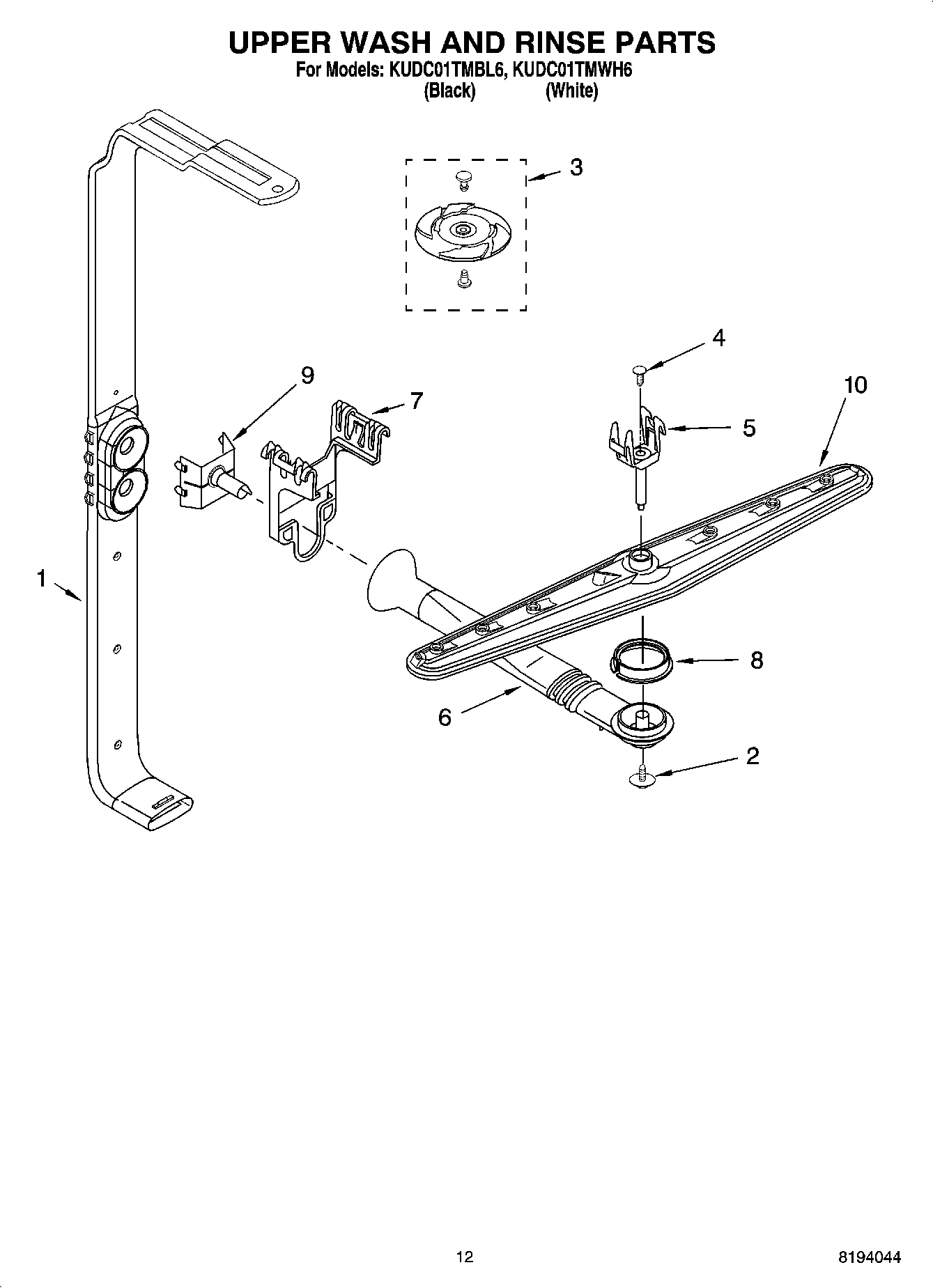

KUDC01TMBL6 10 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	Feed Tube Assembly (Also Includes Item 3)
2	WPW10349488 Whirlpool Screw
3	8193768 Whirlpool Dishwasher Spinner
4	WP3400920 Whirlpool Screw Cover
5	WP8268321 Whirlpool Dishwasher Mount
6	Manifold
7	WP8268349 Whirlpool Dishwasher Spray Arm Tube Hanger
8	WP8268433 Whirlpool Seal Assembly
9	Nozzle, Feed
10	WP8535086 Whirlpool Dishwasher Spray Arm
