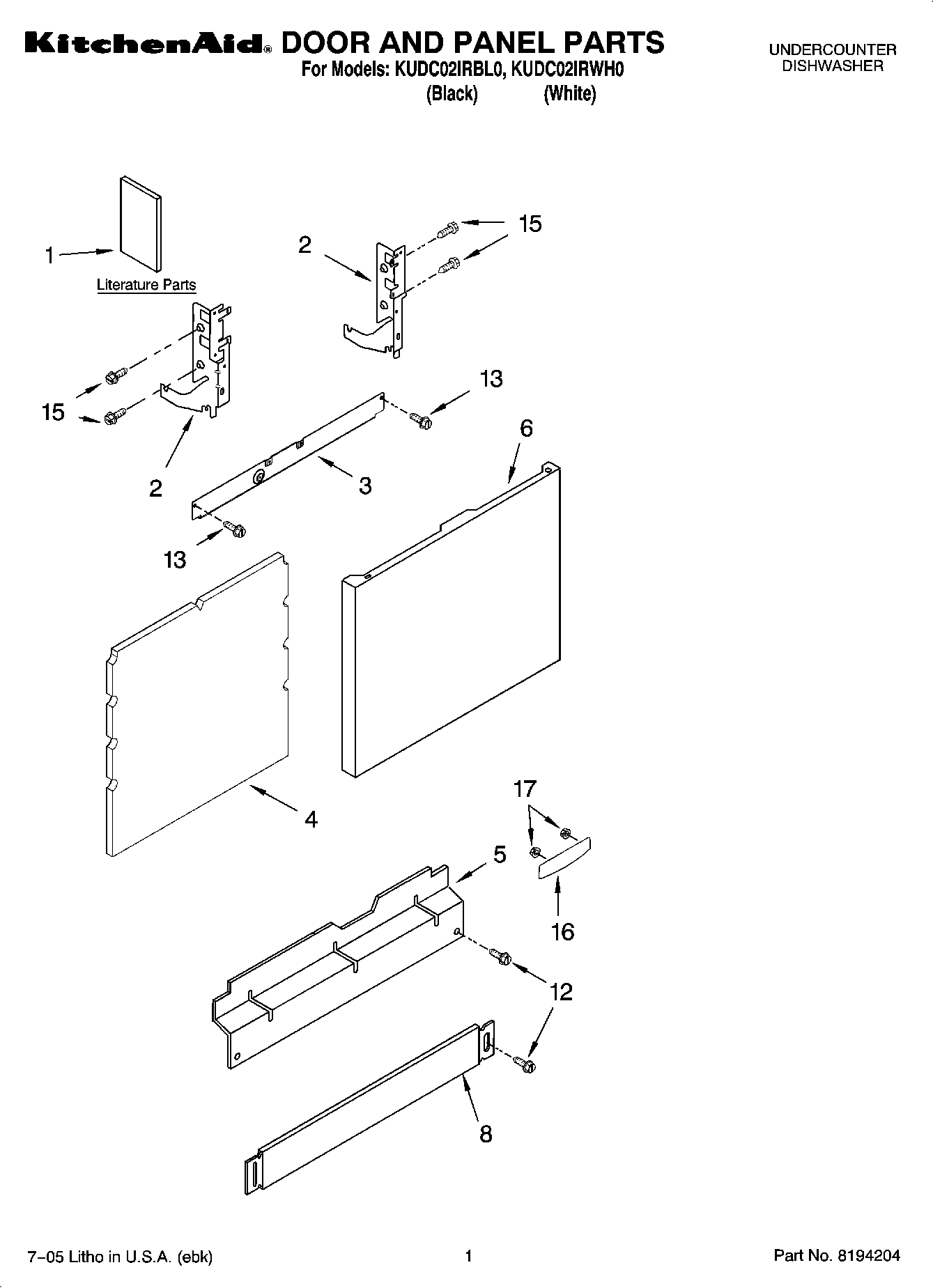

KUDC02IRWH0 01 – DOOR AND PANEL PARTS

KUDC02IRWH0 01 – DOOR AND PANEL PARTS

Written by

in

KUDC02IRWH0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Reference
1Tech Sheet
1Instructions, Installation
1Energy Guide
1Guide, Use & Care
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909066 Whirlpool Dishwasher Panel
6Panel Front (Includes Item 6) (Black)
6Panel Front (Includes Item 6) (White)
8W10909064 Whirlpool Dishwasher Black Access Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
16Nameplate (White)
16Nameplate (Black)
17WP2004333 Whirlpool Refrigerator Nut
