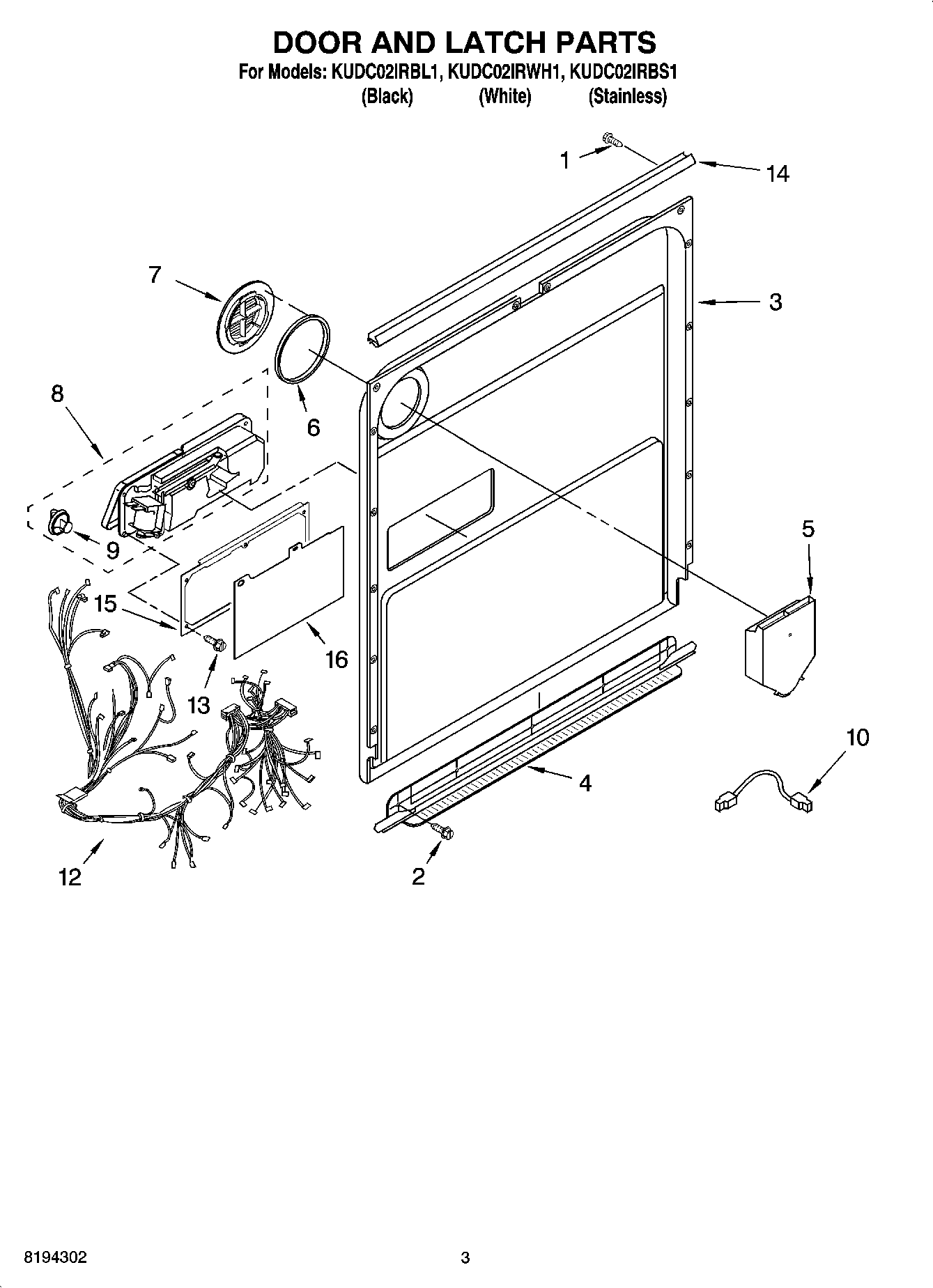

KUDC02IRWH1 03 – DOOR AND LATCH PARTS

KUDC02IRWH1 03 – DOOR AND LATCH PARTS

Written by

in

KUDC02IRWH1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3Inner Door Mastic Assembly (Also Order Item 6)
4WP8268937 Whirlpool Dishwasher Air Inlet
5WPW10164259 Whirlpool Dishwasher Vent Assembly
6WP8269259 Whirlpool Air Vent Gasket
7WP8545536 Whirlpool Dishwasher Deflector
8WPW10224430 Whirlpool Dishwasher Detergent Dispenser
9WP8564929 Whirlpool Rinse Aid Cap
10Harness, Vent Motor
12WPW10413097 Whirlpool Dishwasher Wire Harness
13WPW10177098 Whirlpool Dishwasher Screw
14WP8535660 Whirlpool Dishwasher Seal
15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16WP8531865 Whirlpool Dishwasher Door Shield
