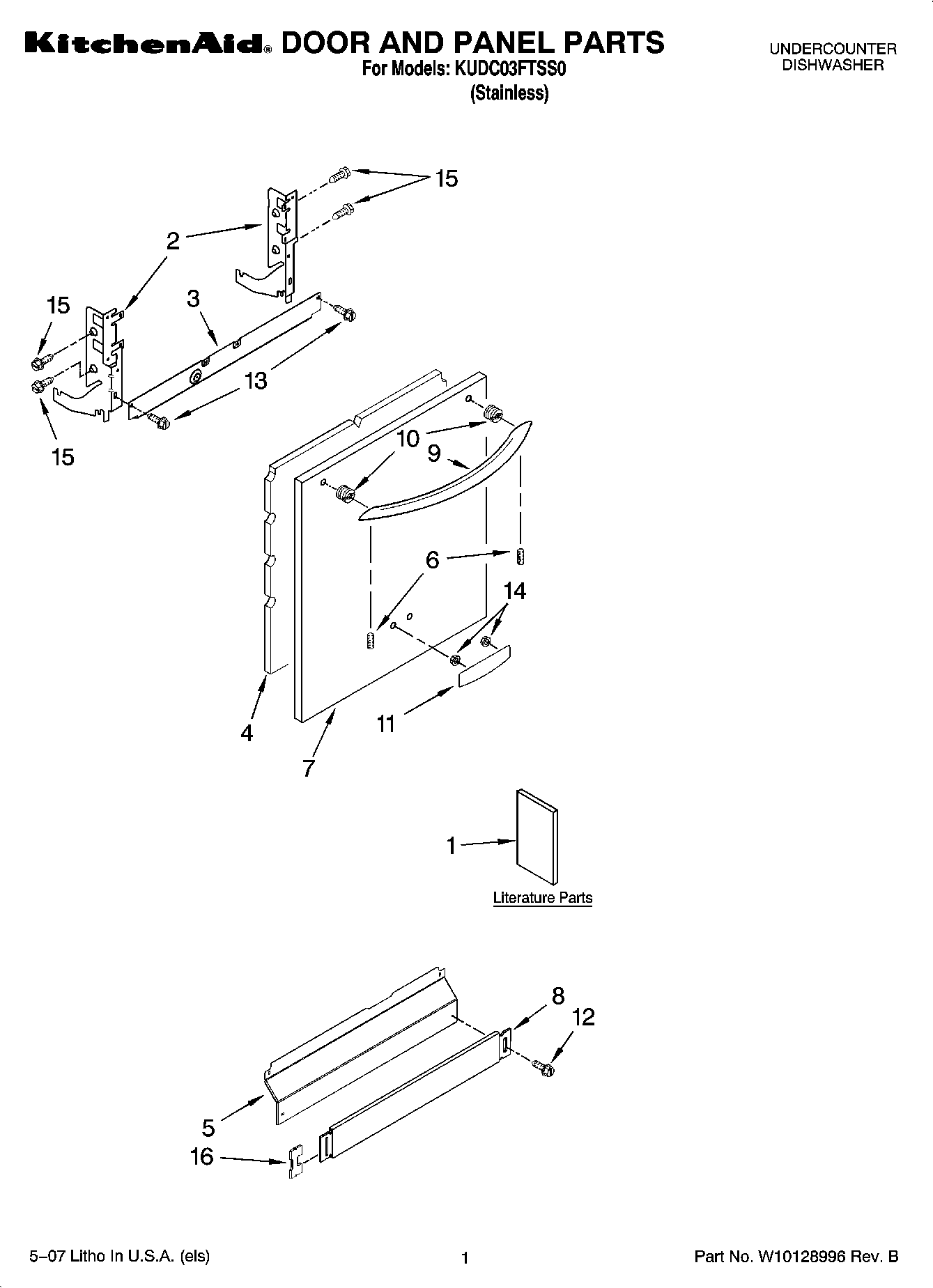

KUDC03FTSS0 01 – DOOR AND PANEL PARTS

KUDC03FTSS0 01 – DOOR AND PANEL PARTS

Written by

in

KUDC03FTSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Reference
1Instructions, Installation
1Tech Sheet
1Energy Guide
1Guide, Use & Care
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8534008 Whirlpool Screw
7Panel, Full Front (Includes Items 4, 10, 16 & 17) (Stainless)
9W10195738A Whirlpool Stainless Steel Door Handle
10WP8564951 Whirlpool Dishwasher Stud
11W10021850 Whirlpool Dishwasher Nameplate
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WP2004333 Whirlpool Refrigerator Nut
15WP3400071 Whirlpool Screw
16WP8269016 Whirlpool Clip Assembly
