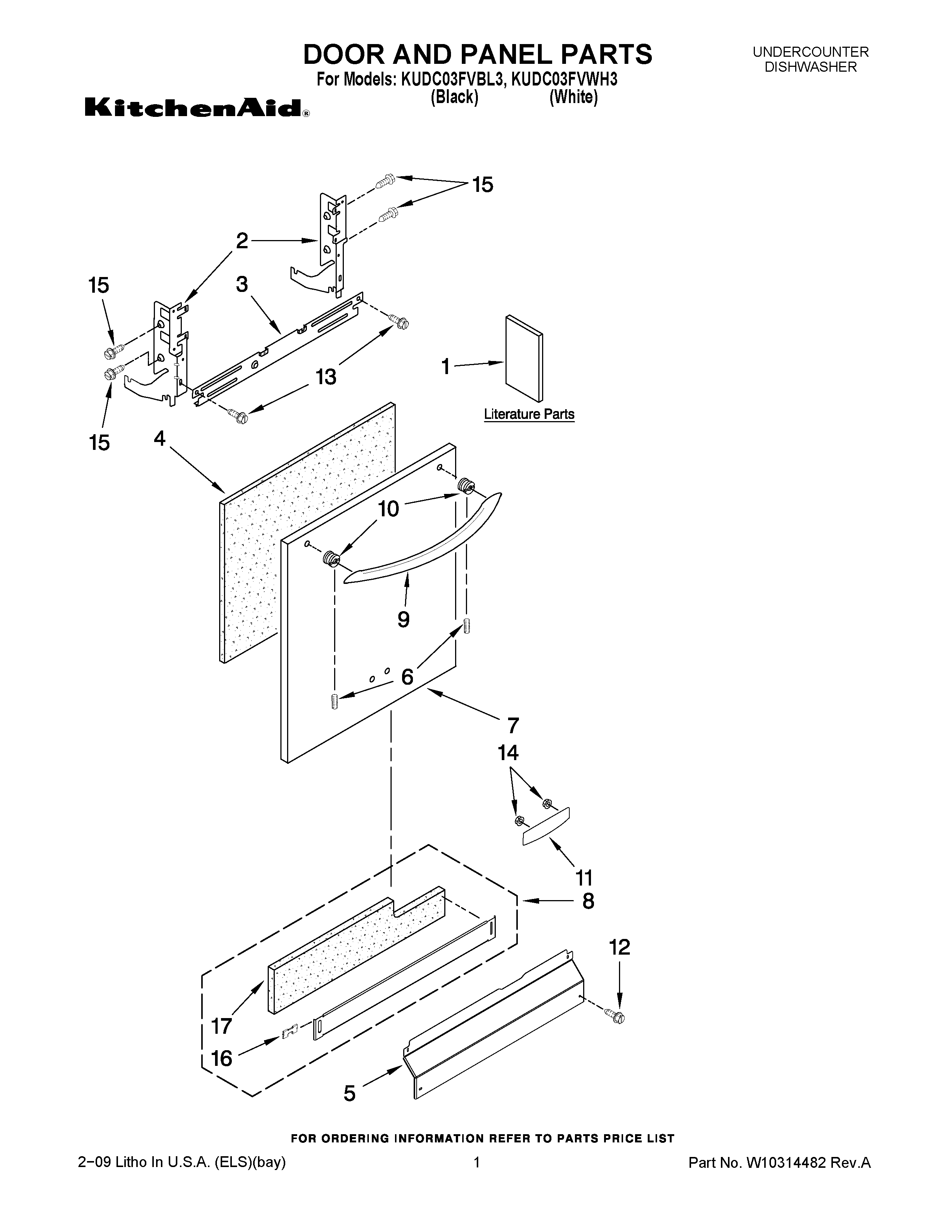

KUDC03FVBL3 01 – DOOR AND PANEL PARTS

KUDC03FVBL3 01 – DOOR AND PANEL PARTS

Written by

in

KUDC03FVBL3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, UNDERCOUNTER BRACKET
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE ENGLISH & FRENCH
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6WP8534008 Whirlpool Screw
7Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
7Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
8W10799406 Whirlpool Dishwasher Toe Panel
9HANDLE (INCLUDES ITEMS 13) (BLACK)
9HANDLE (INCLUDES ITEMS 13) (WHITE)
10WP8564951 Whirlpool Dishwasher Stud
11W10021870 Whirlpool Nameplate
11W10021850 Whirlpool Dishwasher Nameplate
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WP2004333 Whirlpool Refrigerator Nut
15WP3400071 Whirlpool Screw
16WP8269016 Whirlpool Clip Assembly
17SHIELD
