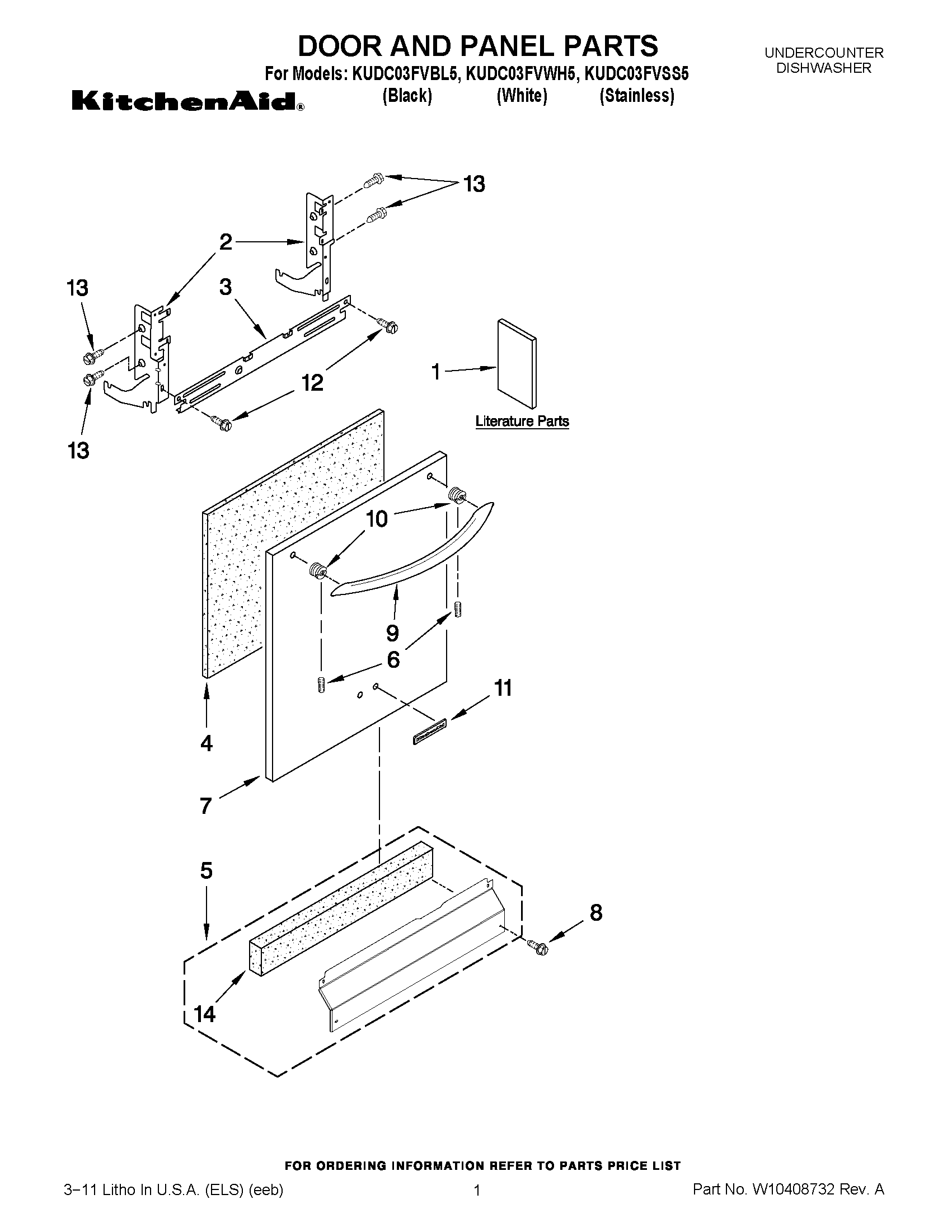

KUDC03FVBL5 01 – DOOR AND PANEL PARTSadmin2025-04-26T12:57:34+00:00KUDC03FVBL5 01 – DOOR AND PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENERGY GUIDE |
| 1 | GUIDE, USE & CARE (SPANISH) |
| 1 | GUIDE, USE & CARE (ENGLISH/FRENCH) |
| 1 | INSTRUCTIONS, INSTALLATION |
| 2 | W11612302 Whirlpool Dishwasher Door Hinge |
| 2 | W11612303 Whirlpool Door Hinge |
| 3 | Stiffener, Door |
| 4 | WPW10073520 Whirlpool Dishwasher Insulation Pad |
| 5 | W10827632 Whirlpool Dishwasher Control Panel |
| 5 | W10827631 Whirlpool Toe Panel |
| 6 | WP8534008 Whirlpool Screw |
| 7 | Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless) |
| 7 | Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black) |
| 7 | Panel, Full Front (Includes Items 4, 10, 16 & 17) (White) |
| 8 | WPW10503549 Whirlpool Dishwasher Retainer Clip |
| 8 | WPW10503548 Whirlpool Dishwasher Panel Retainer Clip |
| 9 | HANDLE (INCLUDES ITEMS 13) (WHITE) |
| 9 | HANDLE (INCLUDES ITEMS 13) (BLACK) |
| 9 | W10195738A Whirlpool Stainless Steel Door Handle |
| 10 | WP8564951 Whirlpool Dishwasher Stud |
| 11 | WPW10243393 Whirlpool Dishwasher Nameplate |
| 11 | WPW10243392 Whirlpool Dishwasher Nameplate |
| 11 | WPW10243391 Whirlpool Refrigerator Nameplate |
| 12 | WP489069 Whirlpool Compactor Screw |
| 13 | WP3400071 Whirlpool Screw |
| 14 | SHIELD |
