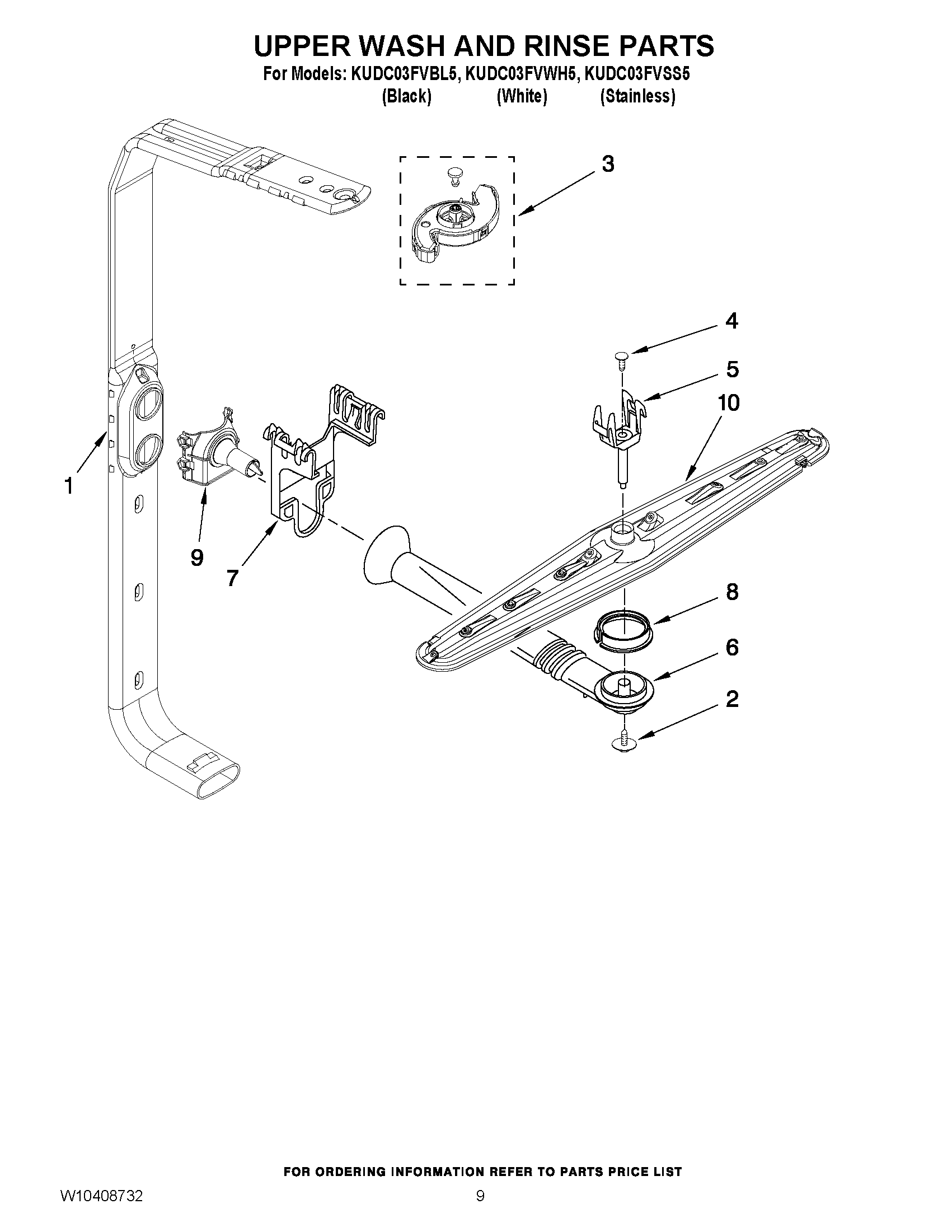

KUDC03FVBL5 07 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	Feed Tube Assembly (Also Includes Item 3)
2	WPW10349488 Whirlpool Screw
3	8193983 Whirlpool Spinner Kit
4	WPW10118464 Whirlpool Dishwasher Wash Arm Plug
5	WPW10082867 Whirlpool Dishwasher Mount
6	Manifold
7	Hanger
8	WP8268433 Whirlpool Seal Assembly
9	Nozzle-Feed
10	WPW10082841 Whirlpool Spray Arm
