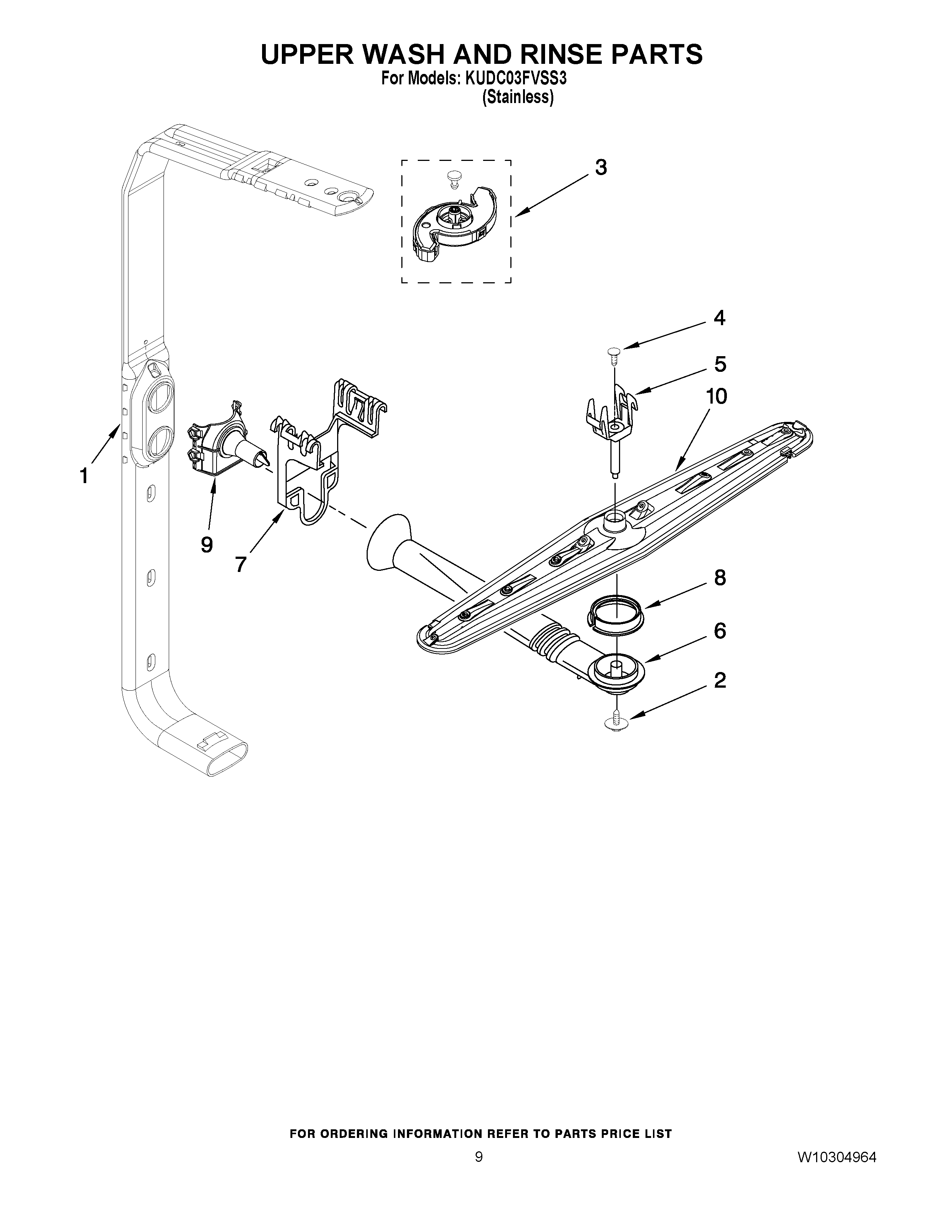

KUDC03FVSS3 07 – UPPER WASH AND RINSE PARTS

KUDC03FVSS3 07 – UPPER WASH AND RINSE PARTS

Written by

in

KUDC03FVSS3 07 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1Feed Tube Assembly (Also Includes Item 3)
2WPW10349488 Whirlpool Screw
38193983 Whirlpool Spinner Kit
4WPW10118464 Whirlpool Dishwasher Wash Arm Plug
5WPW10082867 Whirlpool Dishwasher Mount
6Manifold
7Hanger
8WP8268433 Whirlpool Seal Assembly
9Nozzle-Feed
10WPW10082841 Whirlpool Spray Arm
