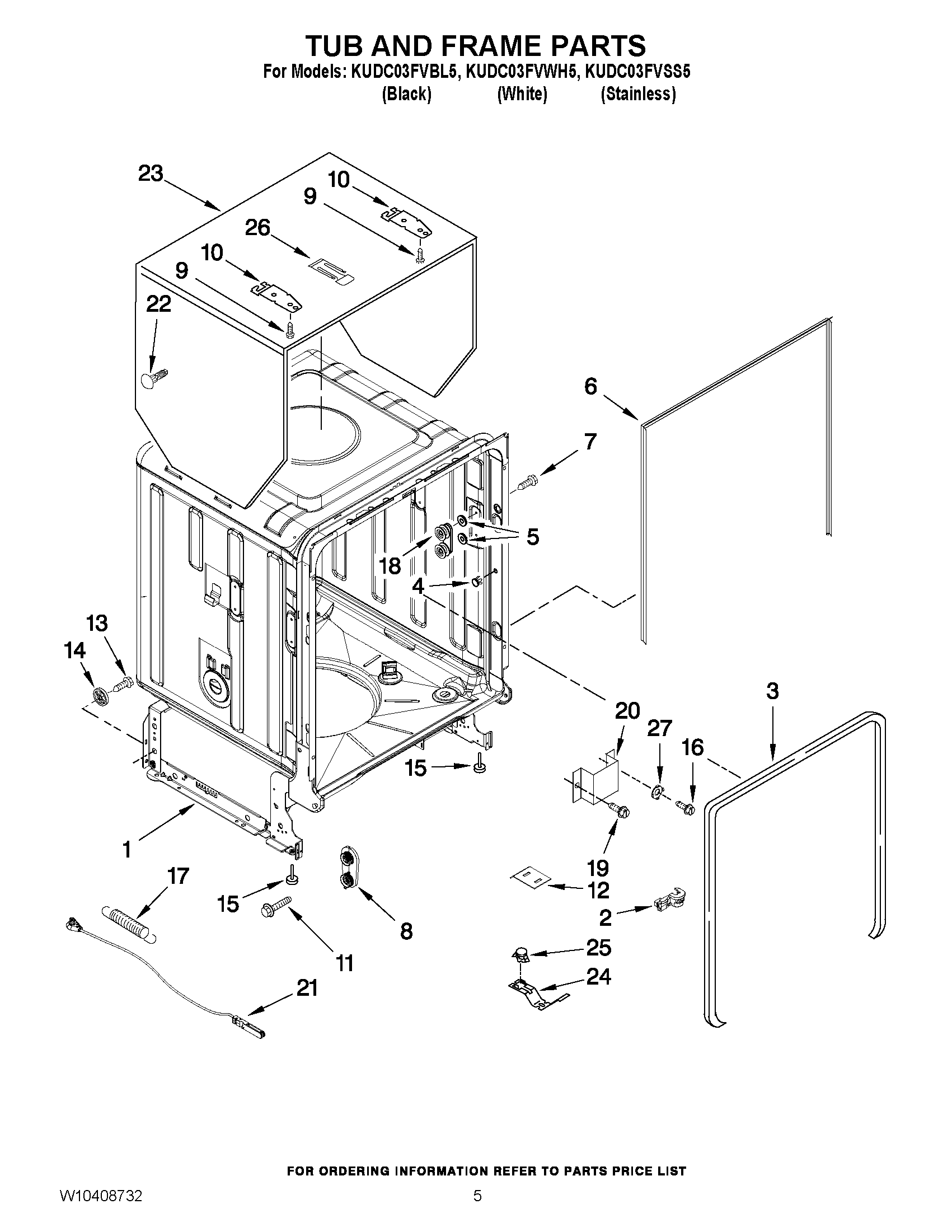

KUDC03FVSS5 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP9743002 Whirlpool Dishwasher Gasket
6	SEAL
7	WPW10309090 Whirlpool Dishwasher Screw
8	WPW10084086 Whirlpool Dishwasher Mount
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	W10321574 Whirlpool Dishwasher Shield
13	Screw (2)
14	WP8268977 Whirlpool Dishwasher Wheel
15	8193716 Whirlpool Leveling Leg
16	WP3400014 Whirlpool Dishwasher Screw
17	SPRING
18	WPW10078083 Whirlpool Dishwasher Dishrack Wheel
19	WP3400892 Whirlpool Dishwasher Screw
20	WP8268991 Whirlpool Dishwasher Cover Assembly
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	WP304666 Whirlpool Dishwasher Retainer
23	W10877094 Whirlpool Shield
24	9742648 Whirlpool Dishwasher Stat Bracket
25	WP661566 Whirlpool High Limit Thermostat
26	STRIKE, LATCH
27	WP3378128 Whirlpool Dishwasher Washer
