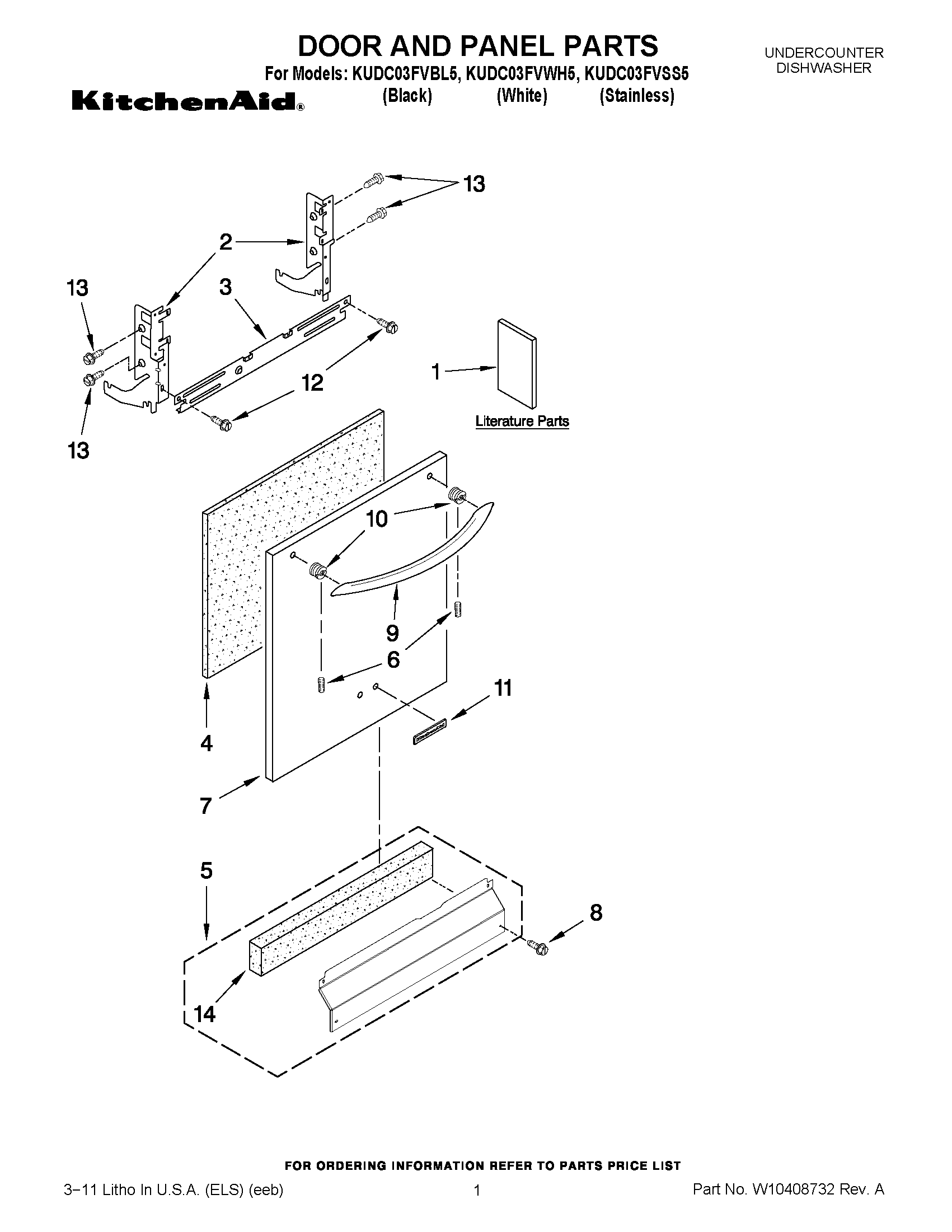

KUDC03FVWH5 01 – DOOR AND PANEL PARTS

KUDC03FVWH5 01 – DOOR AND PANEL PARTS

Written by

in

KUDC03FVWH5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10827632 Whirlpool Dishwasher Control Panel
5W10827631 Whirlpool Toe Panel
6WP8534008 Whirlpool Screw
7Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
7Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
7Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9HANDLE (INCLUDES ITEMS 13) (WHITE)
9HANDLE (INCLUDES ITEMS 13) (BLACK)
9W10195738A Whirlpool Stainless Steel Door Handle
10WP8564951 Whirlpool Dishwasher Stud
11WPW10243393 Whirlpool Dishwasher Nameplate
11WPW10243392 Whirlpool Dishwasher Nameplate
11WPW10243391 Whirlpool Refrigerator Nameplate
12WP489069 Whirlpool Compactor Screw
13WP3400071 Whirlpool Screw
14SHIELD
