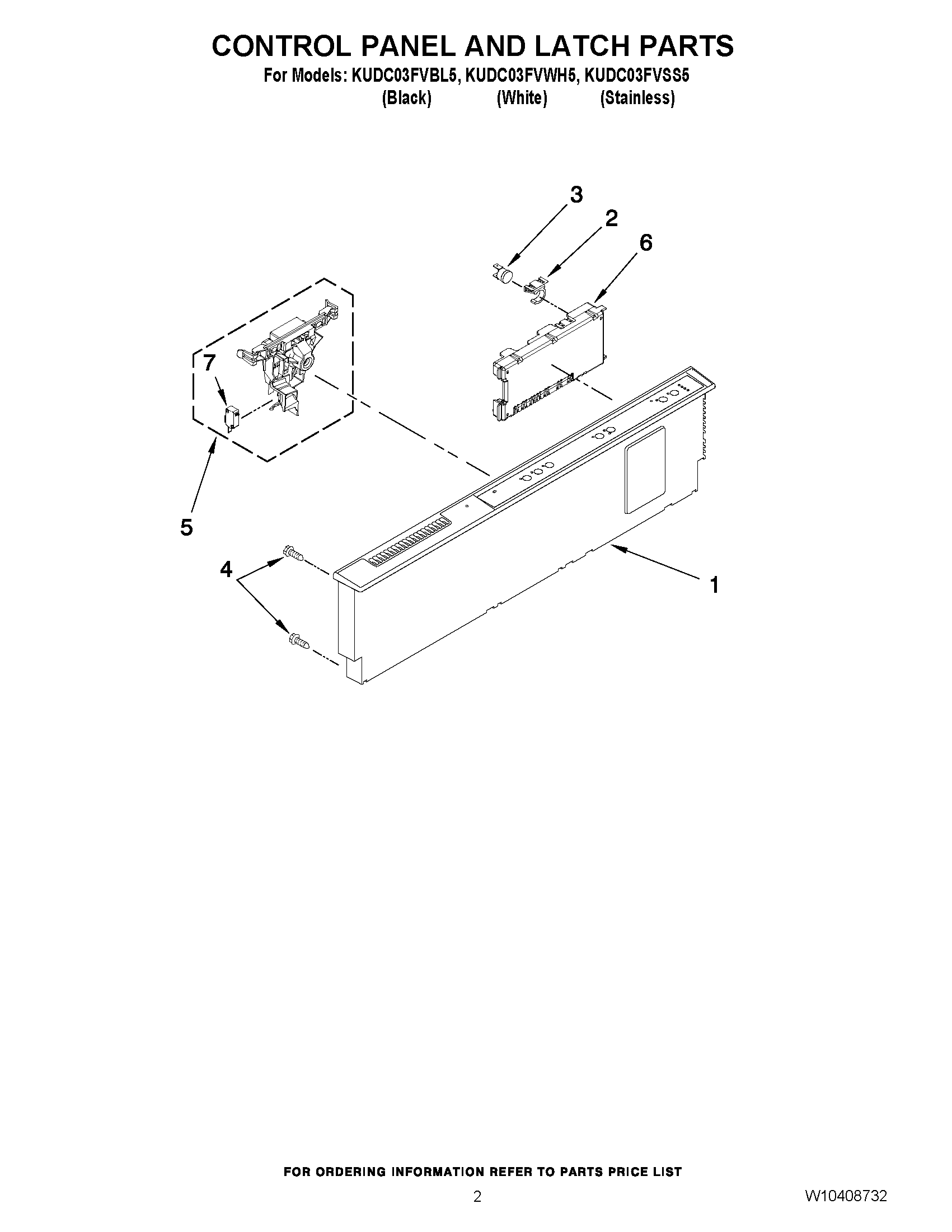

KUDC03FVWH5 02 – CONTROL PANEL AND LATCH PARTS

KUDC03FVWH5 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDC03FVWH5 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASM. (INCLUDES INSERT) (MIDNIGHT GREY)
1CONSOLE ASM. (INCLUDES INSERT) (BLACK)
1CONSOLE ASM. (INCLUDES INSERT) (WHITE)
2Clip, BI-Metal
3W10258275 Whirlpool Dishwasher Bimetal Fuse
4WPW10348409 Whirlpool Screw
5WPW10404412 Whirlpool Door Latch
6WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
7WPW10134019 Whirlpool Dishwasher Switch
