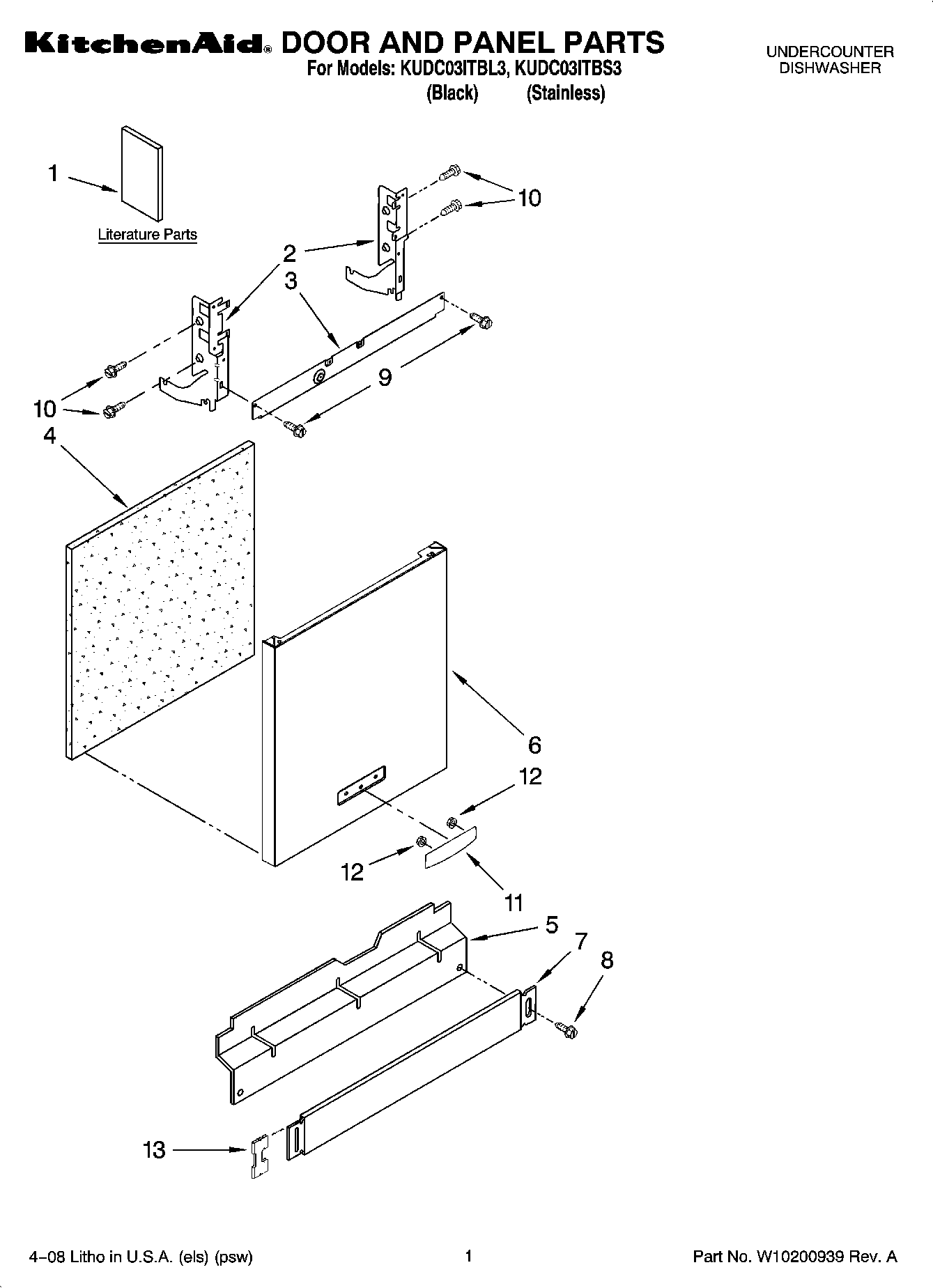

KUDC03ITBL3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Energy Guide
1	Guide, Use & Care (English/French)
1	Guide, Use & Care Spanish
1	Tech Sheet
1	Instructions, Installation
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	WPW10073520 Whirlpool Dishwasher Insulation Pad
5	W10909064 Whirlpool Dishwasher Black Access Panel
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
6	W10349340 Whirlpool Dishwasher Panel
8	WP302868 Whirlpool Screw
9	WP489069 Whirlpool Compactor Screw
10	WP3400071 Whirlpool Screw
11	W10021860 Whirlpool Dishwasher Nameplate
11	W10021850 Whirlpool Dishwasher Nameplate
12	WP2004333 Whirlpool Refrigerator Nut
13	WP8269016 Whirlpool Clip Assembly
