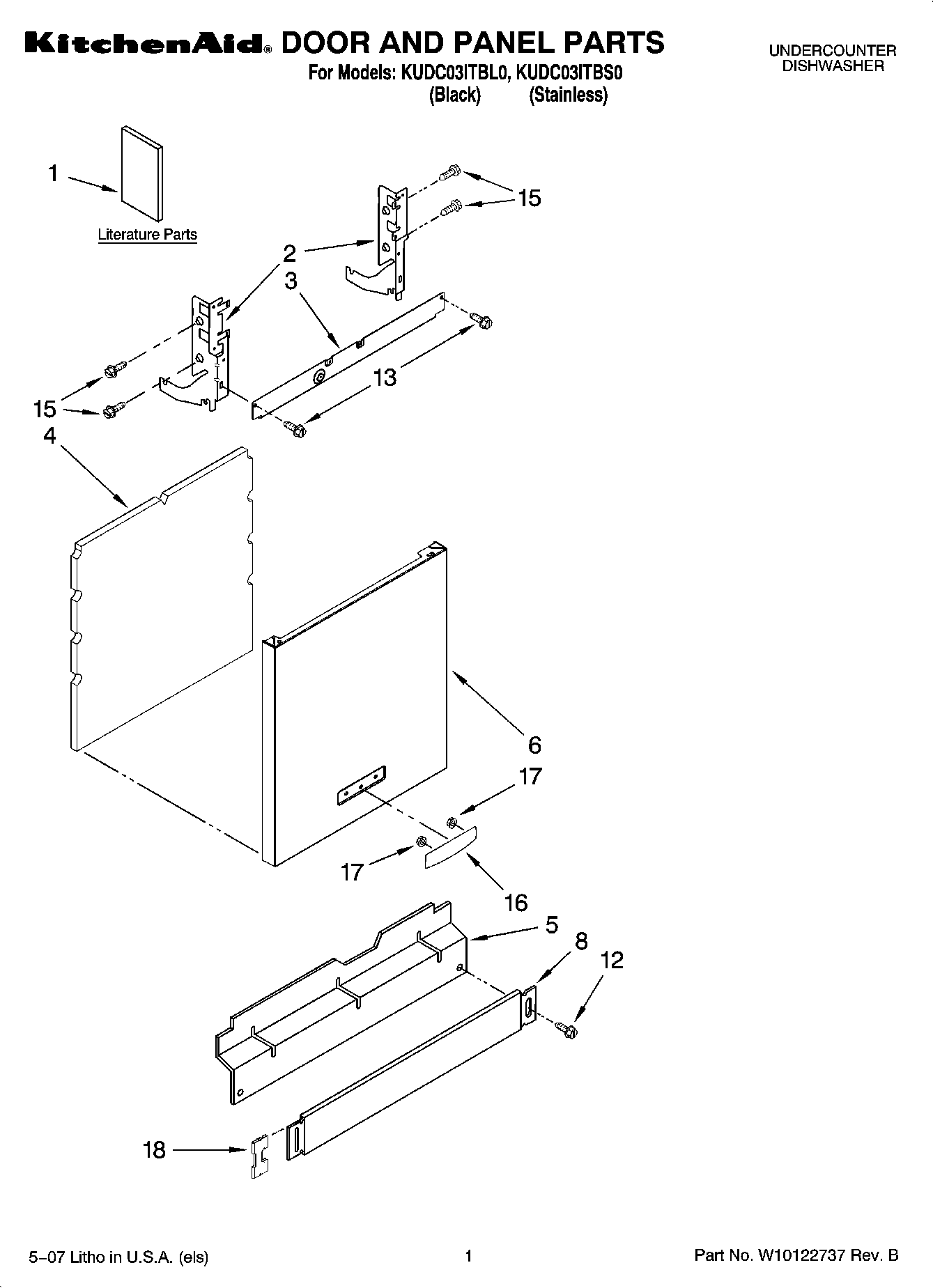

KUDC03ITBS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1Tech Sheet
1Energy Guide
1Guide, Consumer Reference
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909064 Whirlpool Dishwasher Black Access Panel
6W10349340 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
16W10021860 Whirlpool Dishwasher Nameplate
16W10021850 Whirlpool Dishwasher Nameplate
17WP2004333 Whirlpool Refrigerator Nut
18WP8269016 Whirlpool Clip Assembly
