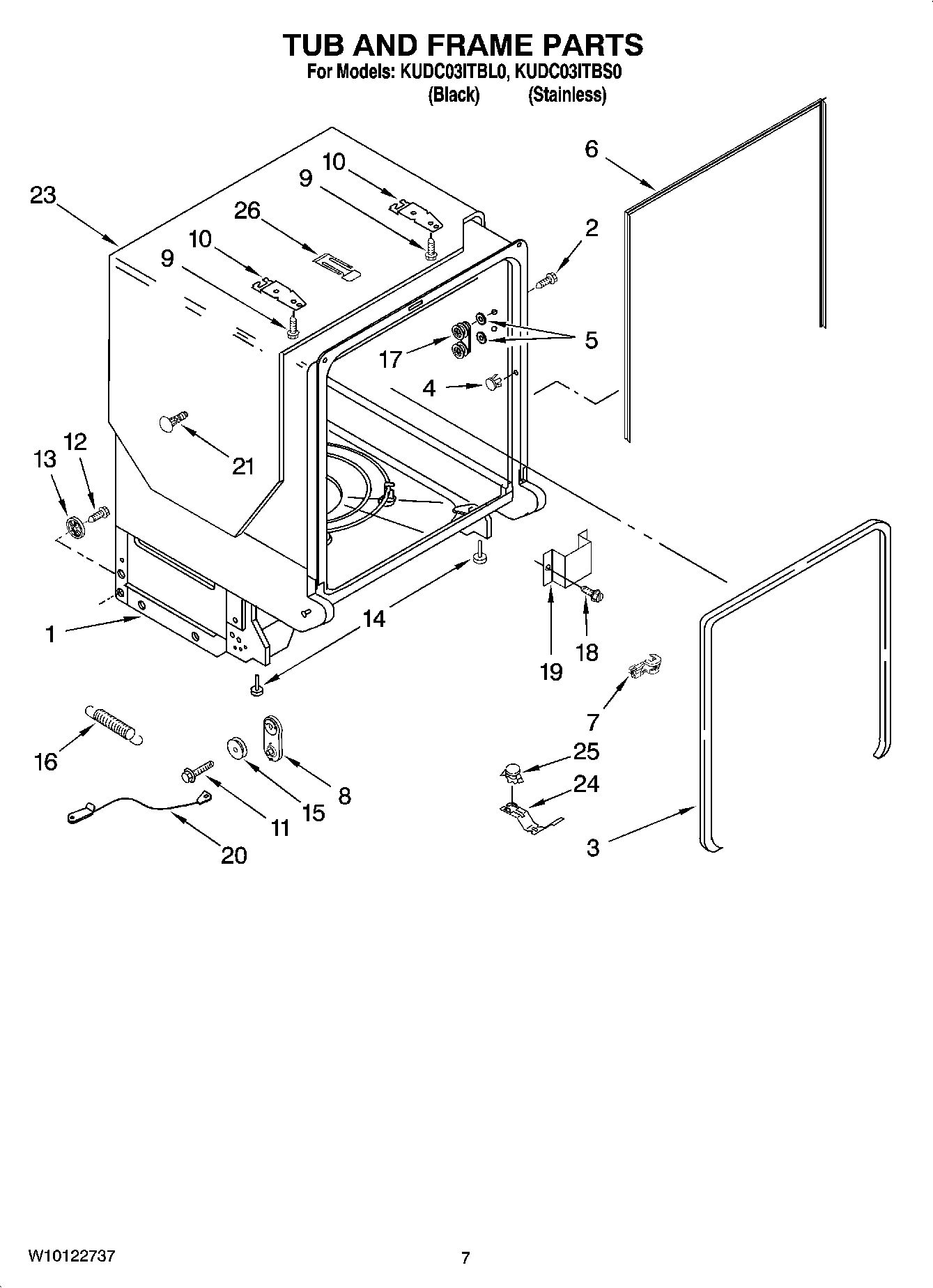

KUDC03ITBS0 07 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly
2	WPW10348407 Whirlpool Dishwasher Screw
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP9743002 Whirlpool Dishwasher Gasket
6	SEAL
7	W11384788 Whirlpool Dishwasher Relief Strainer
8	8194001 Whirlpool Dishwasher Door Balance Link Kit
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	Screw (2)
13	WP8268977 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	WP8524474 Whirlpool Dishwasher Wheel Assembly
16	SPRING
17	WPW10078083 Whirlpool Dishwasher Dishrack Wheel
18	WP3400892 Whirlpool Dishwasher Screw
19	WP8268991 Whirlpool Dishwasher Cover Assembly
21	WP304666 Whirlpool Dishwasher Retainer
23	W10877094 Whirlpool Shield
24	9742648 Whirlpool Dishwasher Stat Bracket
25	WP661566 Whirlpool High Limit Thermostat
26	WP8580309 Whirlpool Dishwasher Strike
