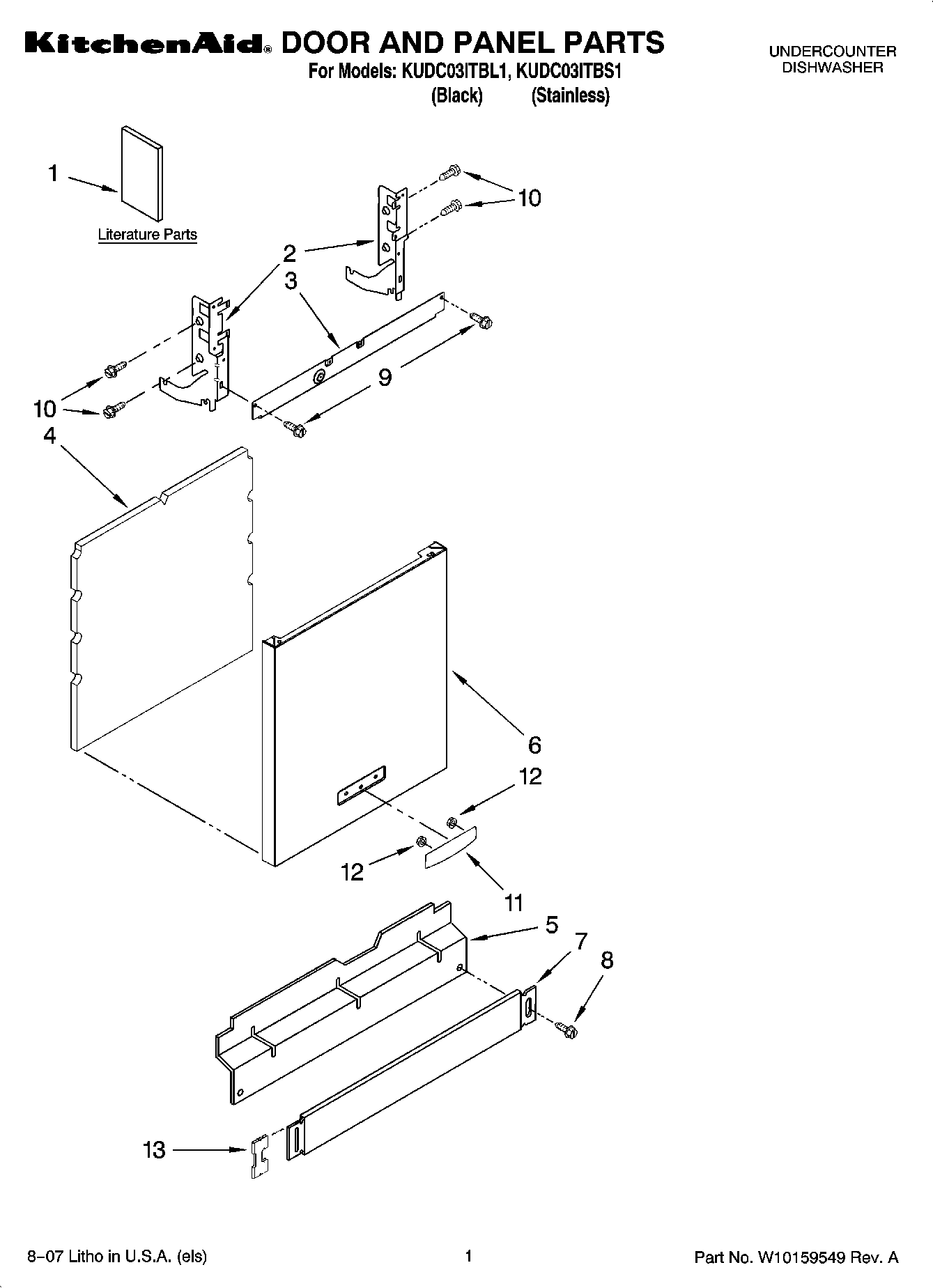

KUDC03ITBS1 01 – DOOR AND PANEL PARTS

KUDC03ITBS1 01 – DOOR AND PANEL PARTS

Written by

in

KUDC03ITBS1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Instructions, English/French Reference
1Instructions, Installation
1Tech Sheet
1Energy Guide
1D/W User Instructions, Spanish
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909064 Whirlpool Dishwasher Black Access Panel
6W10349340 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
8WP302868 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10WP3400071 Whirlpool Screw
11W10021860 Whirlpool Dishwasher Nameplate
11W10021850 Whirlpool Dishwasher Nameplate
12WP2004333 Whirlpool Refrigerator Nut
13WP8269016 Whirlpool Clip Assembly
