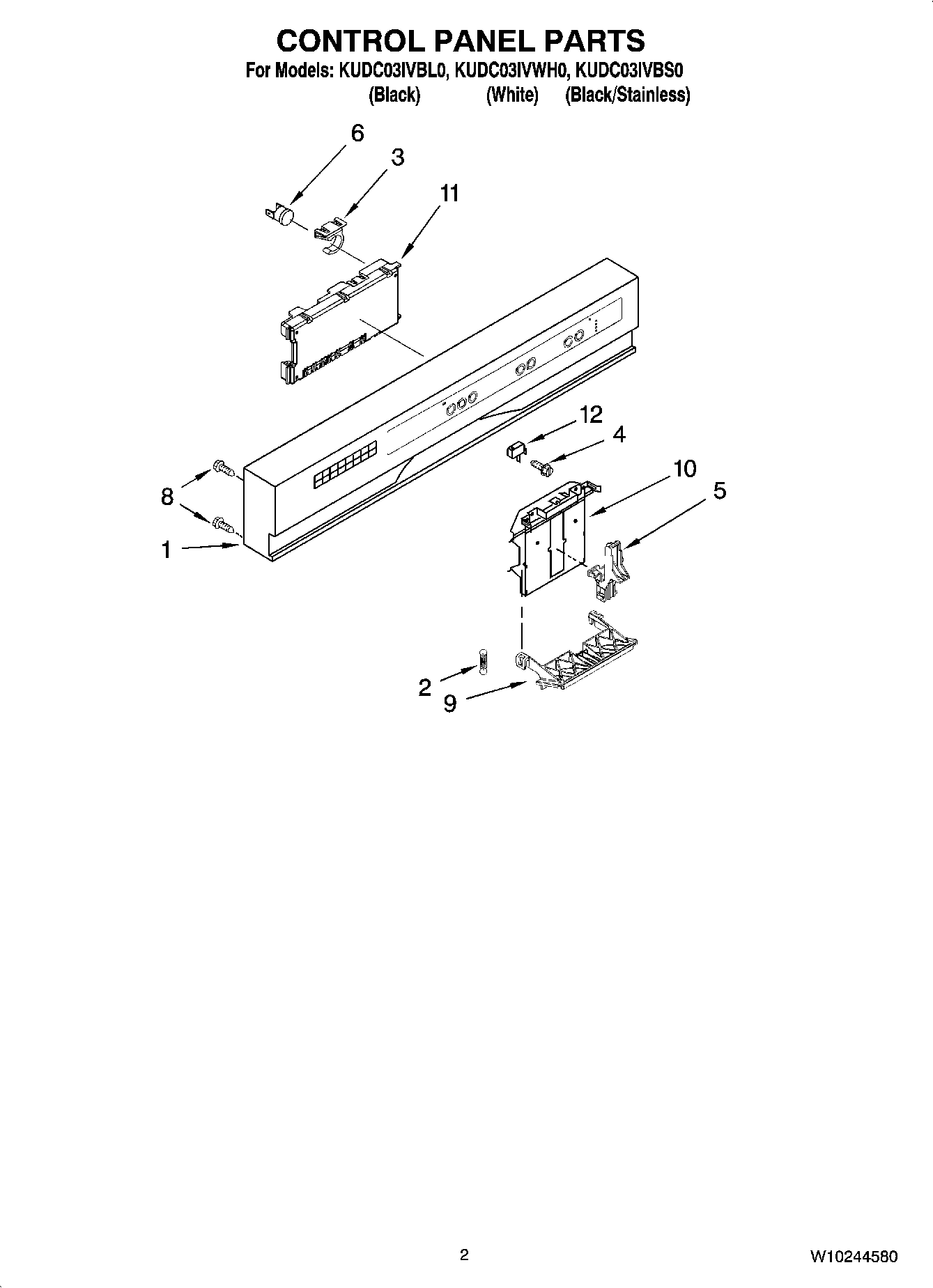

KUDC03IVBL0 02 – CONTROL PANEL PARTS

KUDC03IVBL0 02 – CONTROL PANEL PARTS

Written by

in

KUDC03IVBL0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10078104 Whirlpool Dishwasher Control Panel
1WPW10056394 Whirlpool Dishwasher Control Panel
2WP8268540 Whirlpool Door Handle Spring
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
5WP8524471 Whirlpool Dishwasher Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
8WPW10348409 Whirlpool Screw
9WP8269117 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10084142 Whirlpool Dishwasher Electronic Control Board + Core
12WP8269209 Whirlpool Door Switch
