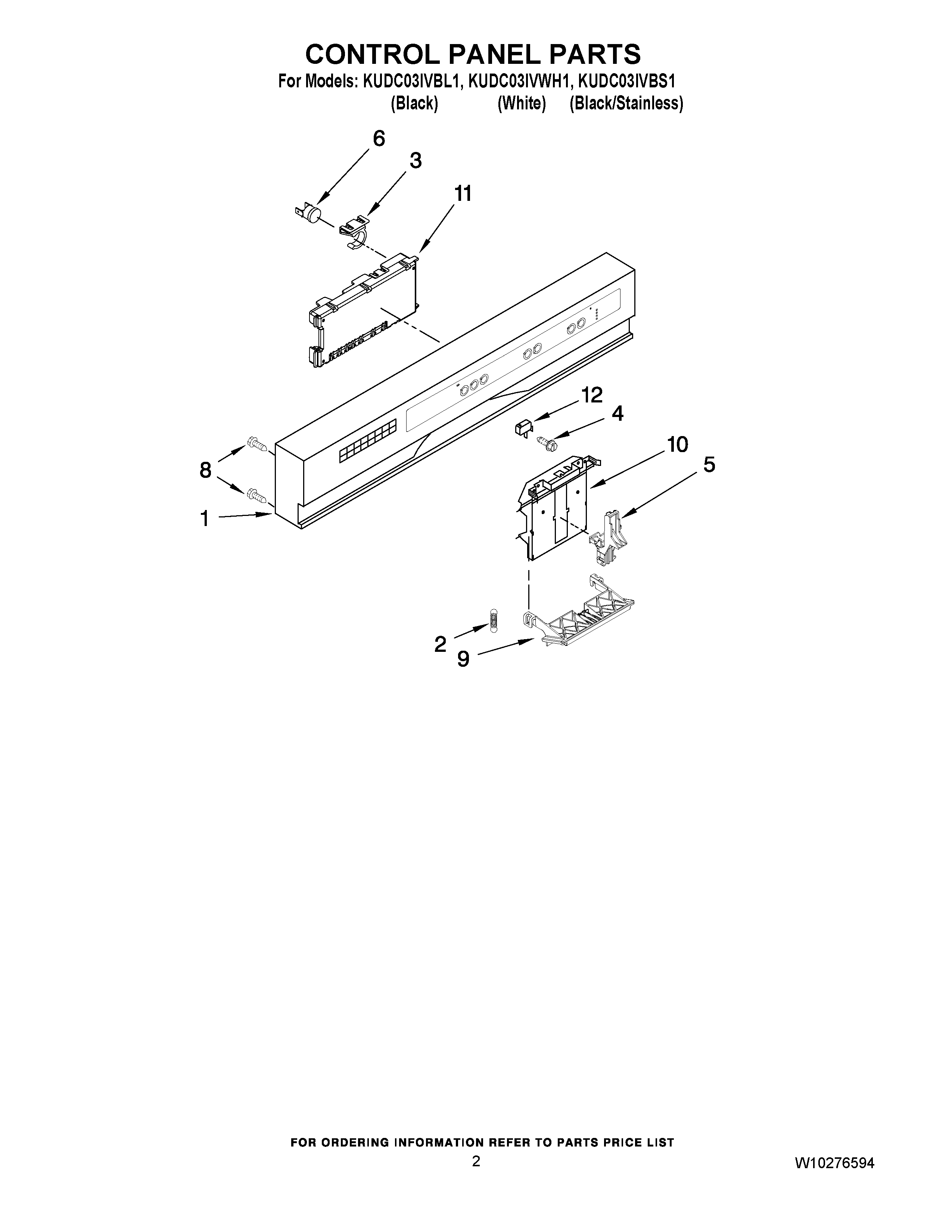

KUDC03IVBL1 02 – CONTROL PANEL PARTS
Written by
in
KUDC03IVBL1 02 – CONTROL PANEL PARTS
Products
Position
Product
1
WPW10078104 Whirlpool Dishwasher Control Panel
1
WPW10056394 Whirlpool Dishwasher Control Panel
2
WP8268540 Whirlpool Door Handle Spring
3
Clip, BI-Metal
4
WP3400412 Whirlpool Dishwasher Screw
5
WP8524471 Whirlpool Dishwasher Actuator
6
W10258275 Whirlpool Dishwasher Bimetal Fuse
8
WPW10348409 Whirlpool Screw
9
WP8269117 Whirlpool Dishwasher Handle
10
8193882 Whirlpool Dishwasher Primary Latch Bolt
11
WPW10084142 Whirlpool Dishwasher Electronic Control Board + Core
12
WP8269209 Whirlpool Door Switch
←
