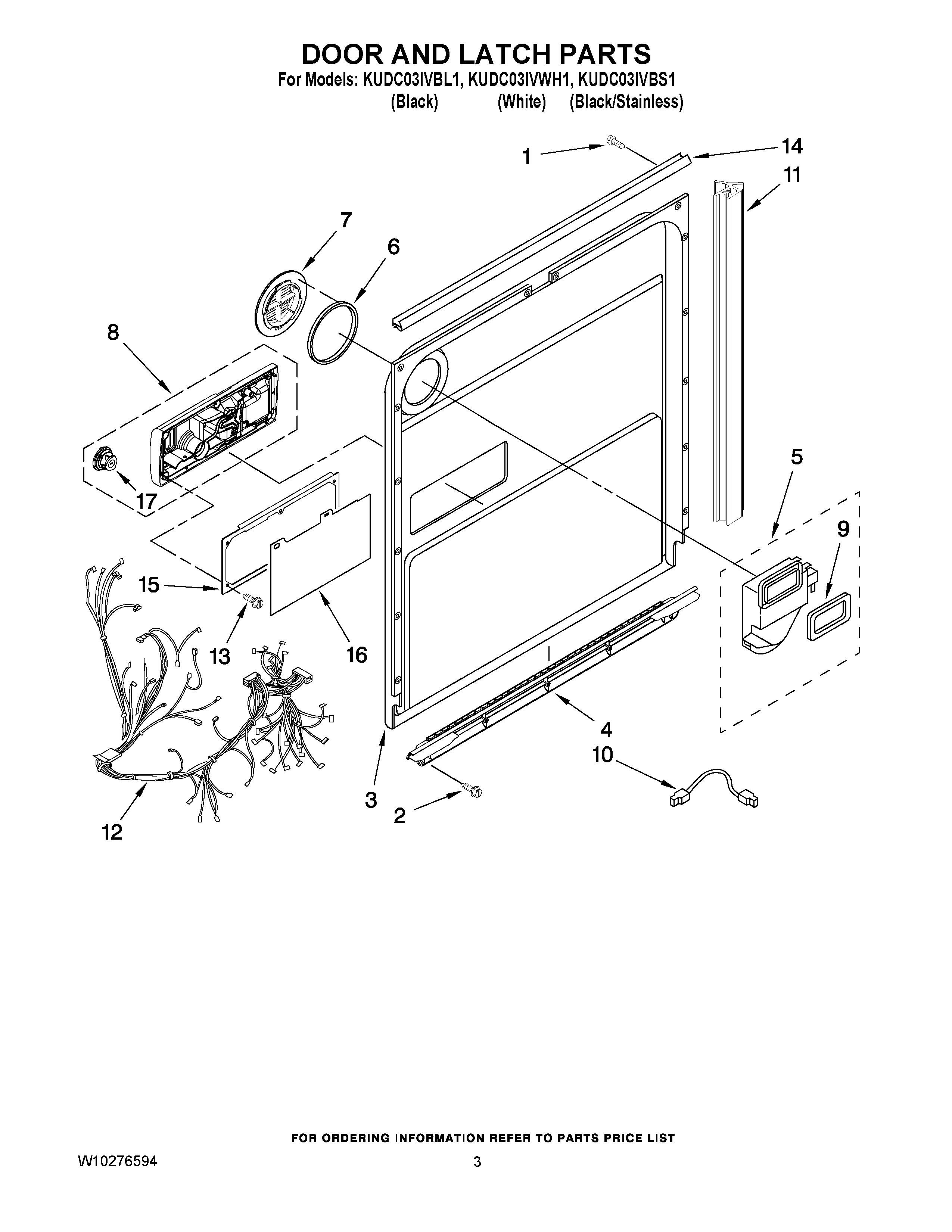

KUDC03IVBL1 03 – DOOR AND LATCH PARTS

KUDC03IVBL1 03 – DOOR AND LATCH PARTS

Written by

in

KUDC03IVBL1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6)
4WPW10077883 Whirlpool Dishwasher Air Inlet
5WPW10164259 Whirlpool Dishwasher Vent Assembly
6WP8269259 Whirlpool Air Vent Gasket
7WPW10077877 Whirlpool Air Vent Deflector
8WPW10195175 Whirlpool Dishwasher Detergent Dispenser
9WP8269258 Whirlpool Dishwasher Gasket
10Harness, Vent Motor
118574160 Whirlpool Dishwasher Seal
12Wiring Harness
13WPW10177098 Whirlpool Dishwasher Screw
14WP8535660 Whirlpool Dishwasher Seal
15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
16WP8531865 Whirlpool Dishwasher Door Shield
17WPW10077881 Whirlpool Dispenser Cap
