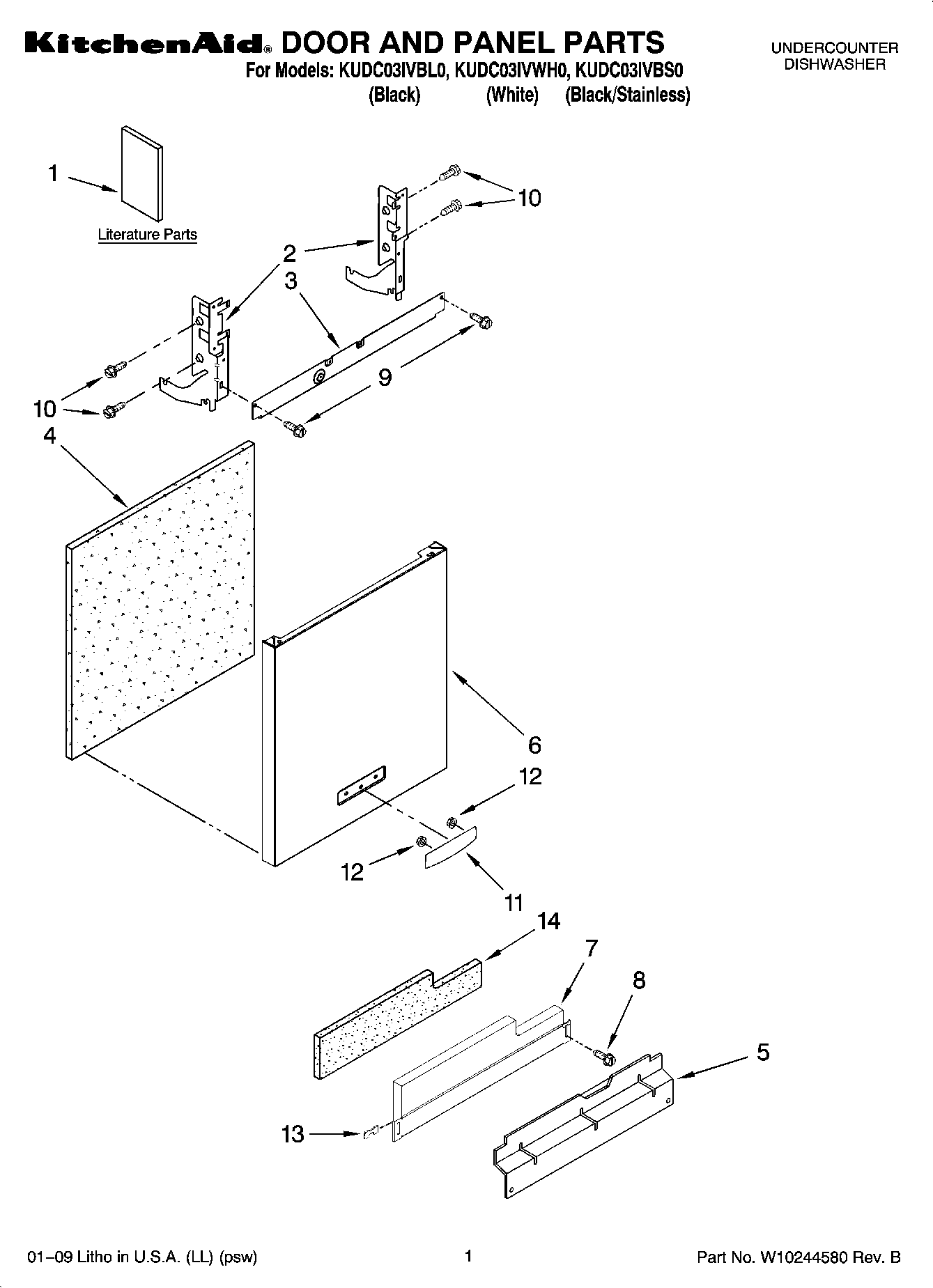

KUDC03IVBS0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Energy Guide
1	Tech Sheet
1	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE ENGLISH & FRENCH
1	Guide, Use & Care Spanish
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	Stiffener, Door
4	WPW10073520 Whirlpool Dishwasher Insulation Pad
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (WHITE)
6	W10349340 Whirlpool Dishwasher Panel
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
7	W10799406 Whirlpool Dishwasher Toe Panel
8	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	WP302868 Whirlpool Screw
9	WP489069 Whirlpool Compactor Screw
10	WP3400071 Whirlpool Screw
11	W10021860 Whirlpool Dishwasher Nameplate
11	W10021850 Whirlpool Dishwasher Nameplate
11	W10021870 Whirlpool Nameplate
12	WP2004333 Whirlpool Refrigerator Nut
13	WP8269016 Whirlpool Clip Assembly
14	SHIELD
