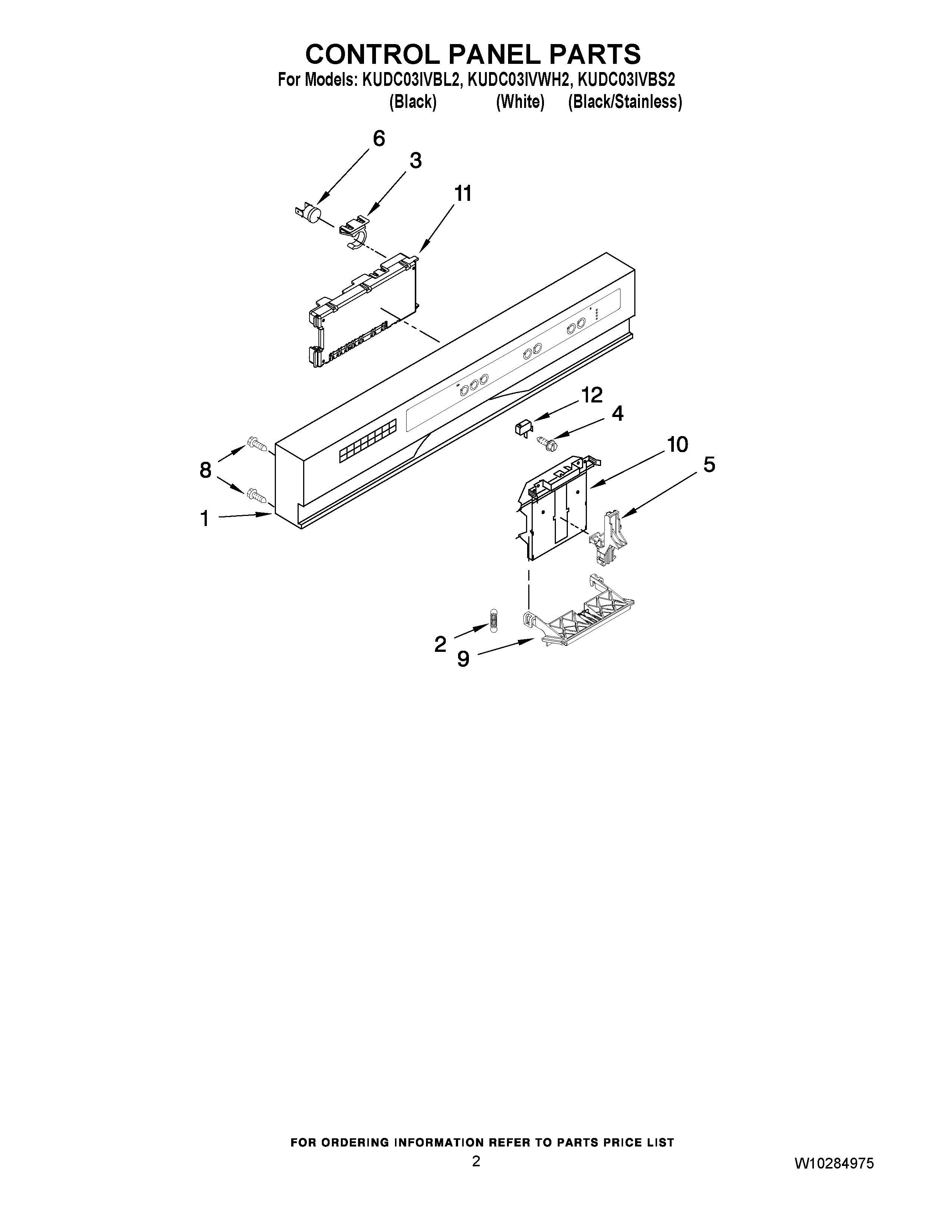

KUDC03IVBS2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	WPW10250008 Whirlpool Dishwasher Control Panel
1	WPW10250007 Whirlpool Dishwasher Control Panel
2	WP8268540 Whirlpool Door Handle Spring
3	Clip, BI-Metal
4	WP3400412 Whirlpool Dishwasher Screw
5	WP8524471 Whirlpool Dishwasher Actuator
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
8	WPW10348409 Whirlpool Screw
9	WP8269117 Whirlpool Dishwasher Handle
10	8193882 Whirlpool Dishwasher Primary Latch Bolt
11	WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
12	WP8269209 Whirlpool Door Switch
