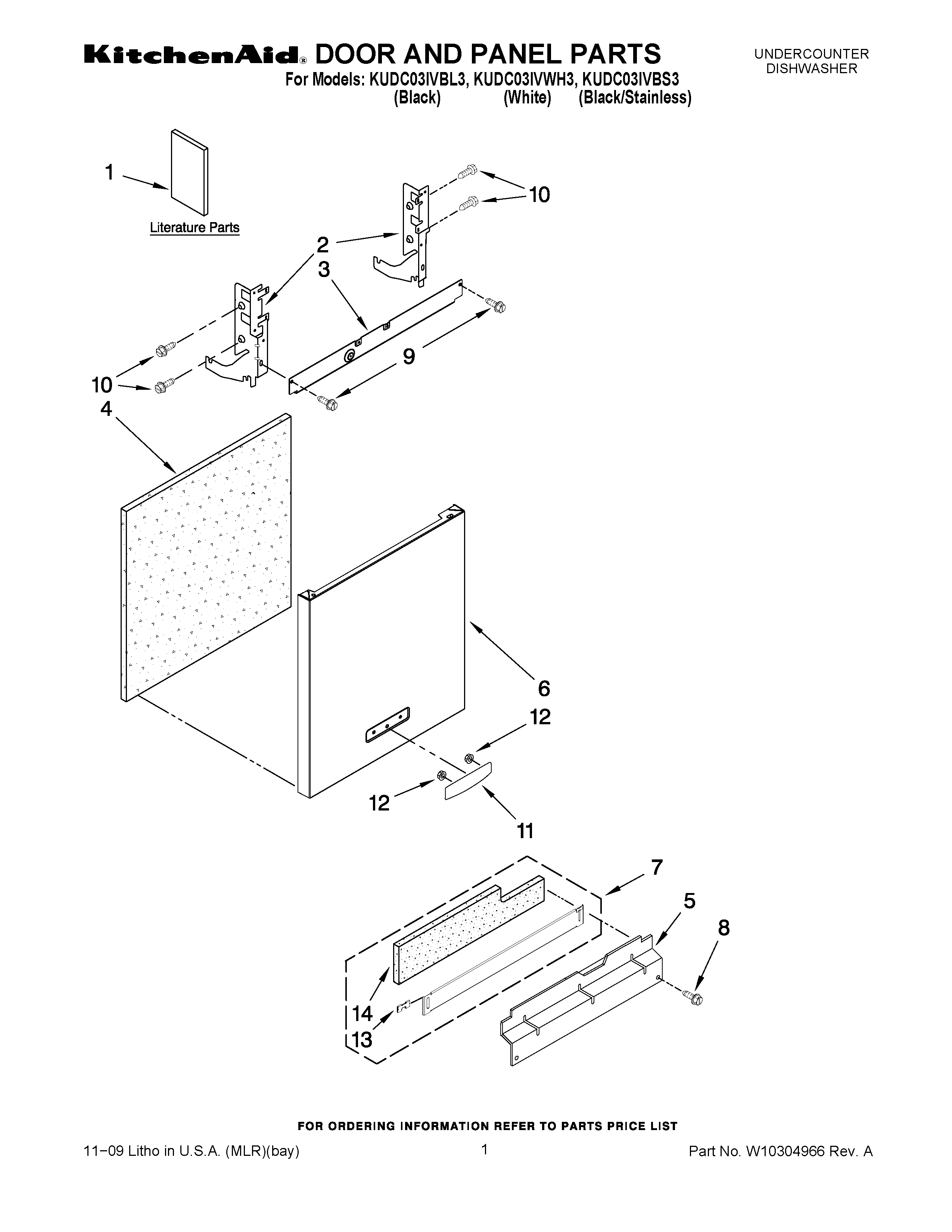

KUDC03IVBS3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1Tech Sheet
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE & CARE ENGLISH & FRENCH
1GUIDE, USE & CARE (SPANISH)
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10909066 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (BLACK)
6W10349340 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES ITEMS 4, & 12) (WHITE)
7W10799406 Whirlpool Dishwasher Toe Panel
8WPW10503549 Whirlpool Dishwasher Retainer Clip
8WP302868 Whirlpool Screw
9WP489069 Whirlpool Compactor Screw
10WP3400071 Whirlpool Screw
11W10021860 Whirlpool Dishwasher Nameplate
11W10021850 Whirlpool Dishwasher Nameplate
11W10021870 Whirlpool Nameplate
12WP2004333 Whirlpool Refrigerator Nut
13WP8269016 Whirlpool Clip Assembly
14SHIELD
