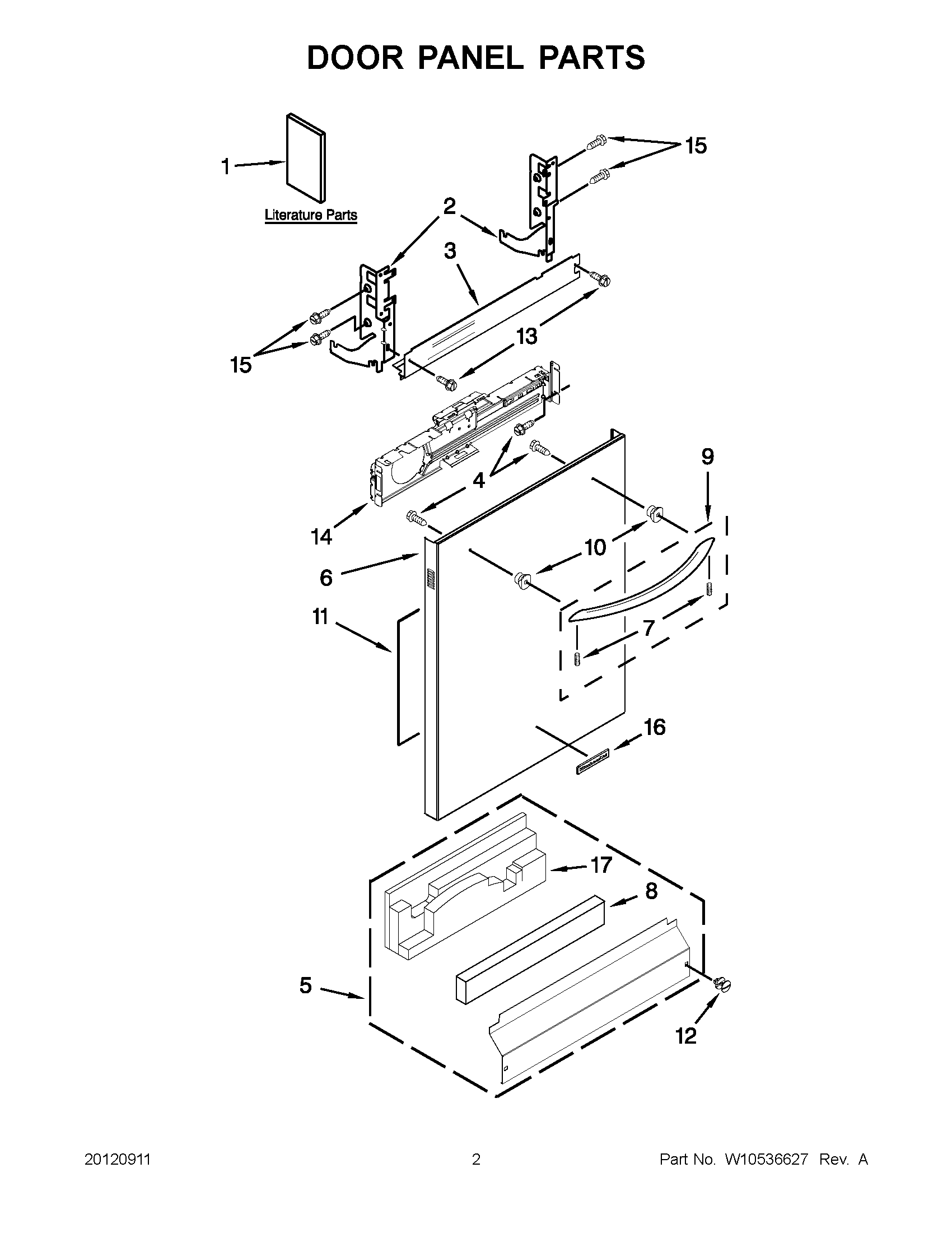

KUDC10FBBL0 01 – DOOR PANEL PARTS

KUDC10FBBL0 01 – DOOR PANEL PARTS

Written by

in

KUDC10FBBL0 01 – DOOR PANEL PARTS

Products

PositionProduct
1TECH SHEET/FRENCH
1INSTRUCTIONS, INSTALLATION
1ENERGY GUIDE
1TECH SHEET/ENGLISH
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5WPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10338286 Whirlpool Dishwasher Panel
6WPW10338287 Whirlpool Dishwasher Panel
6PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (STAINLESS)
7WPW10307614 Whirlpool Dishwasher Screw
9W10195736A Whirlpool Dishwasher Handle
9W10195735A Whirlpool Dishwasher Door Handle Black
9W10195738A Whirlpool Stainless Steel Door Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11WPW10073520 Whirlpool Dishwasher Insulation Pad
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP3390631 Whirlpool Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243391 Whirlpool Refrigerator Nameplate
16WPW10243393 Whirlpool Dishwasher Nameplate
16WPW10243392 Whirlpool Dishwasher Nameplate
17SHIELD
