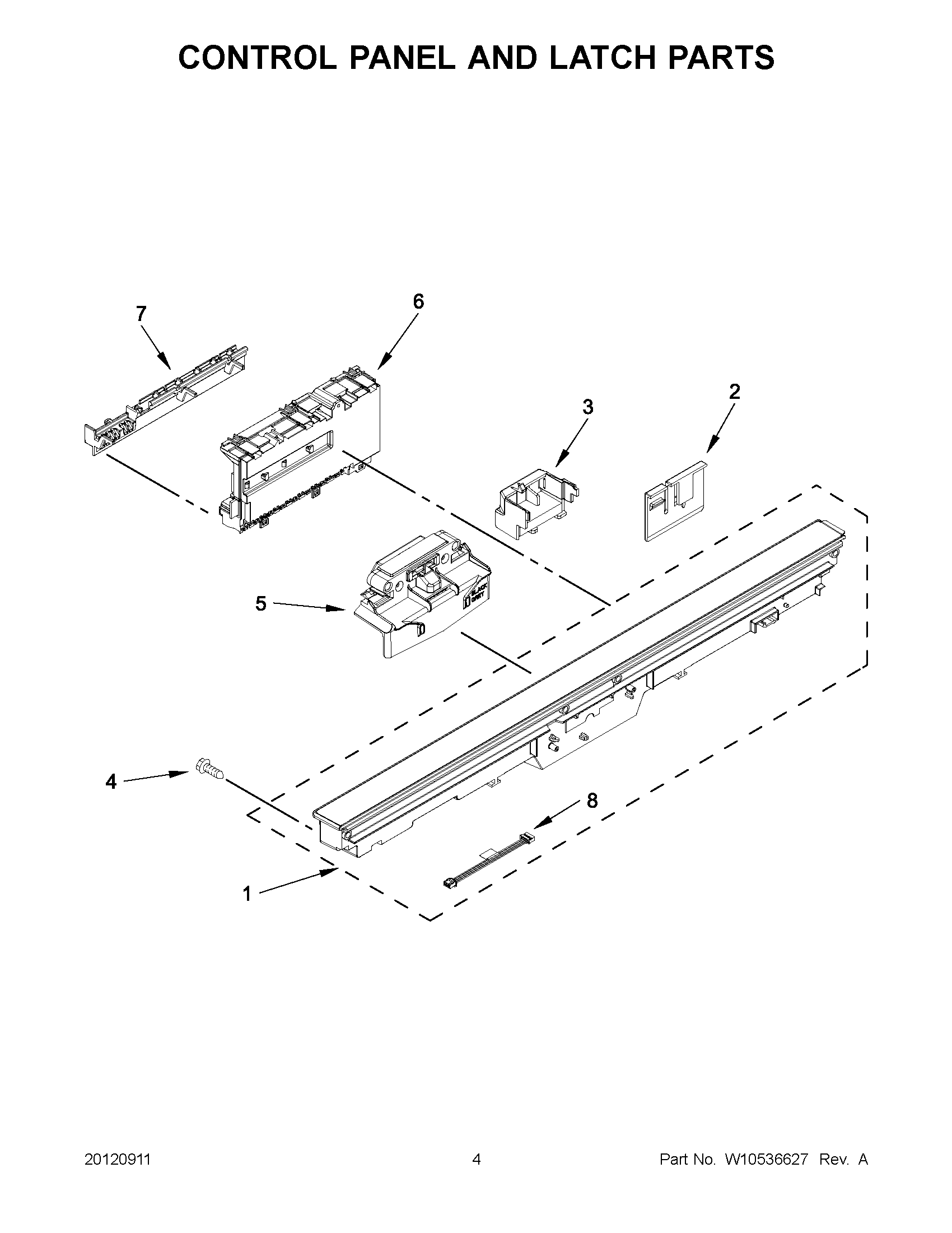

KUDC10FBSS0 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (WHITE)
1	CONSOLE ASSEMBLY (BLACK)
1	CONSOLE ASSEMBLY (STAINLESS)
2	W11256107 Whirlpool Dishwasher Clip
3	W10783730 Whirlpool Dishwasher Connector
4	WPW10348409 Whirlpool Screw
5	W10619006 Whirlpool Door Latch
6	W11035586-includeCORE Whirlpool W11035586 Dishwasher Electronic Control Board + Core
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	W10315814 Whirlpool Dishwasher Wire Harness
