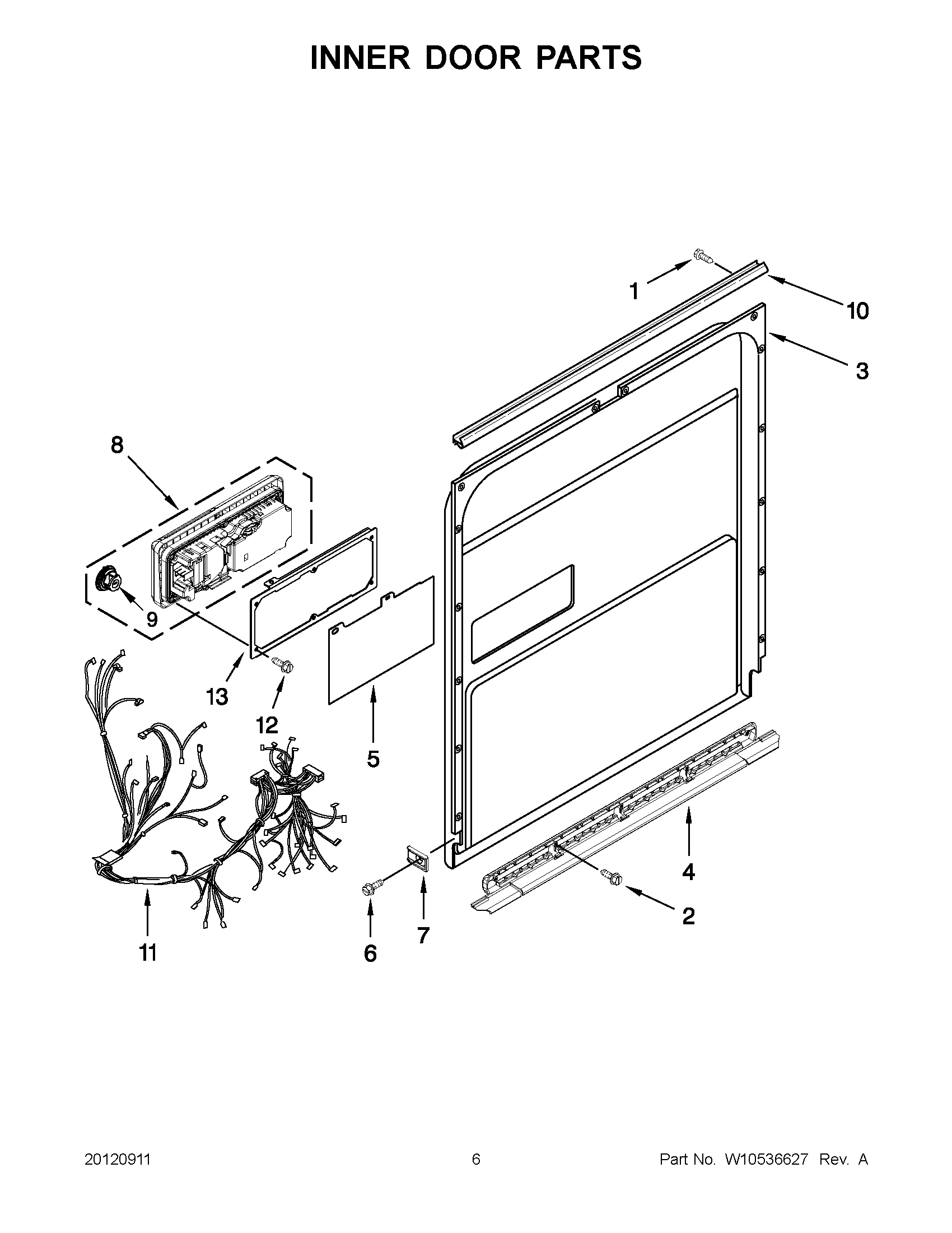

KUDC10FBSS0 03 – INNER DOOR PARTS

KUDC10FBSS0 03 – INNER DOOR PARTS

Written by

in

KUDC10FBSS0 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10309090 Whirlpool Dishwasher Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10482094 Whirlpool Dishwasher Cover
6WP3400071 Whirlpool Screw
7W10195837 Whirlpool Dishwasher Barrier
8DISPENSER (DISHWASHER)
9WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
10WPW10195007 Whirlpool Dishwasher Seal
11W10871222 Whirlpool Dishwasher Wire Harness
12WPW10177098 Whirlpool Dishwasher Screw
13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
