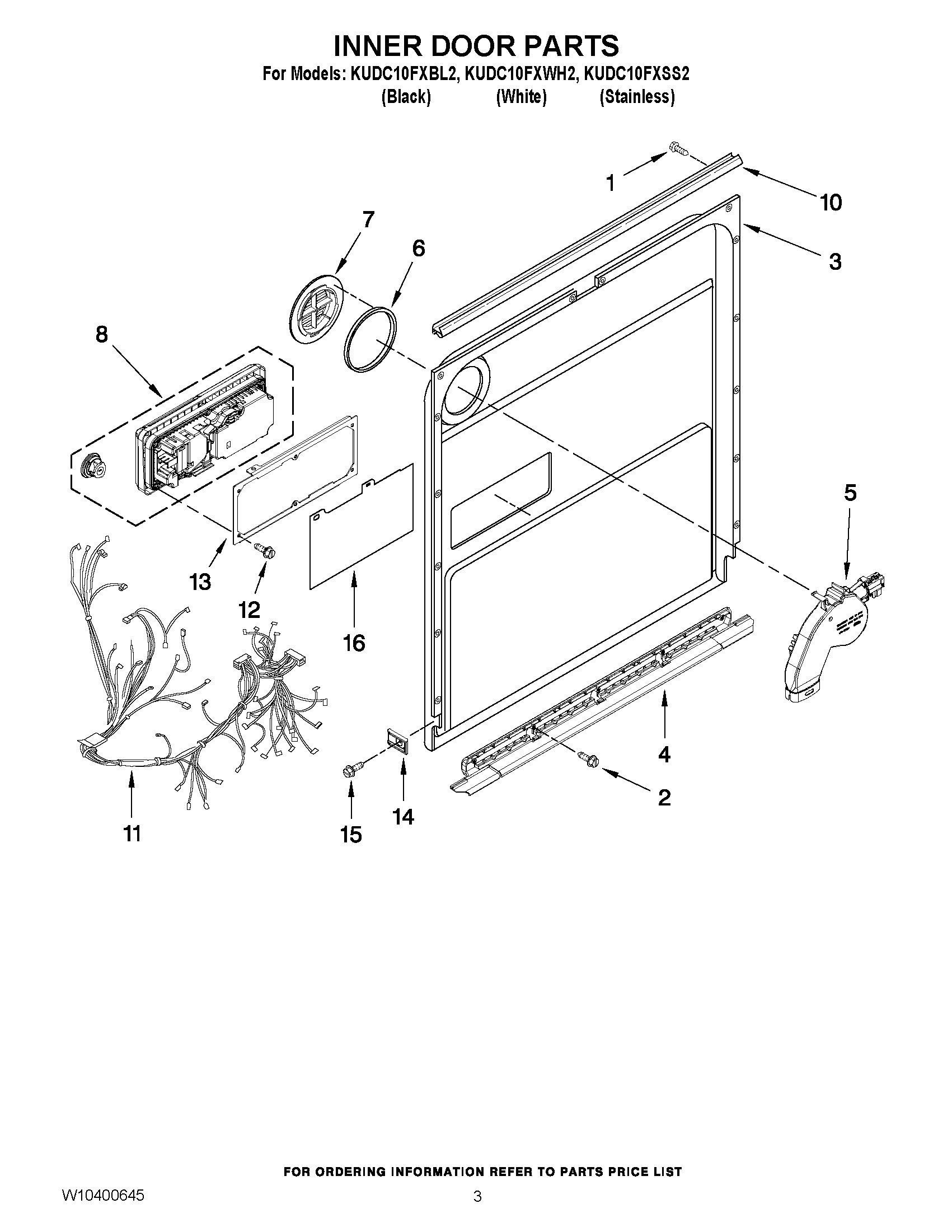

KUDC10FXBL2 03 – INNER DOOR PARTSadmin2025-04-26T12:59:40+00:00KUDC10FXBL2 03 – INNER DOOR PARTS ProductsPositionProduct1WPW10348409 Whirlpool Screw2W11631670 Whirlpool Screw3WPW10467363 Whirlpool Dishwasher Inner Door4WPW10497235 Whirlpool Dishwasher Lower Door Seal5WPW10469575 Whirlpool Dishwasher Vent6WP8269259 Whirlpool Air Vent Gasket7WPW10195032 Whirlpool Dishwasher Deflector8DISPENSER (DISHWASHER)10WPW10195007 Whirlpool Dishwasher Seal11WPW10330847 Whirlpool Dishwasher Wire Harness12WPW10177098 Whirlpool Dishwasher Screw13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket14W10195837 Whirlpool Dishwasher Barrier15WP3400071 Whirlpool Screw16W10385977 Whirlpool Dishwasher Cover Assembly
