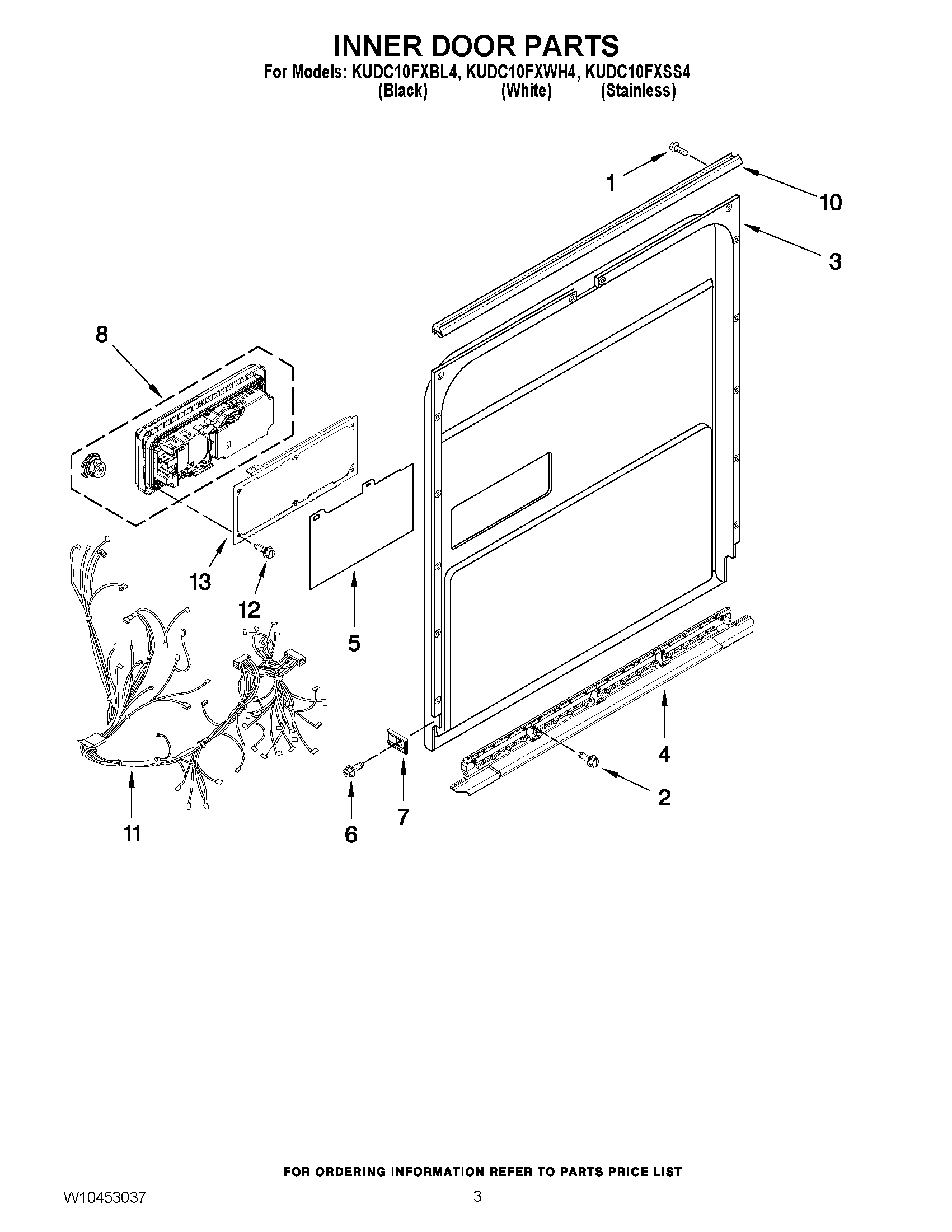

KUDC10FXBL4 03 – INNER DOOR PARTSadmin2025-04-26T13:00:44+00:00KUDC10FXBL4 03 – INNER DOOR PARTS ProductsPositionProduct1WPW10348409 Whirlpool Screw2W11631670 Whirlpool Screw3WPW10480715 Whirlpool Dishwasher Inner Door4WPW10497235 Whirlpool Dishwasher Lower Door Seal5W10385977 Whirlpool Dishwasher Cover Assembly6WP3400071 Whirlpool Screw7W10195837 Whirlpool Dishwasher Barrier8DISPENSER (DISHWASHER)10WPW10195007 Whirlpool Dishwasher Seal11WIRING HARNESS12WPW10177098 Whirlpool Dishwasher Screw13WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
