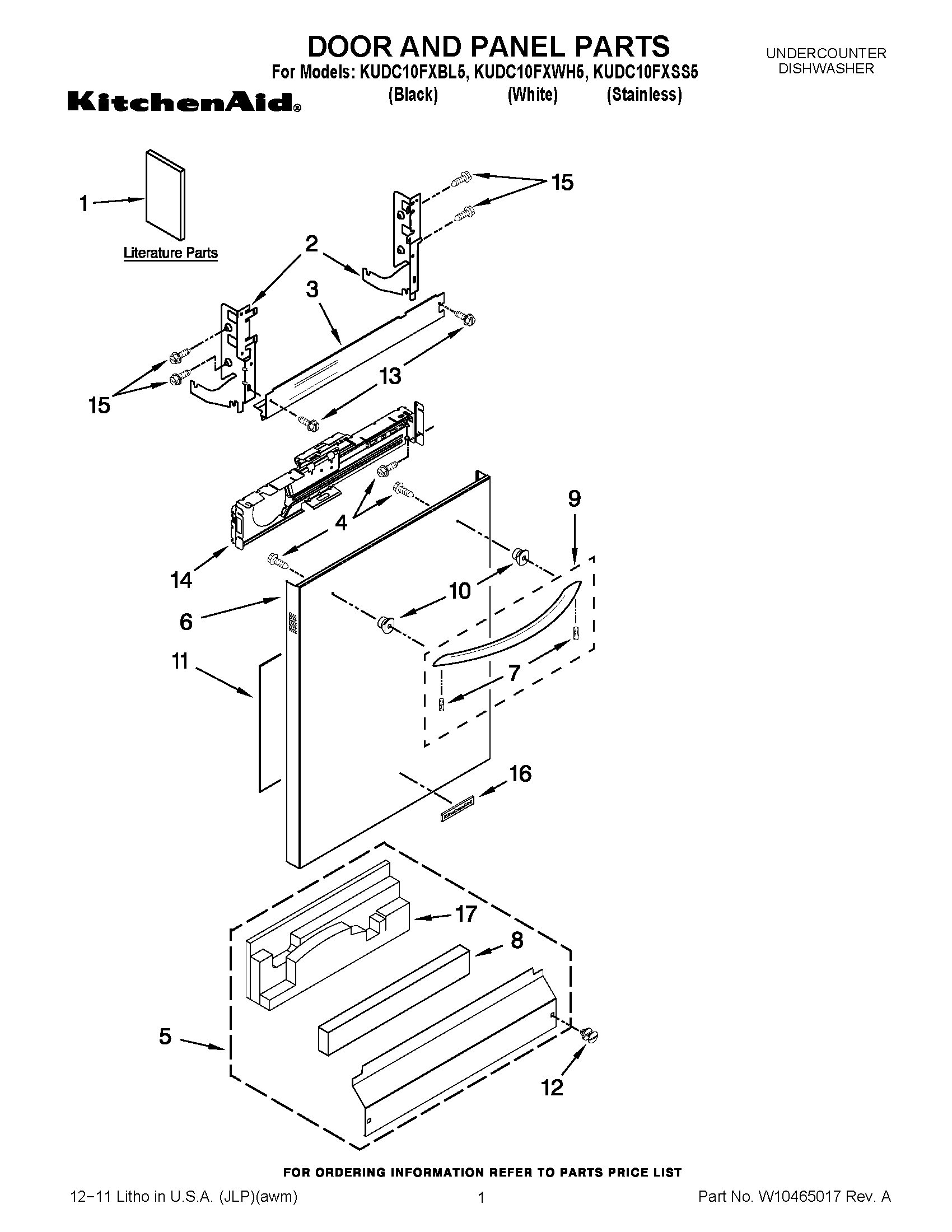

KUDC10FXBL5 01 – DOOR AND PANEL PARTS

KUDC10FXBL5 01 – DOOR AND PANEL PARTS

Written by

in

KUDC10FXBL5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/FRENCH
1TECH SHEET/ENGLISH
1ENERGY GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5WPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (STAINLESS)
6WPW10338286 Whirlpool Dishwasher Panel
6WPW10338287 Whirlpool Dishwasher Panel
7WPW10307614 Whirlpool Dishwasher Screw
9W10195735A Whirlpool Dishwasher Door Handle Black
9W10195736A Whirlpool Dishwasher Handle
9W10195738A Whirlpool Stainless Steel Door Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11WPW10073520 Whirlpool Dishwasher Insulation Pad
12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP3390631 Whirlpool Screw
14W11116870 Whirlpool Dishwasher Control Bracket
15WP3400071 Whirlpool Screw
16WPW10243393 Whirlpool Dishwasher Nameplate
16WPW10243392 Whirlpool Dishwasher Nameplate
16WPW10243391 Whirlpool Refrigerator Nameplate
17SHIELD
