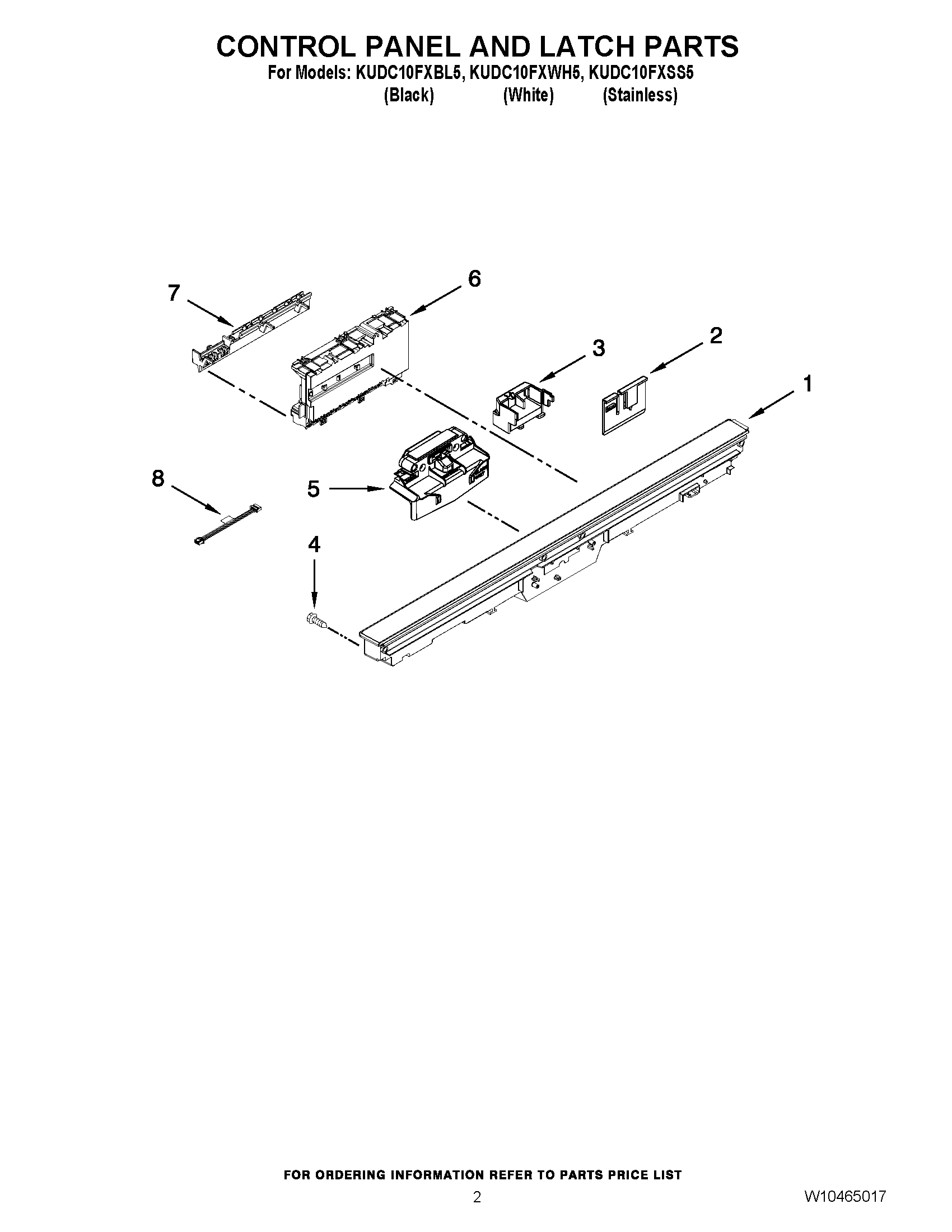

KUDC10FXBL5 02 – CONTROL PANEL AND LATCH PARTS

KUDC10FXBL5 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDC10FXBL5 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (WHITE)
1CONSOLE ASSEMBLY (BLACK)
1CONSOLE ASSEMBLY (STAINLESS)
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W11035586-includeCORE Whirlpool W11035586 Dishwasher Electronic Control Board + Core
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195666 Whirlpool Dishwasher Wire Assembly
