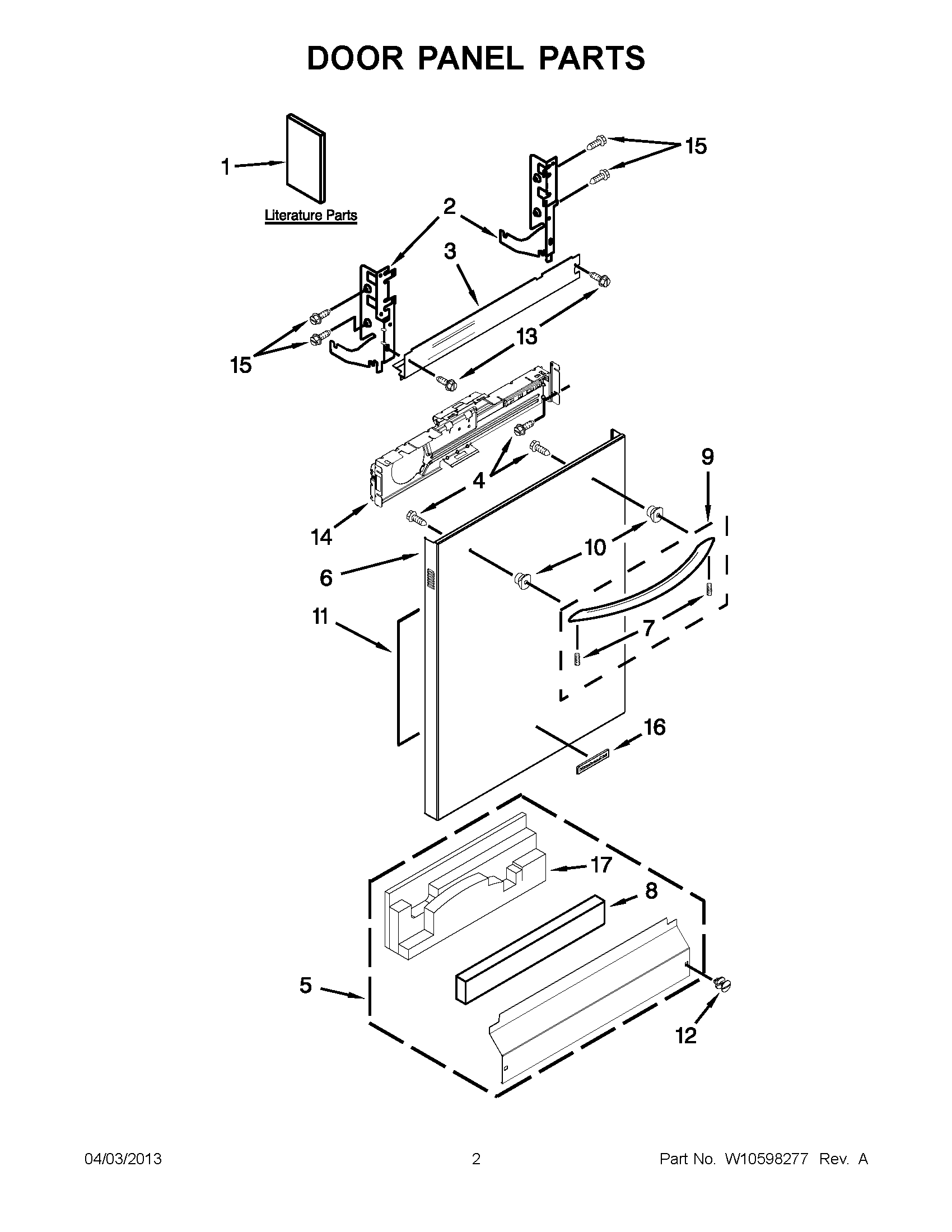

KUDC10FXBL6 01 – DOOR PANEL PARTSadmin2025-04-26T13:00:15+00:00KUDC10FXBL6 01 – DOOR PANEL PARTS ProductsPositionProduct1ENERGY GUIDE1INSTRUCTIONS, INSTALLATION1TECH SHEET, FRENCH1TECH SHEET, ENGLISH1GUIDE, USE & CARE (SPANISH)1GUIDE, USE & CARE (ENGLISH/FRENCH)2W11612302 Whirlpool Dishwasher Door Hinge2W11612303 Whirlpool Door Hinge3W10850371 Whirlpool Dishwasher Door Brace4W10826179 Whirlpool Dishwasher Screw5WPW10526115 Whirlpool Dishwasher Panel5WPW10526114 Whirlpool Dishwasher Access Panel6WPW10338286 Whirlpool Dishwasher Panel6WPW10338287 Whirlpool Dishwasher Panel6PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (STAINLESS)7WPW10307614 Whirlpool Dishwasher Screw9W10195736A Whirlpool Dishwasher Handle9W10195735A Whirlpool Dishwasher Door Handle Black9W10195738A Whirlpool Stainless Steel Door Handle10W11157086 Whirlpool Dishwasher Door Handle Stud11WPW10073520 Whirlpool Dishwasher Insulation Pad12WPW10503548 Whirlpool Dishwasher Panel Retainer Clip12WPW10503549 Whirlpool Dishwasher Retainer Clip13WP3390631 Whirlpool Screw14W11116870 Whirlpool Dishwasher Control Bracket15WP3400071 Whirlpool Screw16WPW10243391 Whirlpool Refrigerator Nameplate16WPW10243393 Whirlpool Dishwasher Nameplate16WPW10243392 Whirlpool Dishwasher Nameplate17SHIELD
