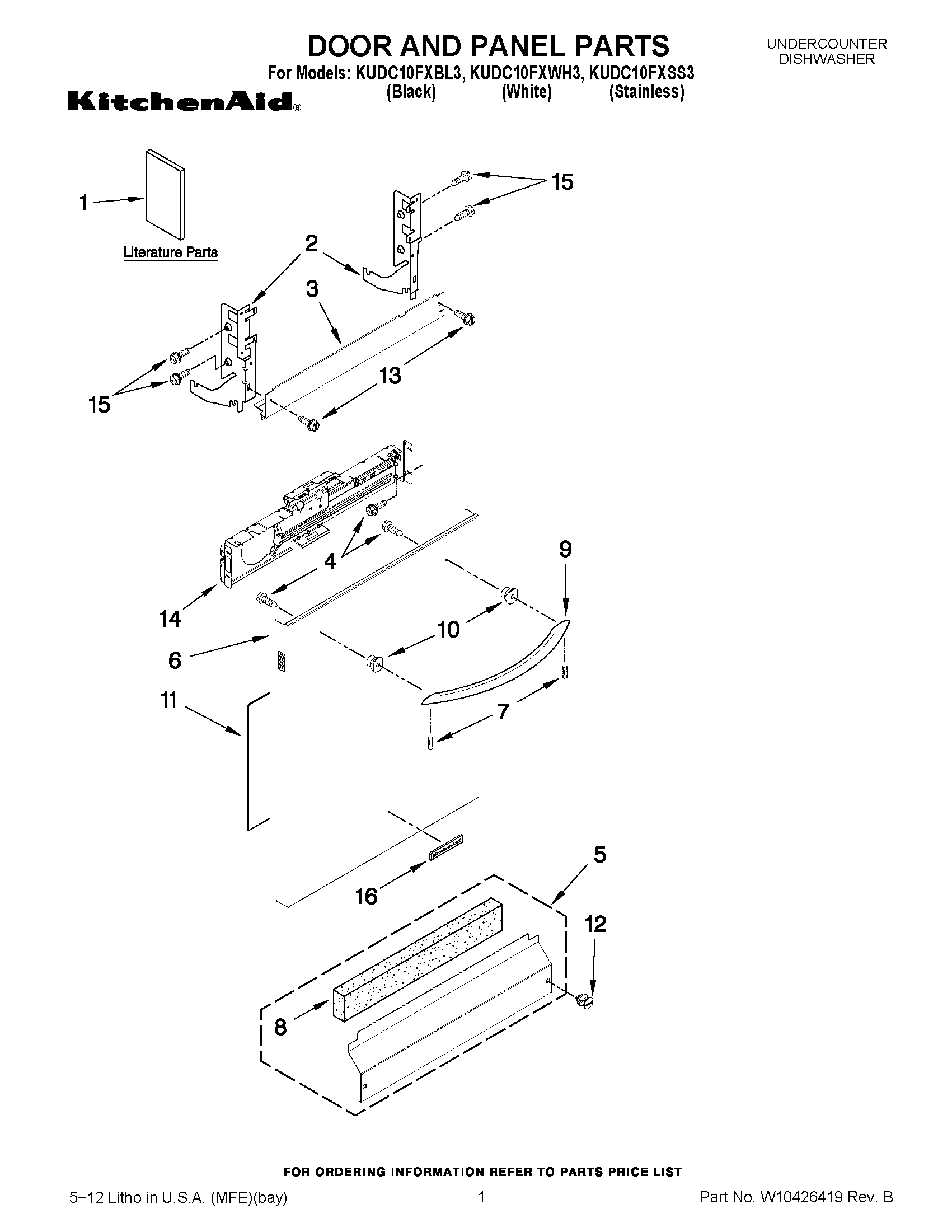

KUDC10FXSS3 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	INSTRUCTIONS, INSTALLATION
1	TECH SHEET/FRENCH
1	TECH SHEET/ENGLISH
1	GUIDE, USE & CARE (SPANISH)
1	GUIDE, USE & CARE (ENGLISH/FRENCH)
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W10826179 Whirlpool Dishwasher Screw
5	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6	WPW10338286 Whirlpool Dishwasher Panel
6	WPW10338287 Whirlpool Dishwasher Panel
6	PANEL, FRONT (INCLUDES ITEMS 4, 10 & 16) (STAINLESS)
7	WPW10307614 Whirlpool Dishwasher Screw
8	SHIELD
9	W10195736A Whirlpool Dishwasher Handle
9	W10195738A Whirlpool Stainless Steel Door Handle
9	W10195735A Whirlpool Dishwasher Door Handle Black
10	W11157086 Whirlpool Dishwasher Door Handle Stud
11	W11126003 Whirlpool Dishwasher Insulation Pad
12	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	WP489069 Whirlpool Compactor Screw
14	W11116870 Whirlpool Dishwasher Control Bracket
15	WP3400071 Whirlpool Screw
16	WPW10243391 Whirlpool Refrigerator Nameplate
16	WPW10243393 Whirlpool Dishwasher Nameplate
16	WPW10243392 Whirlpool Dishwasher Nameplate
