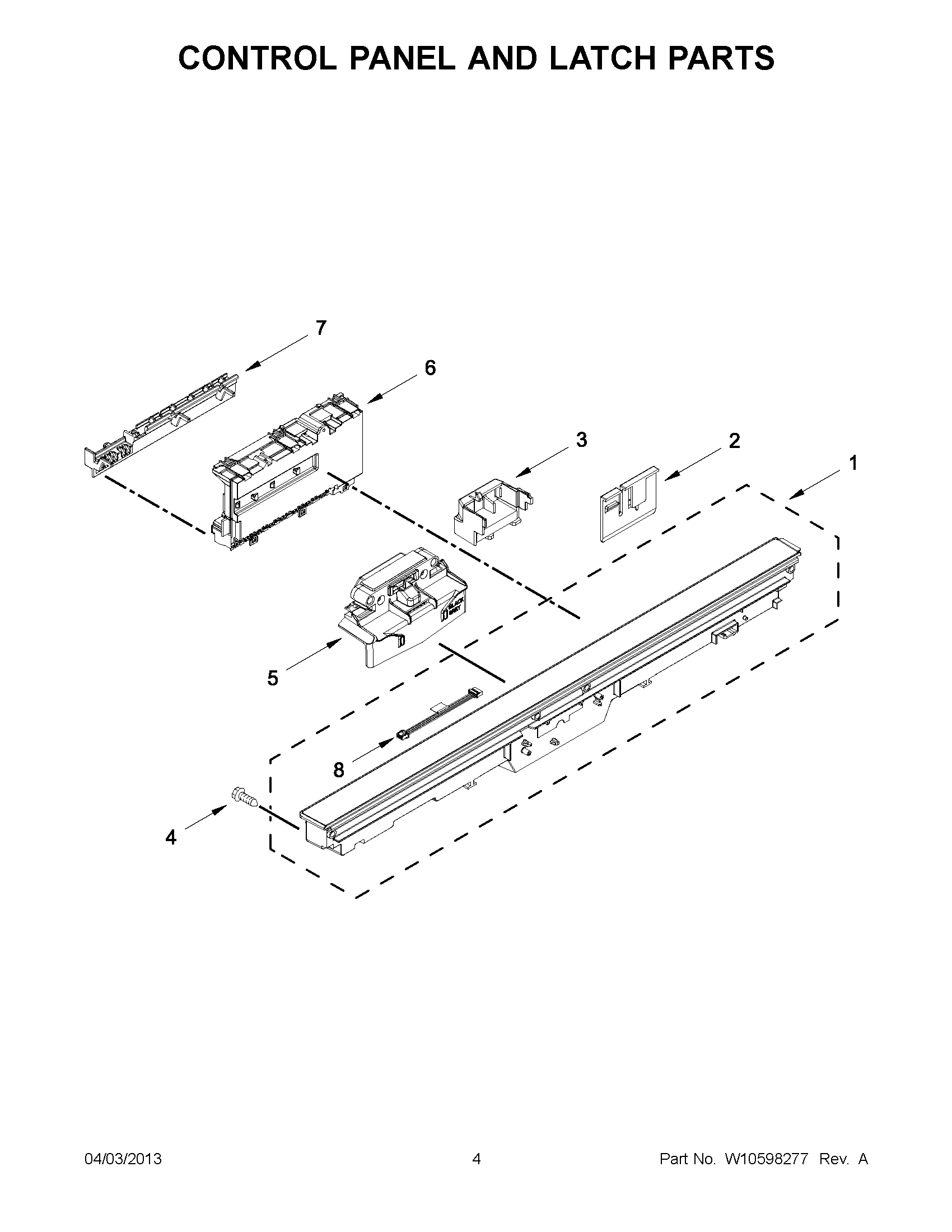

KUDC10FXSS6 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
1CONSOLE ASSEMBLY (INCLUDES INSERT) (WHITE)
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W11035586-includeCORE Whirlpool W11035586 Dishwasher Electronic Control Board + Core
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10315814 Whirlpool Dishwasher Wire Harness
