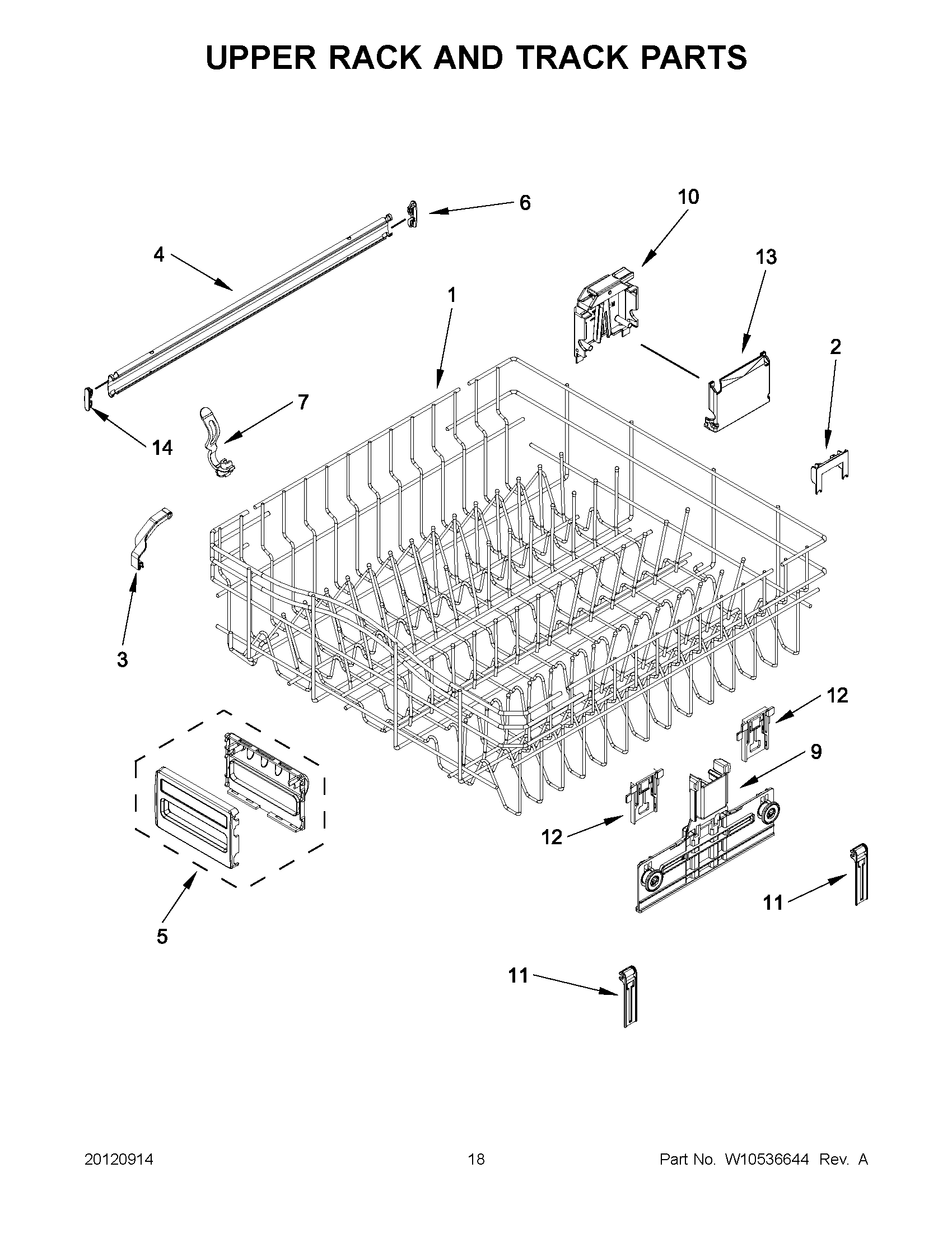

KUDC10IBBL0 09 – UPPER RACK AND TRACK PARTS

KUDC10IBBL0 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDC10IBBL0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1WPW10312792 Whirlpool Dishwasher Dishrack
2WPW10250160 Whirlpool Clip
3WPW10267076 Whirlpool Guard Clip
4WP3385089 Whirlpool Track
5W11110542 Whirlpool Dishwasher Handle
6WP8565925 Whirlpool Slide Rail Stop
7WPW10077844 Whirlpool Dishwasher Clip
9W10712395 Whirlpool Dishwasher Dishrack Adjuster
10WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
10WPW10588165 Whirlpool Adjuster Housing
11WPW10195839 Whirlpool Dishwasher Rack Adjuster
12WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
13COVER
