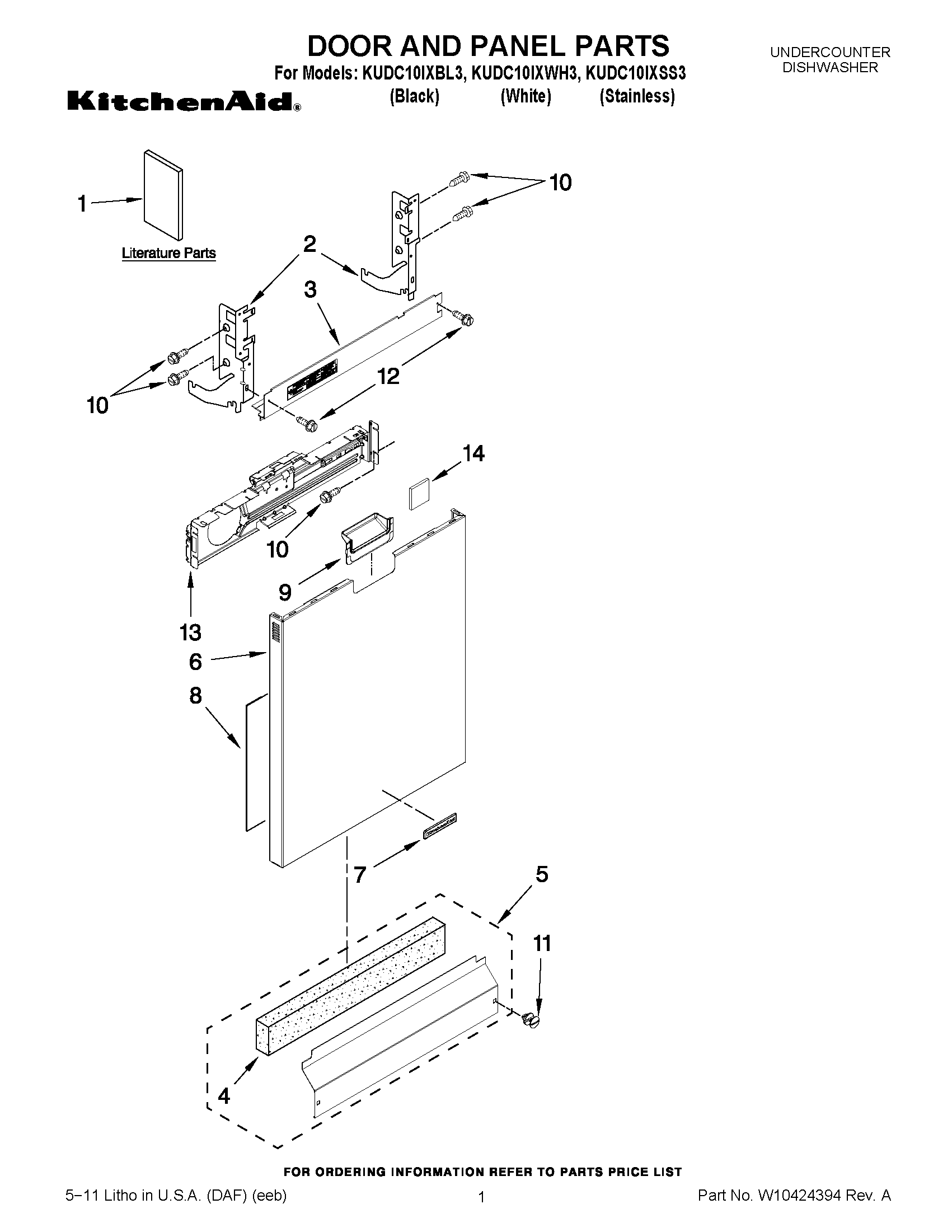

KUDC10IXBL3 01 – DOOR AND PANEL PARTS

KUDC10IXBL3 01 – DOOR AND PANEL PARTS

Written by

in

KUDC10IXBL3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/ENGLISH
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1ENERGY GUIDE
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5WPW10526114 Whirlpool Dishwasher Access Panel
5WPW10526115 Whirlpool Dishwasher Panel
6WPW10195532 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES 9 & 14) (WHITE)
6WPW10195531 Whirlpool Dishwasher Panel
7WPW10243392 Whirlpool Dishwasher Nameplate
7WPW10243391 Whirlpool Refrigerator Nameplate
7WPW10243393 Whirlpool Dishwasher Nameplate
8W11126003 Whirlpool Dishwasher Insulation Pad
9POCKET ASSEMBLY (WHITE)
9W10195653 Whirlpool Dishwasher Handle Pocket
9W10563099 Whirlpool Dishwasher Pocket Handle
10WP3400071 Whirlpool Screw
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
11WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP489069 Whirlpool Compactor Screw
13W11116870 Whirlpool Dishwasher Control Bracket
14BLOCK, FOAM
