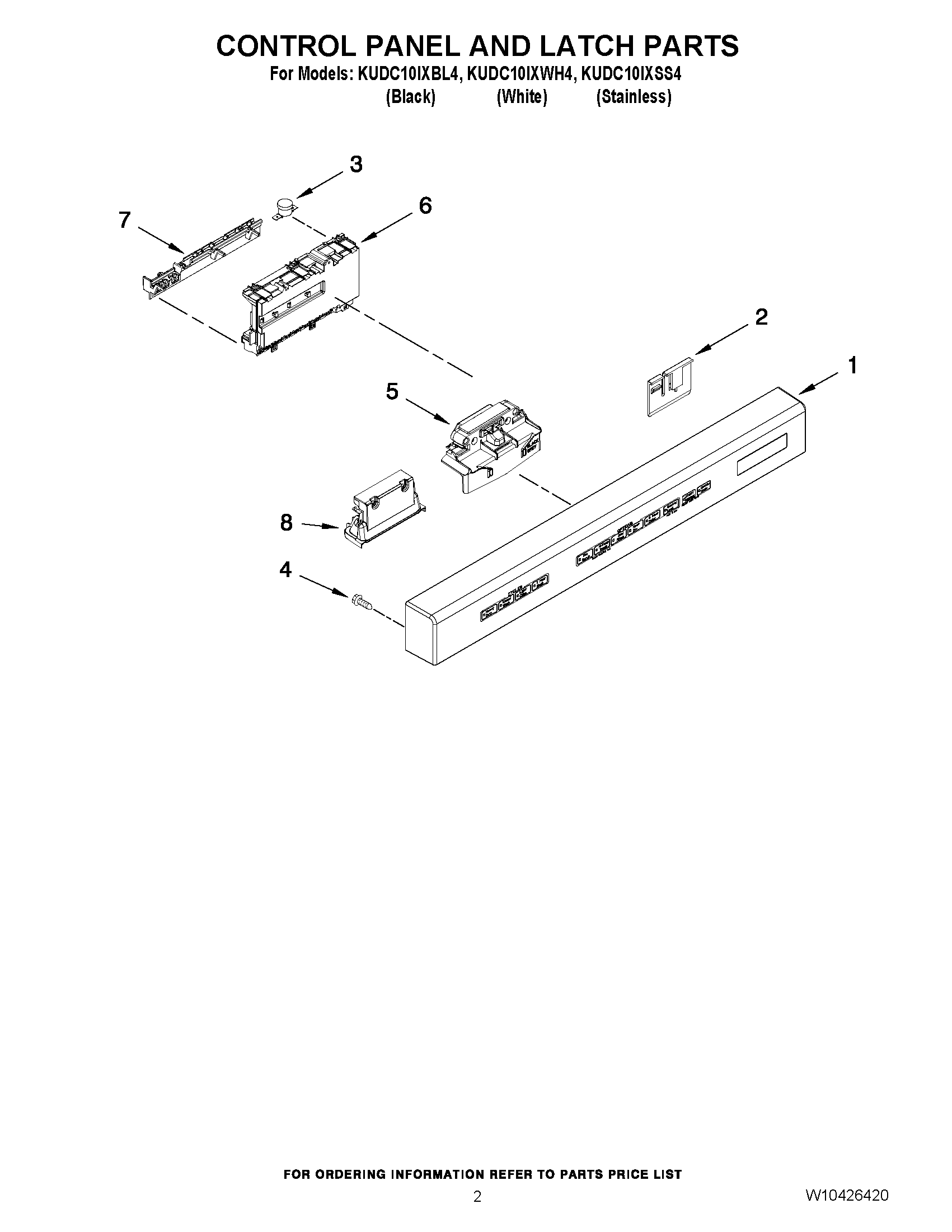

KUDC10IXBL4 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	WPW10500178 Whirlpool Dishwasher Control Panel
1	WPW10500177 Whirlpool Dishwasher Control Panel
1	WPW10500176 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
4	WPW10348409 Whirlpool Screw
5	W10619006 Whirlpool Door Latch
6	WPW10380685 Whirlpool Dishwasher Electronic Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	WPW10195718 Whirlpool Dishwasher Handle
8	HANDLE (WHITE)
8	HANDLE (STAINLESS)
