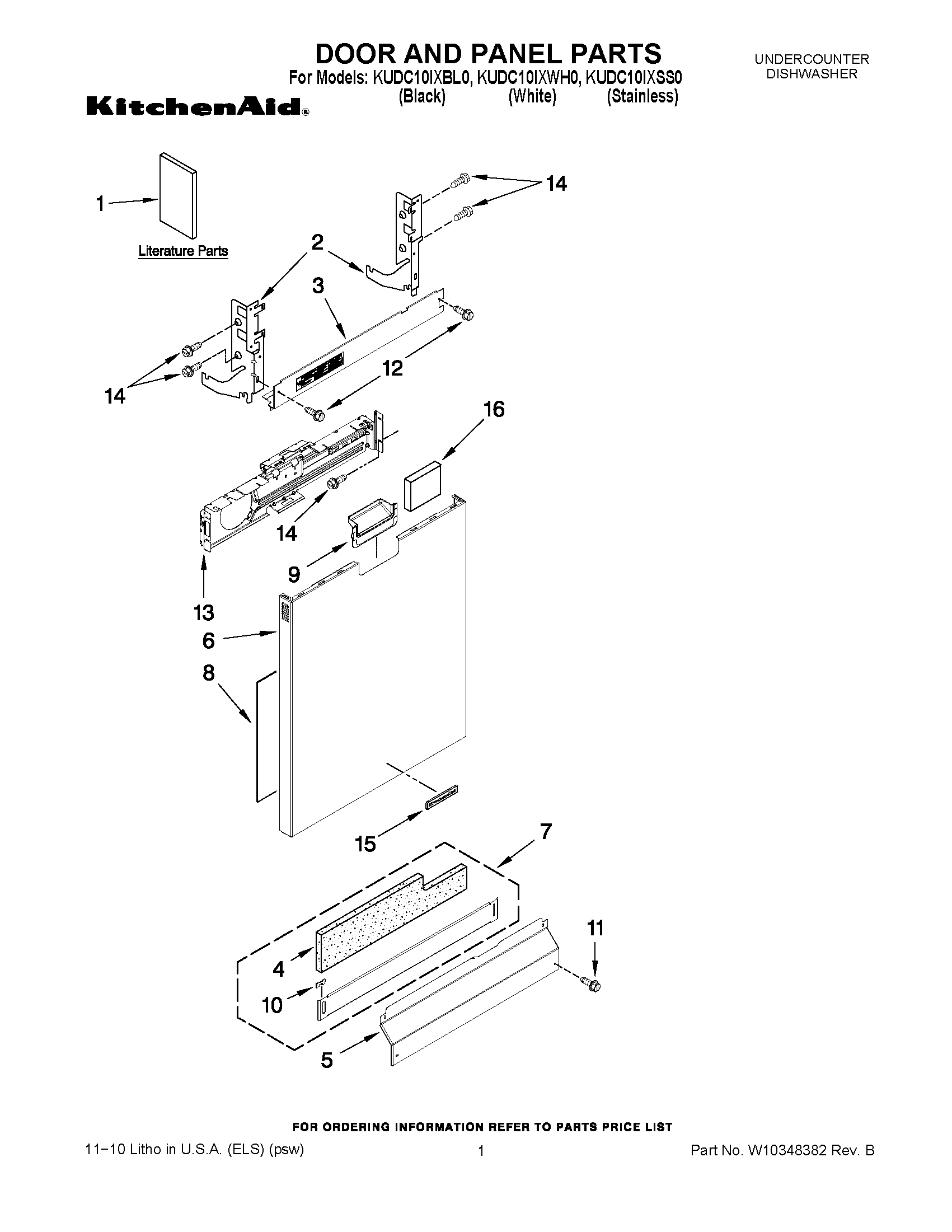

KUDC10IXSS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1TECH SHEET/ENGLISH
1TECH SHEET/FRENCH
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1ENERGY GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5W10909066 Whirlpool Dishwasher Panel
6PANEL, FULL FRONT (INCLUDES 9 & 14) (WHITE)
6WPW10195532 Whirlpool Dishwasher Panel
6WPW10195531 Whirlpool Dishwasher Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
7WPW10586591 Whirlpool Dishwasher Toe Panel
8W11126003 Whirlpool Dishwasher Insulation Pad
9W10563099 Whirlpool Dishwasher Pocket Handle
9POCKET ASSEMBLY (WHITE)
9W10195653 Whirlpool Dishwasher Handle Pocket
10WP8269016 Whirlpool Clip Assembly
11WP302868 Whirlpool Screw
11WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP489069 Whirlpool Compactor Screw
13W11116870 Whirlpool Dishwasher Control Bracket
14WP3400071 Whirlpool Screw
15WPW10243391 Whirlpool Refrigerator Nameplate
15WPW10243392 Whirlpool Dishwasher Nameplate
15WPW10243393 Whirlpool Dishwasher Nameplate
16BLOCK, FOAM
