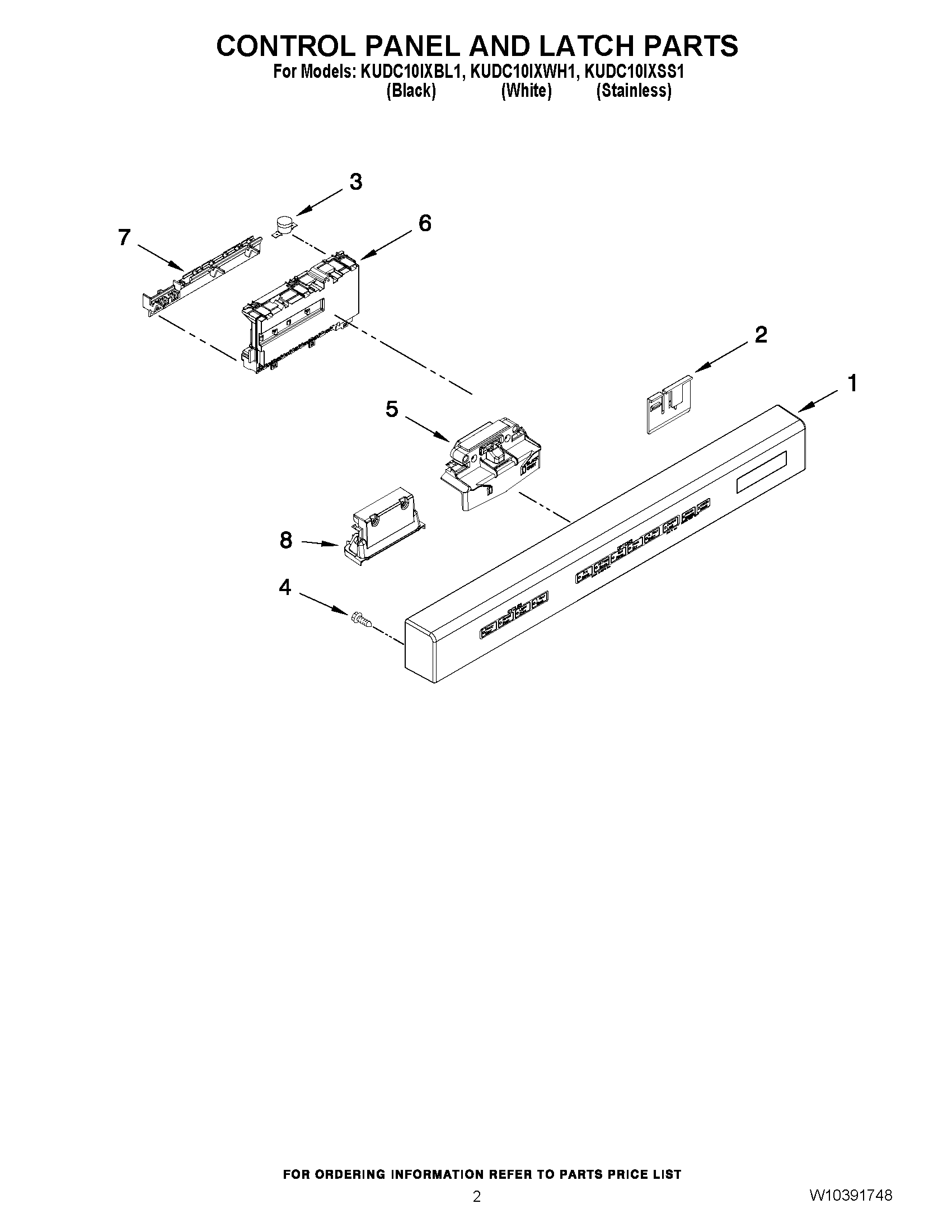

KUDC10IXSS1 02 – CONTROL PANEL AND LATCH PARTS

KUDC10IXSS1 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDC10IXSS1 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10500178 Whirlpool Dishwasher Control Panel
1WPW10500177 Whirlpool Dishwasher Control Panel
1WPW10500176 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6WPW10380685 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8WPW10195718 Whirlpool Dishwasher Handle
8HANDLE (WHITE)
8HANDLE (STAINLESS)
