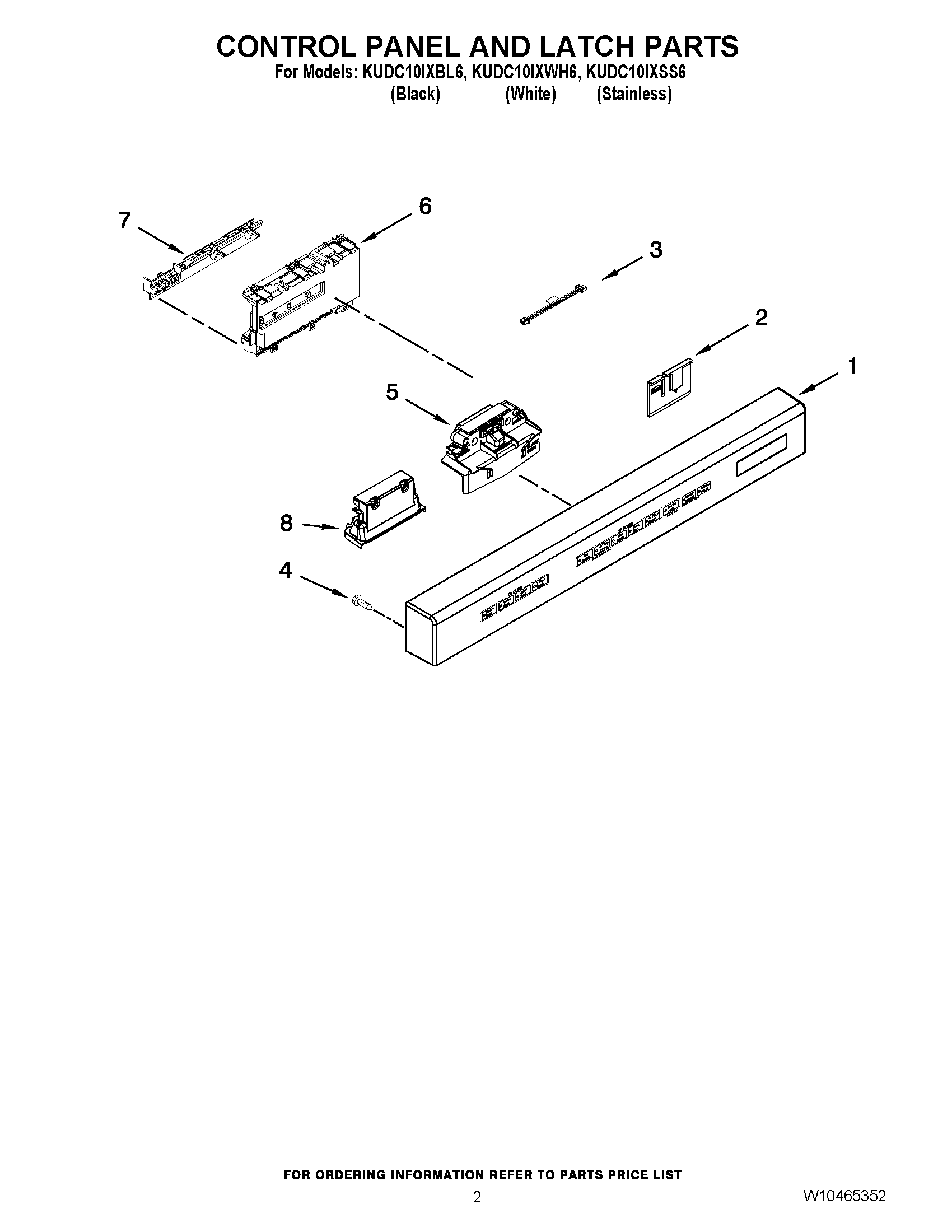

KUDC10IXWH6 02 – CONTROL PANEL AND LATCH PARTS

KUDC10IXWH6 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDC10IXWH6 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10500178 Whirlpool Dishwasher Control Panel
1WPW10500177 Whirlpool Dishwasher Control Panel
1WPW10500176 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3WPW10195666 Whirlpool Dishwasher Wire Assembly
4WPW10348409 Whirlpool Screw
5W10619006 Whirlpool Door Latch
6W11035586-includeCORE Whirlpool W11035586 Dishwasher Electronic Control Board + Core
7WPW10194937 Whirlpool Dishwasher Control Bracket
8HANDLE (WHITE)
8WPW10195718 Whirlpool Dishwasher Handle
8HANDLE (STAINLESS)
