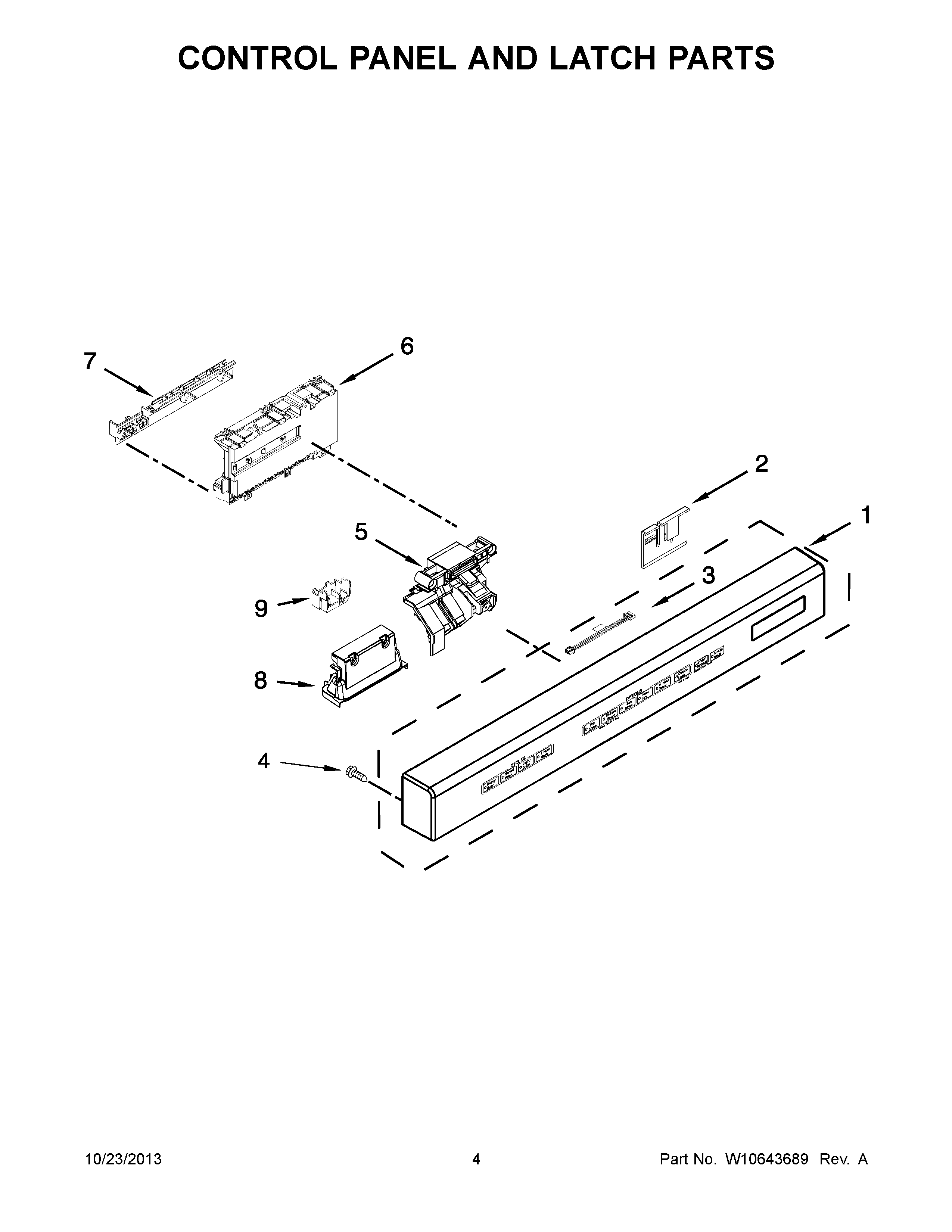

KUDC10IXWH9 03 – CONTROL PANEL AND LATCH PARTS

KUDC10IXWH9 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KUDC10IXWH9 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10500178 Whirlpool Dishwasher Control Panel
1WPW10500177 Whirlpool Dishwasher Control Panel
1WPW10500176 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10528492 Whirlpool Dishwasher Wire
4WPW10348409 Whirlpool Screw
5WPW10653840 Whirlpool Door Latch
6W11035586-includeCORE Whirlpool W11035586 Dishwasher Electronic Control Board + Core
7WPW10194937 Whirlpool Dishwasher Control Bracket
8HANDLE (WHITE)
8HANDLE (STAINLESS)
8WPW10195718 Whirlpool Dishwasher Handle
9W10783730 Whirlpool Dishwasher Connector
