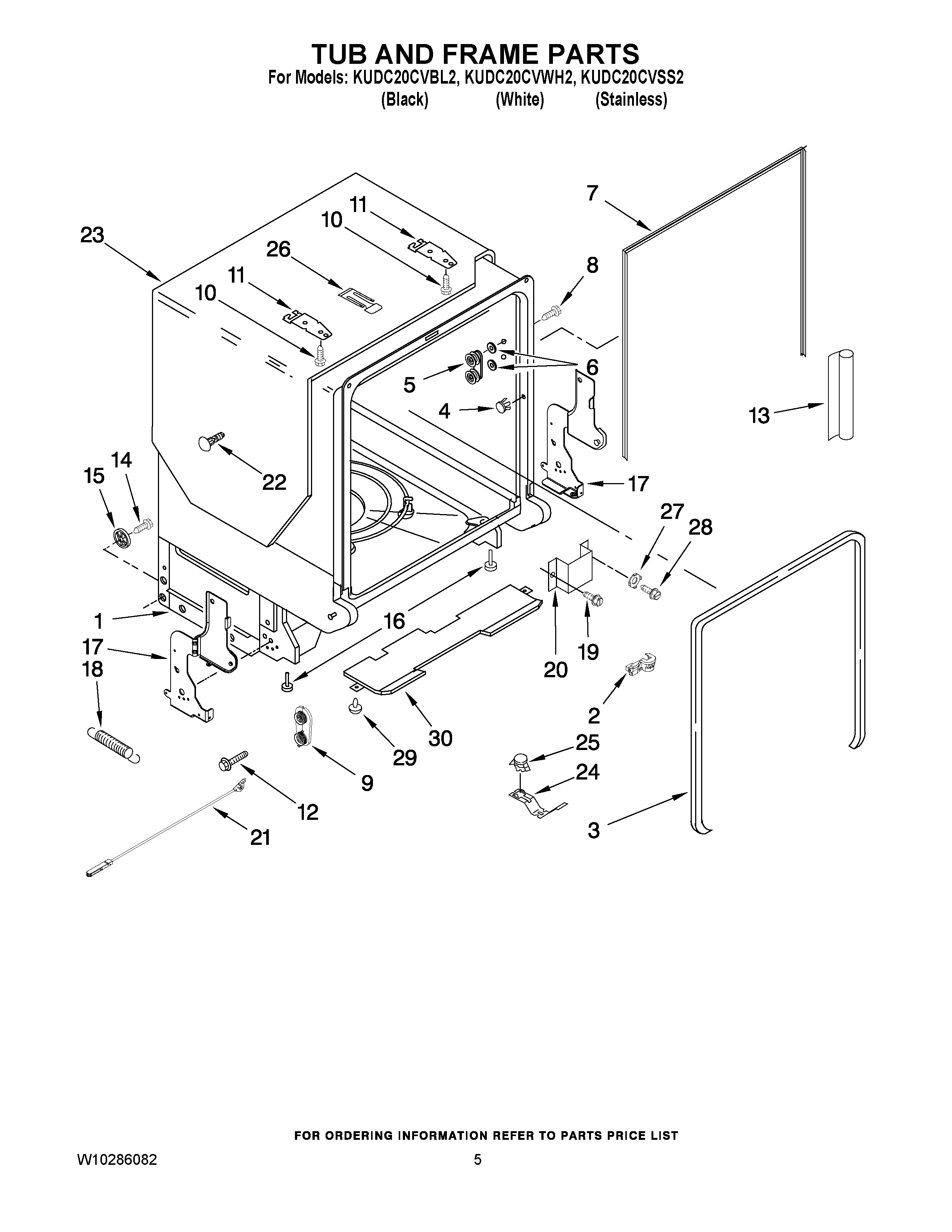

KUDC20CVBL2 05 – TUB AND FRAME PARTS

KUDC20CVBL2 05 – TUB AND FRAME PARTS

Written by

in

KUDC20CVBL2 05 – TUB AND FRAME PARTS

Products

PositionProduct
1Tub Assembly (Includes Heater Assembly)
2W11384788 Whirlpool Dishwasher Relief Strainer
3W11196317 Whirlpool Dishwasher Door Gasket
4W10795980 Whirlpool Cap
5WPW10078083 Whirlpool Dishwasher Dishrack Wheel
6WP9743002 Whirlpool Dishwasher Gasket
7SEAL
8WPW10348407 Whirlpool Dishwasher Screw
9WPW10084086 Whirlpool Dishwasher Mount
10WP308685 Whirlpool Microwave Screw
11WP8269145 Whirlpool Dishwasher Mounting Bracket
12WP3400074 Whirlpool Dishwasher Screw
13Barrier, Moisture Undercounter
14Screw (2)
15WP8268977 Whirlpool Dishwasher Wheel
168193716 Whirlpool Leveling Leg
17BRACKET, HINGE LH
17BRACKET, HINGE RH
18SPRING
19WP3400892 Whirlpool Dishwasher Screw
20WP8268991 Whirlpool Dishwasher Cover Assembly
218194001 Whirlpool Dishwasher Door Balance Link Kit
22WP304666 Whirlpool Dishwasher Retainer
23W10877094 Whirlpool Shield
249742648 Whirlpool Dishwasher Stat Bracket
25WP661566 Whirlpool High Limit Thermostat
26Strike, Latch
27WP3378128 Whirlpool Dishwasher Washer
28WP3400014 Whirlpool Dishwasher Screw
29WP3400924 Whirlpool Dishwasher Retainer
30WPW10746770 Whirlpool Insulation Pad
