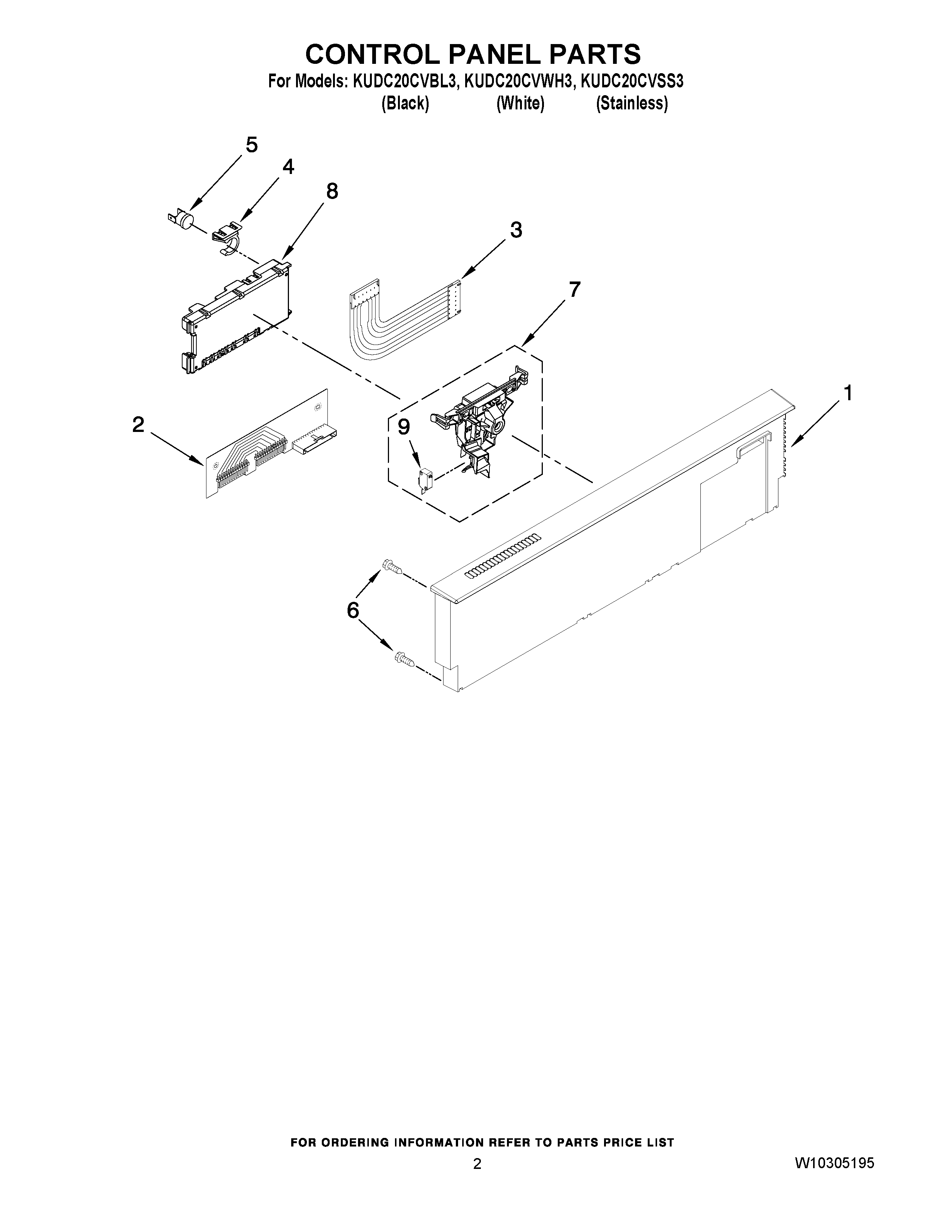

KUDC20CVBL3 02 – CONTROL PANEL PARTS

KUDC20CVBL3 02 – CONTROL PANEL PARTS

Written by

in

KUDC20CVBL3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASM. (WHITE)
1WP8572349 Whirlpool Dishwasher Control Panel
1WPW10084124 Whirlpool Dishwasher Console
2WP8531873 Whirlpool Dishwasher Control Board
3CABLE-RIBBON
4Clip, BI-Metal
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WPW10348409 Whirlpool Screw
7WPW10404412 Whirlpool Door Latch
8WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
9WPW10134019 Whirlpool Dishwasher Switch
