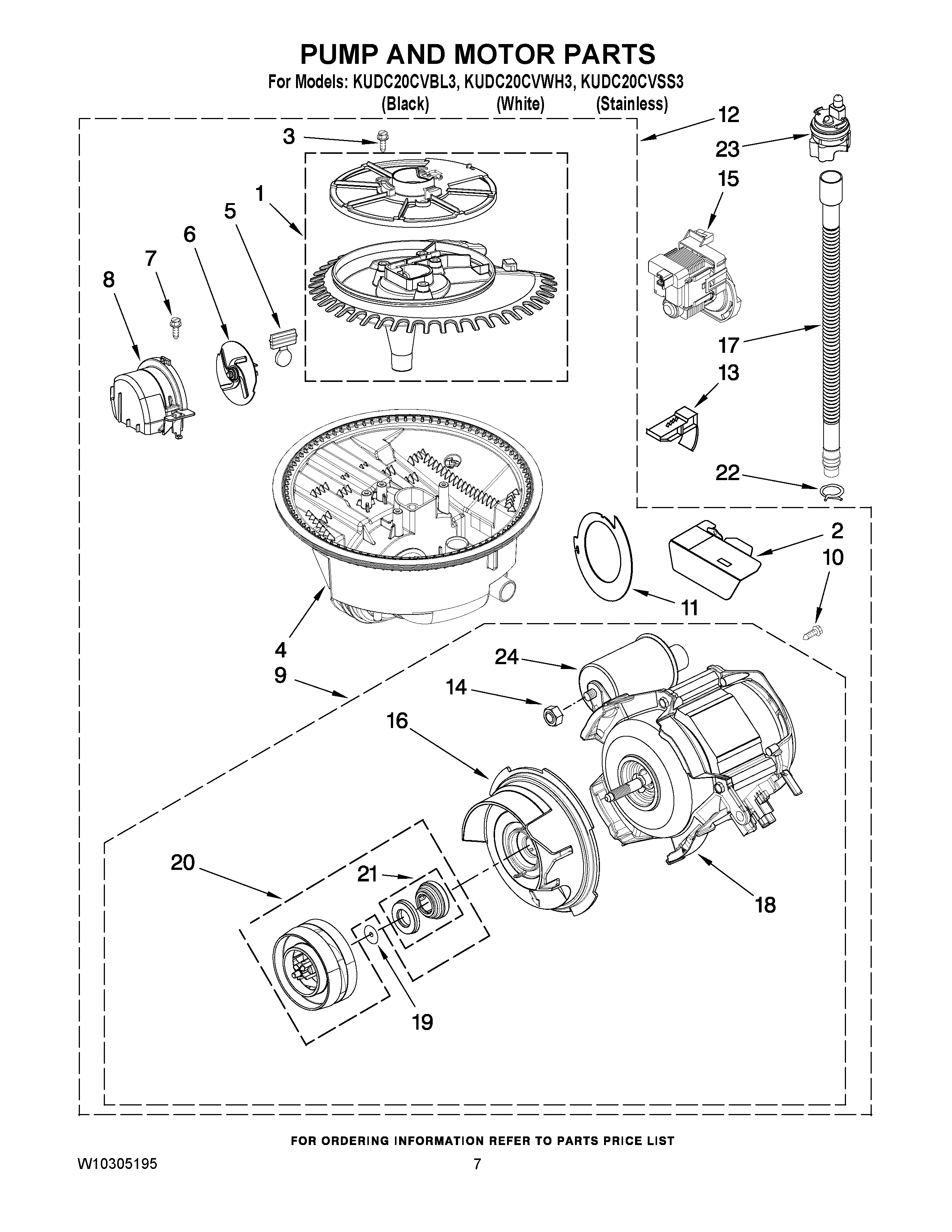

KUDC20CVBL3 06 – PUMP AND MOTOR PARTS

KUDC20CVBL3 06 – PUMP AND MOTOR PARTS

Written by

in

KUDC20CVBL3 06 – PUMP AND MOTOR PARTS

Products

PositionProduct
18193918 Whirlpool Accumulator
28283527 Whirlpool Shield
3Screw
4WP8572618 Whirlpool Dishwasher Sump Assembly
5WP8268375 Whirlpool Dishwasher Check Valve
6W10083957V Whirlpool Dishwasher Chopper
7WP9741232 Whirlpool Dishwasher Screw
8WP8531857 Whirlpool Dishwasher Protector
9WPW10757217 Whirlpool Circulation Pump and Motor
103400217 Whirlpool Dishwasher Screw
11W10084567 Whirlpool Dishwasher Screen
12PUMP&MOTOR
13WPW10300599 Whirlpool Dishwasher Sump Tab
148533949 Whirlpool Dishwasher Nut
15WPW10348269 Whirlpool Washer Drain Pump
16W11622922 Whirlpool Dishwasher Volute
178269144A Whirlpool Dishwasher Drain Hose
18WPW10239401 Whirlpool Dishwasher Pump Motor
19WP8531018 Whirlpool Dishwasher Washer
218193951A Whirlpool Impeller Assembly
22WP356138 Whirlpool Hose Clamp
23WPW10705575 Whirlpool Dishwasher Sensor
24WPW10334457 Whirlpool Dishwasher Capacitor
