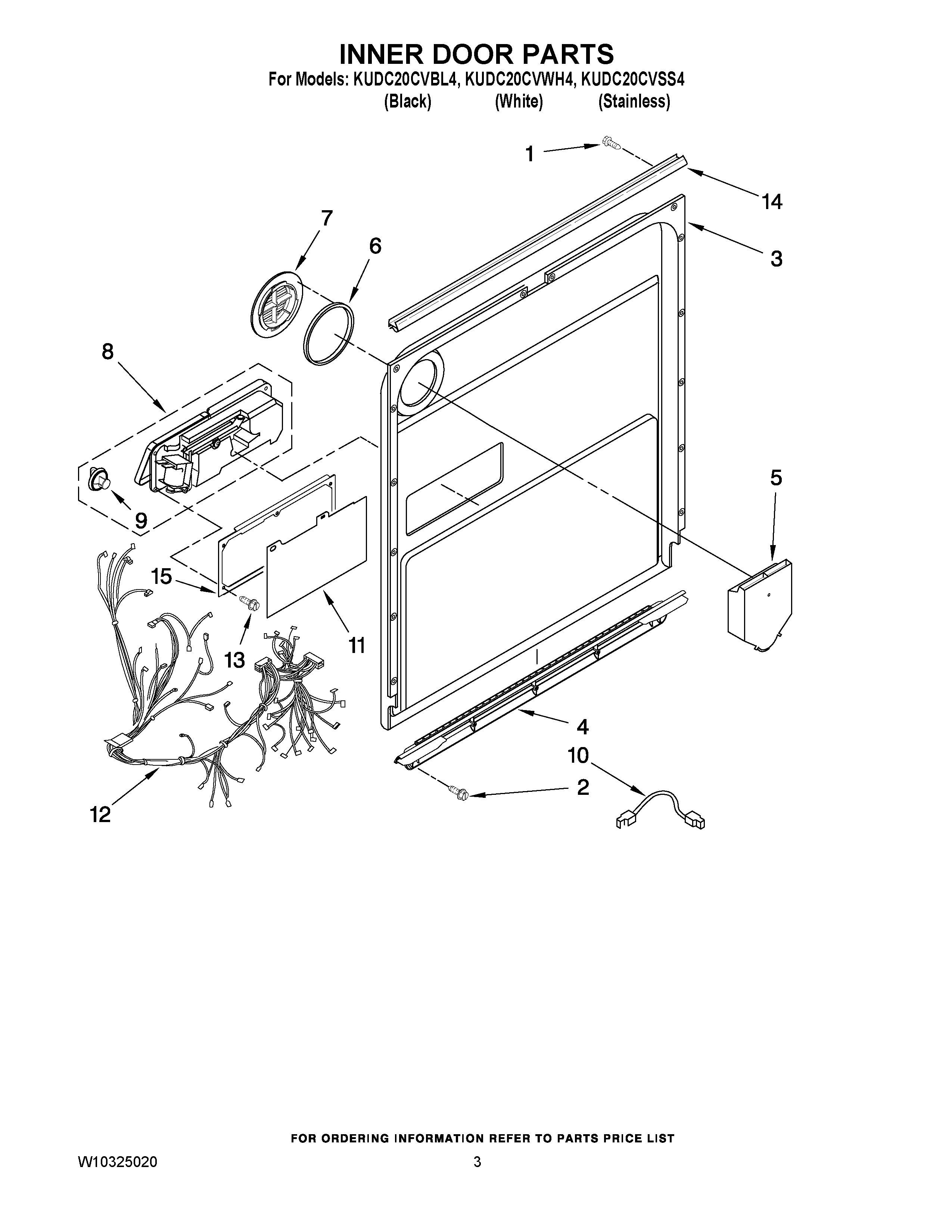

KUDC20CVBL4 03 – INNER DOOR PARTSadmin2025-04-26T13:01:57+00:00KUDC20CVBL4 03 – INNER DOOR PARTS ProductsPositionProduct1WPW10348409 Whirlpool Screw2W11631670 Whirlpool Screw3INNER DOOR MASTIC ASSEMBLY (ALSO ORDER ITEM 6)4WPW10077883 Whirlpool Dishwasher Air Inlet5WP8572611 Whirlpool Air Duct Assembly6WP8269259 Whirlpool Air Vent Gasket7WPW10077877 Whirlpool Air Vent Deflector8WPW10195175 Whirlpool Dishwasher Detergent Dispenser9WPW10077881 Whirlpool Dispenser Cap10Harness, Vent Motor11WP8531865 Whirlpool Dishwasher Door Shield12WPW10413098 Whirlpool Dishwasher Wire Harness13WPW10177098 Whirlpool Dishwasher Screw14WP8535660 Whirlpool Dishwasher Seal15WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
