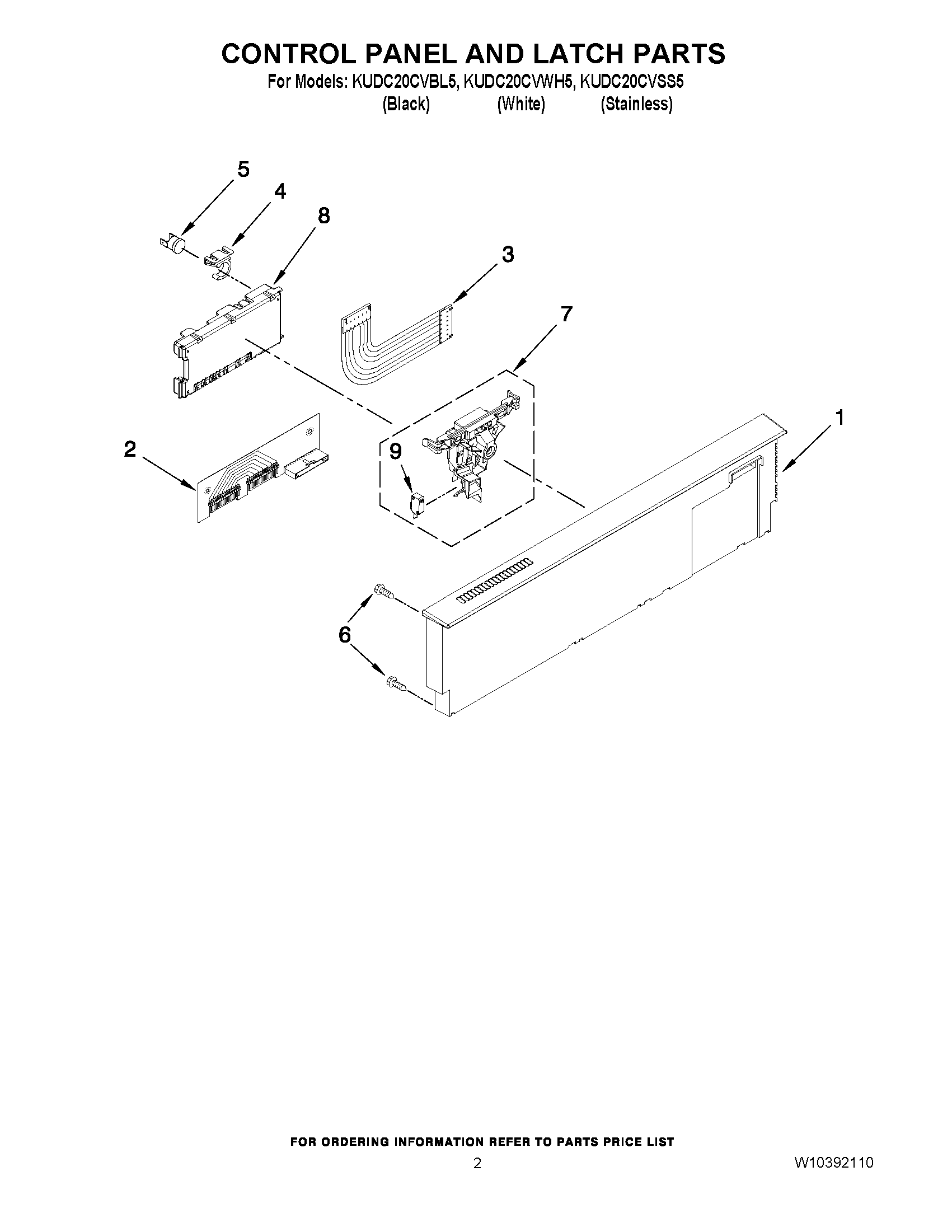

KUDC20CVBL5 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASM. (WHITE)
1	WP8572349 Whirlpool Dishwasher Control Panel
1	WPW10084124 Whirlpool Dishwasher Console
2	WP8531873 Whirlpool Dishwasher Control Board
3	CABLE-RIBBON
4	Clip, BI-Metal
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WPW10348409 Whirlpool Screw
7	WPW10404412 Whirlpool Door Latch
8	WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
9	SWITCH, DOOR
